the t.mix xmix 802 USB

Start 360°

8-Kanaals Mengtafel

4 XLR-microfooningangen / Line-ingangen
Fantoomvoeding: 48 V
3-Bands EQ
2x 6,3 mm Stereo Jack-ingang
Master-uitgang via 2x XLR en 2x 6,3 mm Jack
CTRL. Room Output
Extra ingang via RCA (2 Track in/out)
Afzonderlijk instelbare koptelefoonuitgang
USB-aansluiting
1 AUX-uitgang
Afmetingen (B x D x H): 265 x 100 x 340 mm
Gewicht: 3,2 kg
Bijpassende case: art. 435039 (niet bij de levering inbegrepen)
Bijpassende tas: art. 481185 (niet bij de levering inbegrepen)

30 dagen Money-back garantie

Drie jaar Thomann garantie

Leverbaar sinds December 2017
artikelnummer 422790
verkoopseenheid 1 stuk
Parallel usable Channels 6
Mic Ins 4
Stereo Ins 2
Master Out XLR
Number of Pre Aux max. 1
PC Interface USB-B
Multitrack Recording No
USB/SD Direct Record No
PFL Yes
Effect Processor 0
USB Play No
Bluetooth Play No
Foot Switch No
Matrix Mixer No
Zones 0
19" Rackmount No
Width 265 mm
Depth 340 mm
altezza 100 mm
Height 100 mm
Weight 3,2 kg
Simultaneous channels 6
Mic-In 4
Mono Line Ins 6
Mono Line-in 6
Stereo-In 2
Hi-Z Input 0
Phantom Power 48V
Aux Ways 2
max. Pre Aux Channels 1
Audio Interface Input 2
Interface Input 2
Audio Interface Output 2
Interface Output 2
USB/SD Direct Recording No
Rec Out (Analog) Yes
Low Cut Yes
Panorama Yes
FX Processor 0
Lamp Connector No
Lamp connection No
Footswitch No
Bag No
Rackmount No

Productvariaties

136

the t.mix xmix 802 USB

the t.mix xmix 802 USB 8-Kanaals Mengtafel * 4 XLR-microfooningangen / Line-ingangen * Fantoomvoeding: 48 V * 3-Bands EQ...

€ 145

naar het product

209

the t.mix xmix 1402 FXMP USB

the t.mix xmix 1402 FXMP USB 14-kanaals mixer * Met ingebouwde FX processor en USB/SD digital player * 8 XLR microfoon i...

€ 198

naar het product

147

the t.mix xmix 1202 FX USB

the t.mix xmix 1202 FX USB 12-kanaals mixer * Met ingebouwde FX processor * 6 XLR microfoon ingangen / line ingangen * 4...

€ 169

naar het product

177

the t.mix xmix 1202 FXMP USB

the t.mix xmix 1202 FXMP USB 12-Kanaals Mengpaneel * Met ingebouwde FX-processor en USB/SD digital player * 6 XLR Microf...

€ 195

naar het product

the t.mix xmix 1402 USB

the t.mix xmix 1402 USB 14-kanaals mixer * 8 XLR microfoon ingangen / line ingangen * 48 V fantoomvoeding * 3-band EQ en...

€ 169

naar het product

the t.mix xmix 1202 USB

the t.mix xmix 1202 USB 12-kanaals mixer * 6 XLR microfoon ingangen / line ingangen * 48 V fantoomvoeding * 3-bands EQ e...

€ 159

naar het product

113

the t.mix xmix 1002 FX USB

the t.mix xmix 1002 FX USB 10-Kanaals Mengpaneel * Met ingebouwde FX-processor * 4 XLR-microfooningangen / Line-ingangen...

€ 159

naar het product

B-Stock vanaf € 135 beschikbaar

€ 145

Alle prijzen incl. btw

Best seller rang

in Analoge mixers

Bundels & aanbiedingen

the t.mix xmix 802 USB B-Stock
Kan lichte gebruikssporen bevatten

€ 135

the t.mix xmix 802 USB Case Bundle

€ 195

Miniature analogue mixer

The t.mix xmix 802 USB allows analogue audio aficionados to get started straight away: This flexible miniature mixer features four XLR/cinch inputs, two stereo 6.3mm inputs, and a stereo cinch in, as well as a USB connection for backing tracks and recording. Unlike comparable compact mixers, the outputs on the xmix 802 come in both dual XLR and dual 6.3mm line formats. There is also a dedicated headphone out and two AUX channels, one specifically for use with external effect devices. Anyone who prefers to have the effect section integrated into their mixing desk might prefer the larger cousin of the 802, the t.mix xmix 1002 FX USB. However, fans of unaltered audio who like working with sounds that are ready to go will find that the 802 is an almost self-explanatory mixing tool for live gigs and studio sessions.

Faders on the t.mix xmix 802 USB mixing desk

Signal routing made easy

As soon as the pair of master outs on the rear of the device have been hooked up – and it's been switched on – then users will have already done the hard part, so comprehensible and accessible are the controls on the main panel of the t.mix xmix 802 USB. Downstream from the gain itself, all four XLR/line-in channels have their own three-band EQ, and the rest of the path on the way to the output can be more or less summed up as "channel fader on" and "master on": Each line-in signal can be routed to an AUX path via the Master AUX Send controls, and the AUX path can be set to pre or post-fader, for example to create a monitor mix. The other AUX path is actually labelled FX, as it's intended for use with external effects: For example, a vocal reverb can be patched in, have its output connected back up to the 6.3mm FX return input jacks, and the result sent to the sum using the FX Return To Mix dial.

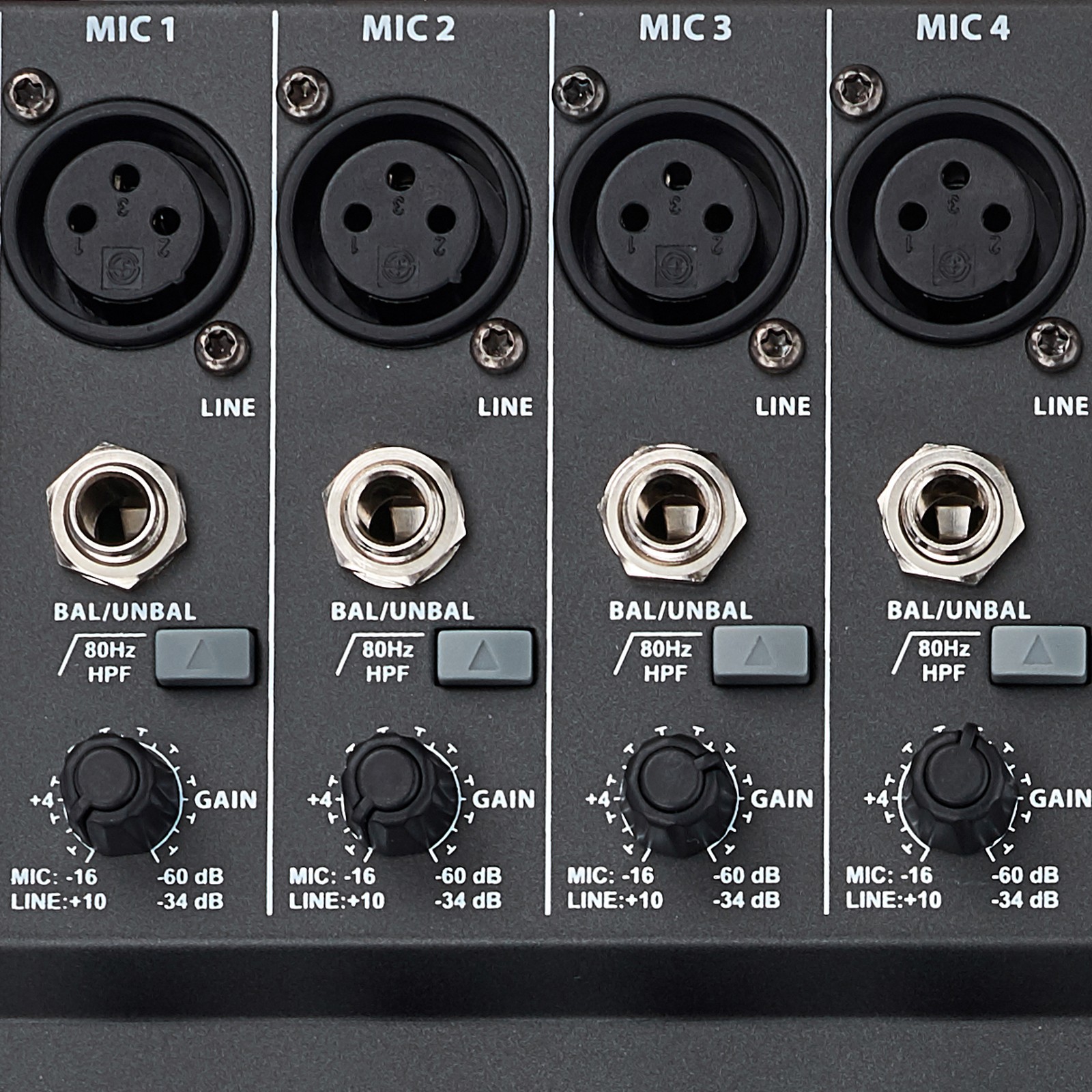

XLR sockets and line-in on the t.mix xmix 802 USB mixing desk

Suitable for studio and stage

The number of inputs on the compact but flexible the t.mix xmix 802 USB makes it ideally suited to singer-songwriters, duos, and three-piece bands – anyone with a preference for simple controls and an analogue workflow. The mixer can be used in smaller and larger locations alike, depending on the speakers that are connected. Sales reps running stands at a trade fair, for instance, get multiple easy-to-use channels via the device's stereo inputs, with adjustable treble and bass for background music. Hobby studio users can connect their monitors to the master outputs while also recording digitally via the USB socket, which DJs can use in a similar way to patch music in. And musicians who like to hold their recording sessions at home can use a set of headphones with the phones jack provided for this very purpose.

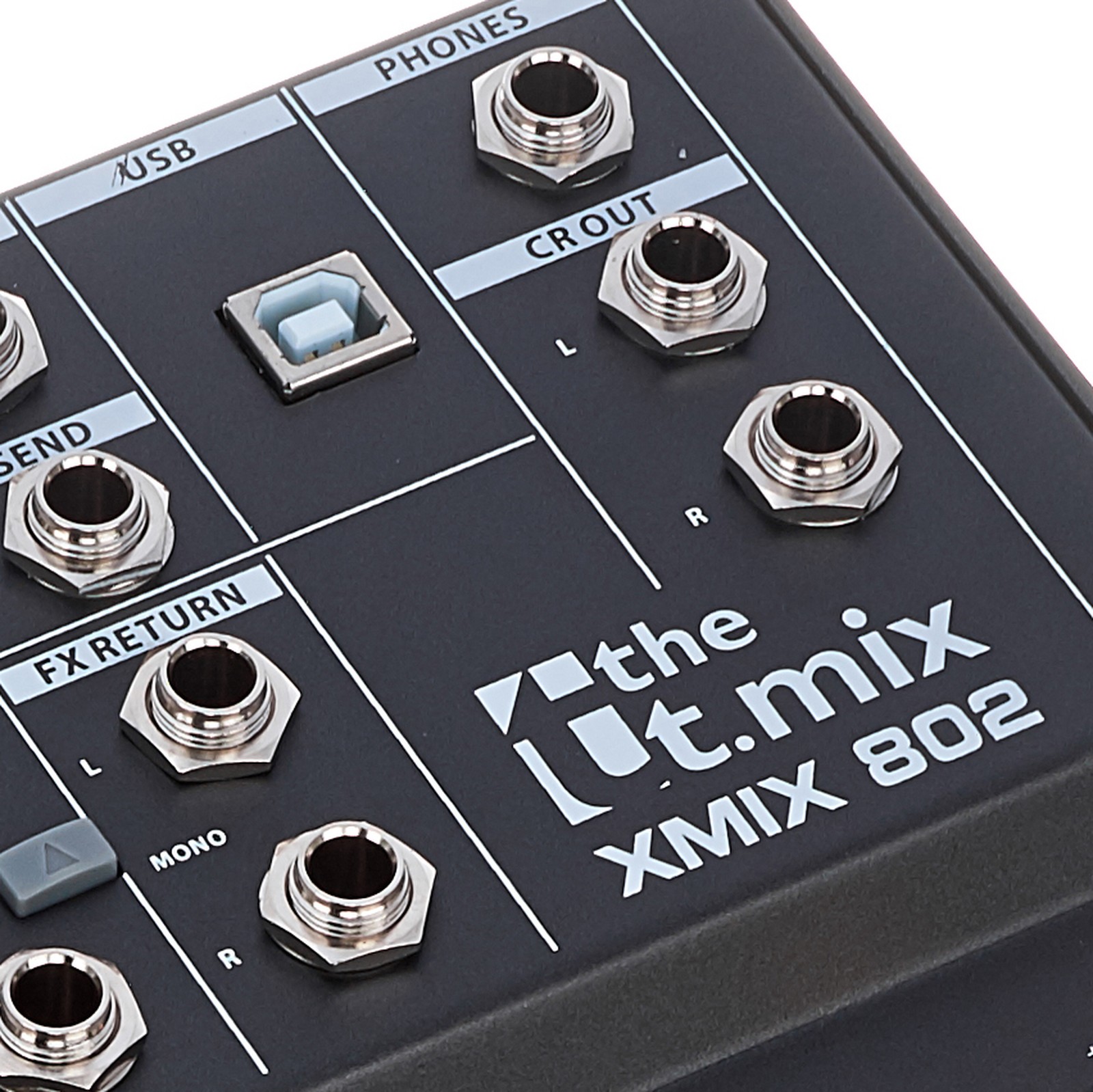

Headphone and effect sockets on the the t.mix xmix 802 USB mixing desk

About the t.mix

Thomann’s in-house brand "the t.mix" has been an integral brand of its product range since 2000. This brand offers a wide selection of different mixing desks, passive PA systems, and various accessories, proving that quality, reliability, and an attractive price tag can go hand in hand. Whether users require a DJ mixer, a compact mixing desk for the rehearsal room, or a passive PA system for a youth club, the t.mix has a convincing and affordable solution for every application.

Record, perform, and more

Wherever the performance or the recording is taking place, the t.mix xmix 802 USB is quick and easy to install. Because phantom power can be activated on every one of the XLR outs at once, condenser mics and active DI boxes can also be included in the setup. When it comes to providing sound for halls or studio monitors, users can simply add a set of line cables with XLR connectors or 6.3mm jacks; for monitoring purposes via speakers or headphones, the 802 has the "Phones" and "CR Out" sockets, the volume of which is adjusted by one shared control. Even vocal reverb can be inserted into the AUX mix, simply by turning up the FX Return To AUX dial.
