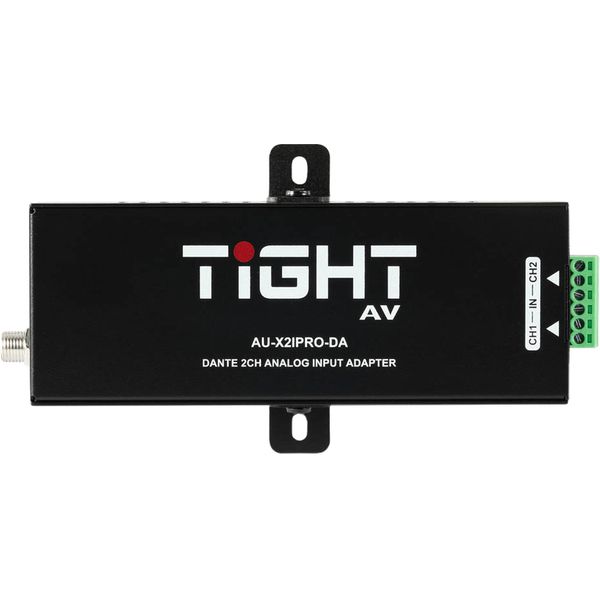

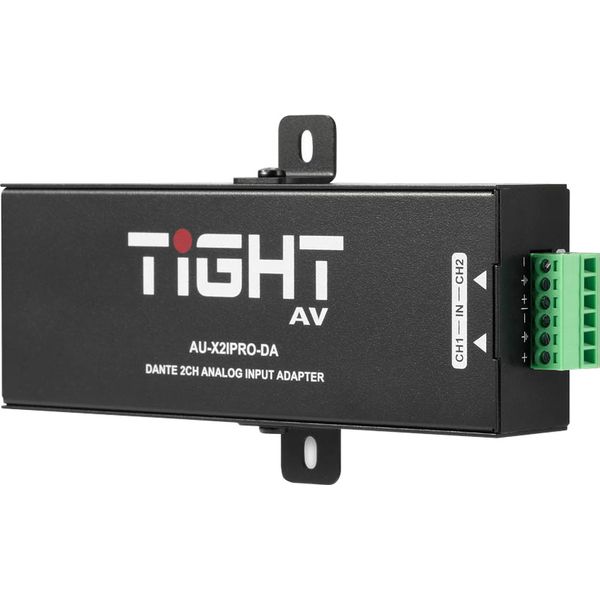

Dante 2-Channel Input Adapter

Converts analogue line signals and feeds them into a Dante network
With original Audinate Dante Ultimo chip
96 kHz / 24 Bit

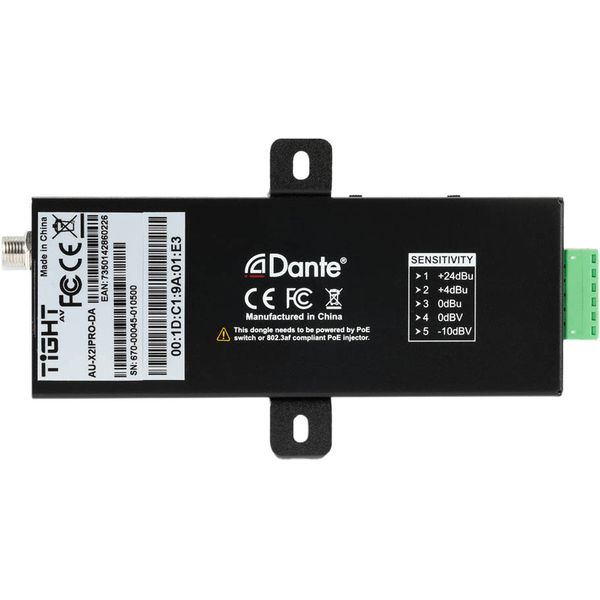

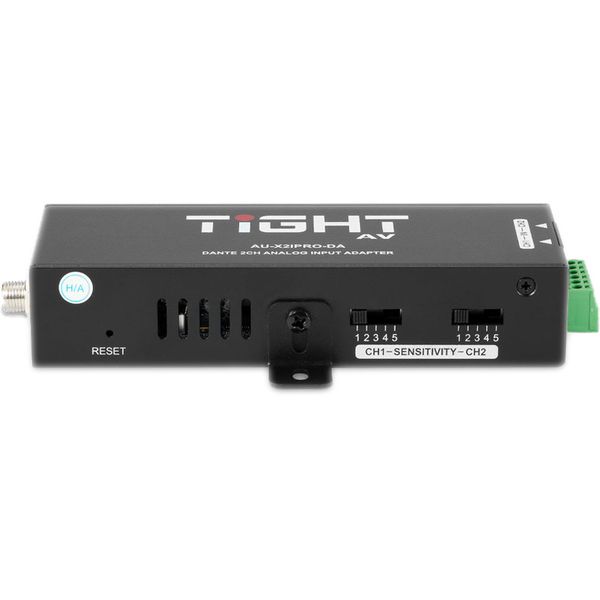

Selectable maximum input level: +18 dBu / +4 dBu / 0 dBu / 0 dBV / -10 dBV
Frequency range: 20 – 20,000 Hz (-/+0,5 dB)
Imepdance: 7.2 kOhm (balanced), 3.6 kOhm (unbalanced)
Dynamic range: >100 dB
Signal-to-noise ratio: 100 dB
Total harmonic distortion: <0,01 % @ + 4 dBu
Supports AES67 RTP
Easy installation thanks to Phoenix analogue connections
RJ45 metal plug with built-in LEDs
Robust metal housing

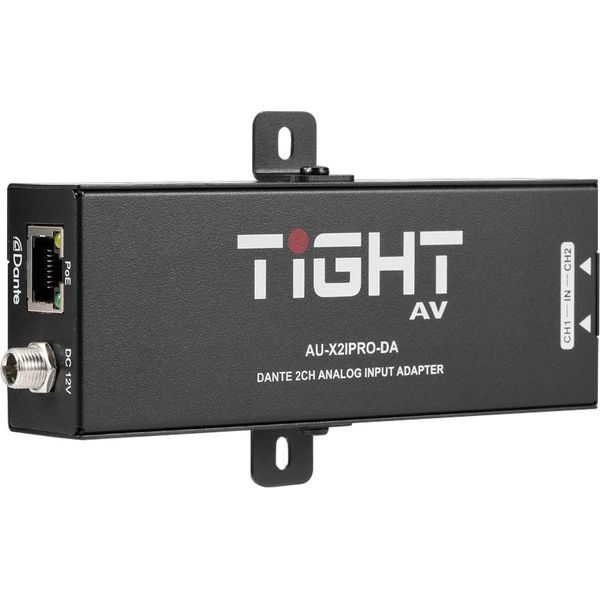

Requires POE (Power over Ethernet) for operation (Class 1 802.3af PoE) or 12V DC power supply (not included)
Dimensions (W x H x D): 128 × 26 × 48 mm
Weight: 0.195 kg

30 dagen Money-back garantie

Drie jaar Thomann garantie

artikelnummer 624291
verkoopseenheid 1 stuk
Amount Of Channels 2
AD Conversion Yes
DA Conversion No
Max. Resolution 24 bit
Max. sampling rate 96 kHz
S/PDIF Connecor No
AES/EBU Connector No
ADAT No
Word clock No
Number of analog inputs 2
Number of Analog Outputs 0
Headphone connection No
Special Features Dante

€ 199
