Telycam Vision+ 4KZ Bk

Compact 4K box camera with auto-framing and 20x zoom

• Versatile video outputs: NDI®HX3/HDMI/USB 2.0

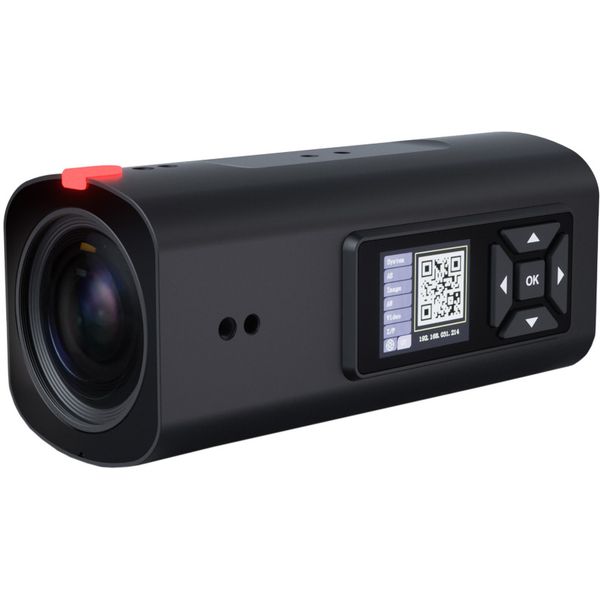

• Side-mounted control panel with display for image settings & IP address
• CROP output: supports different image sections in parallel (e.g. long shot and close-up)
• Dual Smart Tracking Modes: When framing, for example, the camera recognises two people as a group and automatically adjusts the image section so that both always remain centred in the image
• In auto-tracking mode, on the other hand, the image section specifically follows a single person and keeps them continuously in focus
• Perfect colour match for multi-camera productions (same lens and sensor as Vision+KN 20X PTZ camera)
• Local backup via microSD card
• Tally light
• Audio with 3.5 mm line-in and mini XLR with phantom power
• SSDP for convenient network setup
• Colour: Black

Technical specifications:

• 1/1.8" 9MP UHD CMOS Sensor
• 20x optical zoom
• Lens: f = 6.25 ~ 112.5 mm, F1,58 ~ F3,96
• Horizontal aperture angle: 61° (Wide) ~ 3.5° (Tele)
• Vertical angle of view (AOV): 34.1° ~ 1.9°
• Diagonal angle of view: 60.7° ~ 3.5°
• Minimum Focus distance: 1.0 m
• S/N Ratio: = 50 dB
• Noise reduction: 2D & 3D
• Minimum brightness: 0.5 lux (50 IRE Max AGC, 1/30, F1.8)
• White balance: Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Colour Temperature
• Exposure: Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
• Anti-Flicker: OFF, 50Hz, 60Hz
• Image Flip/Mirroring: supported
• Focus/Iris/Electronic-shutter: Auto/Manual
• Gamma: supported
• Backlight compensation: supported
• Video-Format HDMI2.0: 3840 x 2160 P60/59.94/50/30/29.97/25, 1920 x 1080 P60/59.94/50/30/29.97/25/24/23.98, 1920 x 1080 I60/59.94/50, 1280 x 720 P60/59.94/50/30/29.97/25
• Video-Format NDI HX3: Main Stream: 3840 x 2160 P15~30, 1920 x 1080 P15~60, 1280 x 720 P15~60, 1024 x 576 P15~60, Sub Stream (CROP): 1920 x 1080 P15~60, 1280 x 720 P15~60, 1024 x 576 P15~60, 640 x 360 P15~60
• USB Type-C: , NV12:1920 x 1080 P5, 1280 x 720 P10, 1024 x 576 P15, 800 x 448 PP30/25
• YUYV: 1920 x 1080 P5, 1280 x 720 P10, 1024 x 576 P15, 800 x 448 P20/15
• MJPG: 1080 P60/50/30/25, 1280 x 720 P60/50/30/25, 1024 x 576 P60/50/30/25, 800 x 448 P60/50/30/25
• IP-Streaming Video Encoding: H.264/H.265
• Bitrate control: Variable bitrate (VBR), Constant bitrate (CBR)
• Bitrate range: 1024 ~ 61440 Kbps
• Protocols: NDI HX3, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, NTP, RTP Multicast, WebRTC

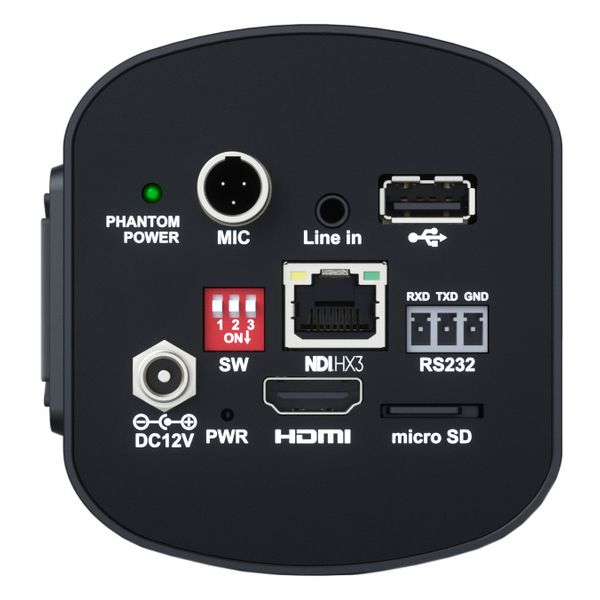

• I/O Interface: Control Port: RS232, RJ45
• Video Port: NDI HX3, HDMI2.0, USB Type-C
• Tally: supported
• POE+: supported
• Input voltage: DC12V
• POE+ (IEEE802.3bt)
• Tolerated temperature range during operation: - 10 ~ 50
• Tolerated humidity during operation: 80%
• Dimensions: 82 x 85.3 x 186.5 mm
• Weight: 0.95 kg
