Active 2 Way Full-Range Speaker

  • Speakers: 1 x 12" woofer, 1 x 1" tweeter
  • Class-D amplifier
  • Power 1000 W Peak
  • Frequency range: 50 - 20,000 Hz
  • Max. SPL: 127 dB
  • Dispersion pattern (H x V): 90° x 60°
  • Built-in 3-channel mixer with mic/line inputs and high & low EQ controls
  • Microphone/line inputs: 2 x XLR/6.3 mm jack combo, 1 x 3.5 mm stereo mini jack
  • 2x USB wireless port
  • 1x XLR Link Out
  • High-resolution DSP with 24-bit converters and FIR filters
  • 5 DSP Presets: Music, Live, DJ, Monitor, Speech
  • Bluetooth 5.0 audio interface with stereo link (TWS)
  • Colour LC display
  • Plastic housing with 2 ergonomic carrying handles and monitor slope
  • 35 mm speaker stand flange mount
  • 4x M10 rigging points
  • Dimensions (W x H x D): 364 x 617 x 346 mm
  • Weight: 16.0 kg
  • Colour: Black
  • Leverbaar sinds November 2023
  • artikelnummer 577977
  • verkoopseenheid 1 stuk
  • Power (Manufacturers Specs) 1000 W
  • Bass Speaker in Inch 12"
  • Ways 2-Way
  • Colour Black
  • Weight 16 kg
  • Housing Material Plastic
  • Analog Inputs 3
  • Microphone Input 2
  • Line Out XLR
  • Media Player BT, USB
  • Remote Control No
  • Effects No
  • Low Cut Yes
  • Monitor Angle Yes
  • Width 364 mm
  • Depth 346 mm
  • Sound Pressure in dB 127 dB
  • Height 617 mm
  • Number of HT Speakers 1
  • Number of HT Speaker 1
  • Number of HT-Speaker 1
  • HT Speaker in Inch 1
  • Number of Midrange Speaker 0
  • Midrange Speaker in Inch without
  • Number of Bass Speakers 1
  • Number of Bass Speaker 1
  • Accu No
  • Stand Flange 35 mm
  • Flyable M10
  • Construction Type Standard
  • Construction Standard
  • Using for PA
  • Mounting Point M10
  • Line Input Yes
  • EQ per Channel Yes
  • Main EQ Yes
  • Master EQ Yes
  • Voice Assistant No
  • Horizontal Beam Angle 90 °
  • Vertical Beam Angle 70 °
  • Handheld / Headset No
  • Wireless Mic Handhleld / Headset No
  • Frequency Range (-10dB) from 50 Hz
  • Frequency Range (-10dB) to 20000 Hz
  • Beam Angle (Hor) 90 °
  • Active Cooler No
€ 429
Alle prijzen incl. btw
Direct leverbaar
1

A multifunctional sound package

The Proel DIVA12A stands out in the crowded mid-price segment of active full-range speakers with its powerful sound performance, thanks to a 12" woofer, a Class D power amplifier, and an FIR filter. An easy-to-use mixer with sound presets is also an integral part of the package. And this speaker can be used for more than just audience-facing sound reinforcement: A quick glance at the housing reveals both its shape - a practical monitor wedge - and its flexible fittings, as it can also be elevated or flown. This makes the DIVA12A just as multifunctional as the slightly more expensive DIVA15A, which has an even larger woofer. Flexibility is the watchword when it comes to connectivity, too, with Bluetooth for mobile devices, and USB ports for performers who prefer wireless microphones on stage. The ports can be quickly fitted with the necessary wireless devices, which are widely available at practically every price point.

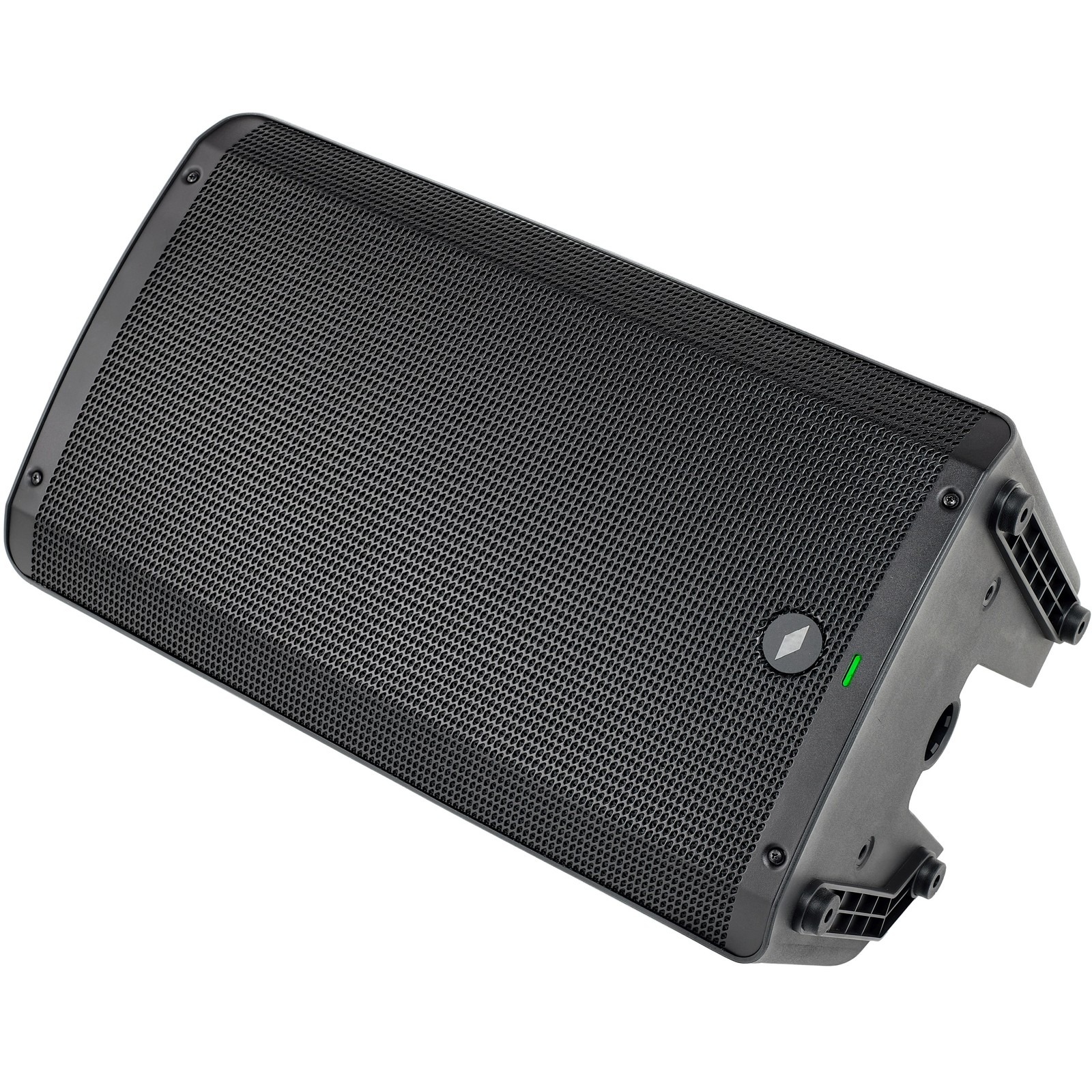

Proel DIVA12A active PA speaker with monitor function

Perfect preset sound

The 12" woofer, with its 2" voice coil, delivers a rich, rounded bass with a maximum peak output of 1000W and 127dB SPL. The treble is provided by a 1" compression driver, with a 1.35" voice coil and titanium cone. Before all that comes into play, though, a DSP with 24-bit conversion and FIR filters optimises the sound, which is fed directly into the integrated mixer. The mixer itself has two combination inputs, suitable for dynamic microphones, Proel's own range of wireless microphones, and guitar or line signals – as well as another input for media using either Bluetooth or the mini-jack socket. Whatever the source, it couldn't be easier to find the optimum sound settings; the one-button control and the full-colour display make accessing the comprehensive range of sound presets child's play. And with four M10 flying points integrated into the top and bottom of the DIVA12A's sturdy polypropylene housing, the speaker is soon prepped for take-off. Equally, it can be safely carried using its ergonomically shaped handles or easily placed on a suitable stand.

A manageable diva

The Proel DIVA12A's one-button operation makes it a great option for beginners: Five sound presets – individually tailored for music, live acts, powerful DJ beats, speech, and monitoring – also simplify handling, making the Proel an interesting option for the rental market, too. Smaller bands can connect their full complement of dynamic microphones, guitars, and line signals, and comedians, for example, can play musical interludes from their smartphones via Bluetooth, with a range of up to 15 metres from the stage. Touring solo artists will benefit not just from the DIVA12A's all-round flexibility, but also from the unit's ergonomically shaped transport handles. Operators of multifunctional venues, on the other hand, get a speaker that's suitable for both FOH sound reinforcement and on-stage monitoring. And everyone from fitness trainers to presenters and preachers can connect one of the many widely-available and inexpensive wireless microphones to the Proel's USB ports.

Carrying handle on the top panel of the Proel DIVA12A

About Proel

The Italian company Proel designs and manufactures durable and sustainable event technology across the fields of sound, video, lighting, and stage equipment for the global market. Proel products aim to combine affordability with user-friendly operation, ensuring the technology remains a supporting element rather than overshadowing the artistic experience. Every aspect of Proel’s process, from research and development to production, takes place in Italy, reflecting a commitment to quality and innovation. Their equipment is trusted worldwide for its reliable performance and simplicity.

Connections with display and controls on the back of the Proel DIVA12A

Bluetooth stereo and wireless mics

All Proel DIVA speakers are capable of playing Bluetooth media in stereo – thanks to the automatic Stereo Link button. By setting up two speakers, and connecting the main out of the first speaker to one of the second speaker's line inputs via an XLR cable (sold separately), both speakers will play the same source: users only have to select the same sound settings on both speakers. Similarly, if a venue already has an external mixing console, its left and right main outs can be directly wired into one of each speaker's line inputs, for effortless stereo sound reinforcement. For wireless transmission – for instance with the Proel U24H handheld mics or the Proel U24B headsets, useful accessories available for surprisingly low prices – the devices' receiver modules are simply plugged into the speaker's USB sockets, quickly giving bands and entertainers two wireless mics.

2 Klantenbeoordelingen

5 / 5

features

geluid

afwerking

2 Recensies

google translate fr
Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.
C
Proel Diva12A
Chopine73 02.09.2024
Très bonne enceinte, pratique et puissante, un très bon son.
features
geluid
afwerking
3
0
Evaluatie melden

Evaluatie melden

google translate de
Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.
K
Echt nicht schlecht
KeineAhnungVonNix 25.09.2025
Ich nutze zwei dieser Boxen im DJ Einsatz, bzw. als Ersatz zu meinen guten FBT Serien. Klanglich gibt es überhaupt nichts auszusetzen. Ehrlich gesagt klingt die Box sogar hervorragend, insbesondere mit Subunterstützung. Aber auch Fullrange bei kleineren Feiern in kleineren Räumen kann diese Box überzeugen, insbesondere, wenn massiver Bass vielleicht gar nicht gewünscht ist. Die Box kann echt ganz gut Bass für 12 Zoll, aber natürlich nicht abgrundtief. Die erreichbare Lautstärke ist sehr gut. Auch die Einstellmöglichkeiten am DSP sind sehr in Ordnung, wenn mir auch einen kleinen Tick die Möglichkeit fehlt, einen Highpass Filter zu setzen.

An der Optik und dem Handling gibt es ebenfalls nichts auszusetzen. Sieht wertig aus, ist gut verarbeitet und lässt sich gut tragen. Sehr gut finde ich auch die Feststellschraube für das arretieren am Stativ. Viele Hersteller lassen diese Kleinigkeit weg. Ich finde das aber sinnvoll, da es den zusätzlichen Einsatz von K&M Ringlock spart.

Was gibt es zu meckern?
Liebes Team von Proel, nehmt Ihr Superkleber für den Aufkleber, der bei Auslieferung am Frontgitter dran ist? Den ersten Aufkleber abgezogen und danach am Fluchen gewesen, da ich erst einmal 30 Minuten damit beschäftigt war, die Klebereste am Frontgitter und in den Ritzen zu entfernen. Das muss doch wirklich nicht sein! Nehmt doch bitte anderen Kleber oder lasst diesen Aufkleber ganz weg. Bei der zweiten Box war ich dann schlauer und habe den Aufkleber mit Fön erwärmt. Dann ging das Abziehen auch ohne Klebereste. Nur dafür der eine Stern Abzug in der Verarbeitung.

Fazit:
Man bekommt wirklich eine ganze Menge für sein Geld. Die Box klingt teurer, als sie ist. Ich hatte vor einiger Zeit mal die EV ELX-200 12P. Meiner persönlichen Meinung nach, kann die Proel Diva 12a klanglich damit allemal mithalten, ist aber deutlich günstiger.

Eine eindeutige Kaufempfehlung meinerseits!
