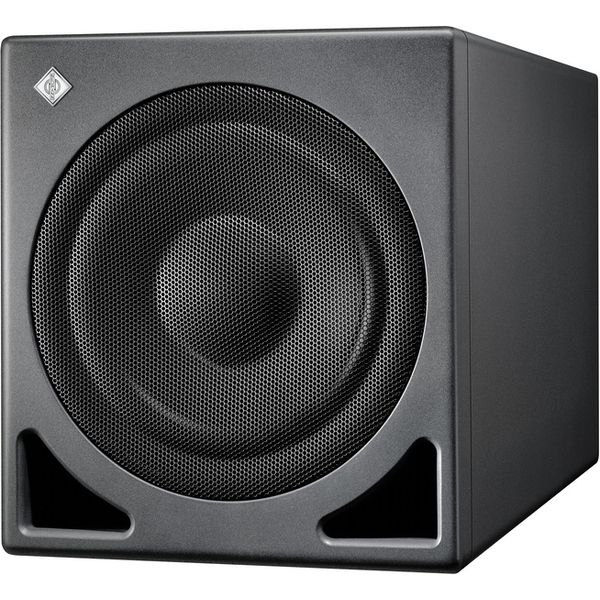

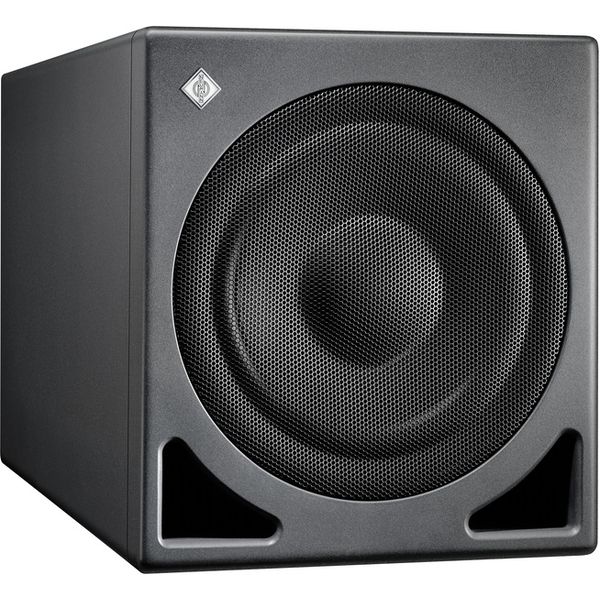

Neumann KH 805 II

Active Subwoofer

• Subwoofer for medium-sized rooms
• With DSP
• Precise bass reproduction as the perfect complement to the mid-range monitor models in the Neumann KH series
• Integrated flexible bass management for stereo systems
• Can be used in surround and immersive setups for LFE playback with external bass management
• Selectable routings: Stereo 80 Hz bass management
• External bass management
• LFE playback up to 120 Hz
• LFE full range

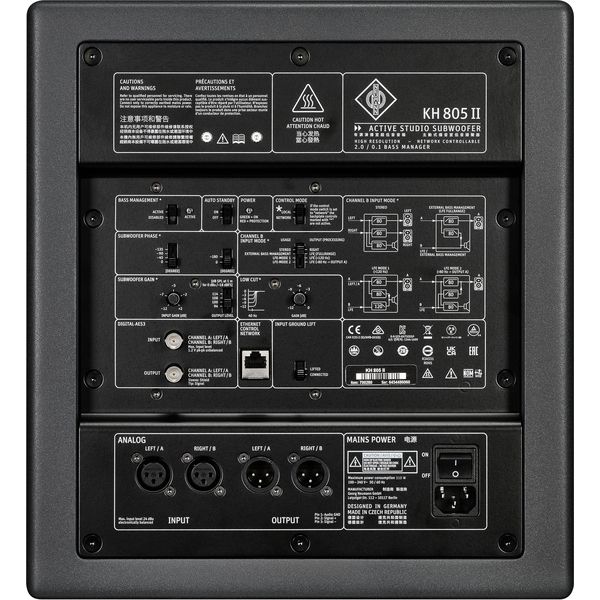

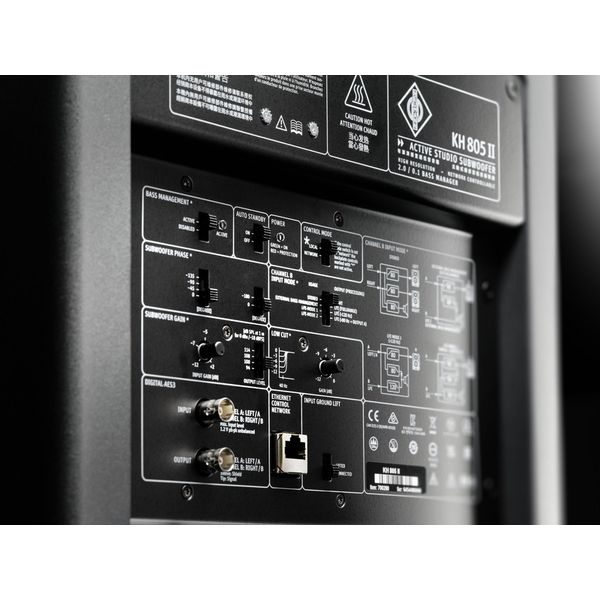

• Flexible analogue and digital connection options
• Bass reflex principle with bass reflex ports at the front
• Optional MA 1 integration of analogue KH Line speakers

Technical data:

• Equipped with 10" long-throw bass driver
• Amplifier output: 222 watts
• Maximum sound pressure level: 110 dB SPL
• Inherent noise: < 20 dB(a) SPL at a distance of 0.1 m
• Frequency response: 18 - 310 Hz (+/- 3 dB)

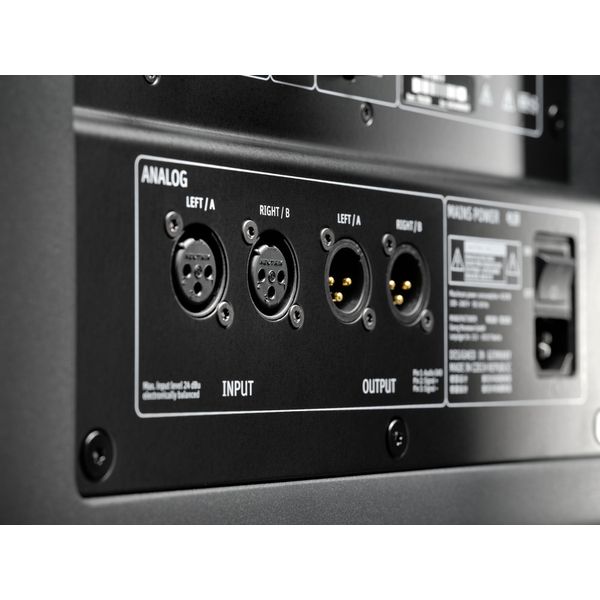

• Analogue inputs: Two balanced XLR
• Analogue outputs: XLR balanced
• Digital input: AES3 / S/PDIF BNC 75 ohm
• Digital output: AES3 / S/PDIF BNC 75 ohm
• Network: RJ45
• Dimensions (H x W x D): 368 x 330 x 645 mm
• Weight: 25.5 kg
