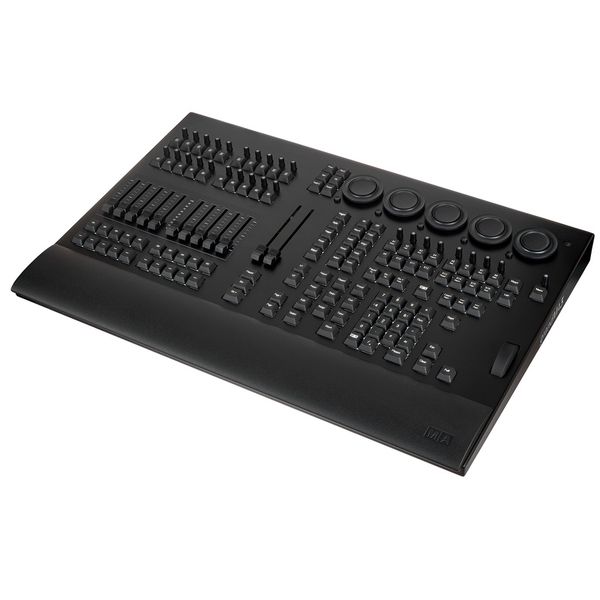

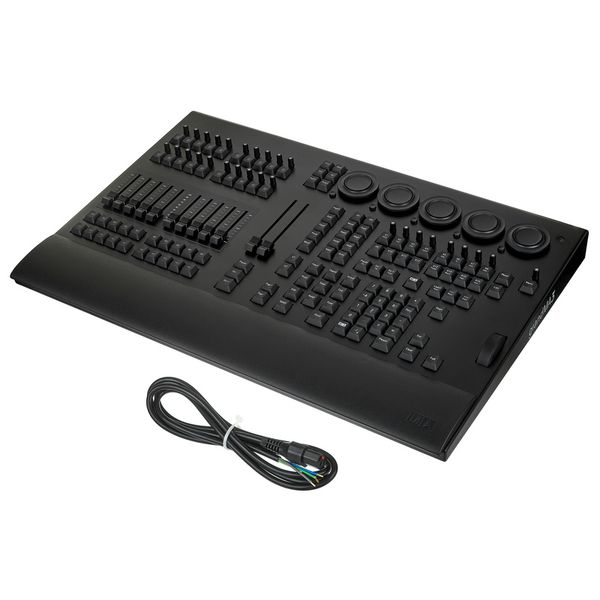

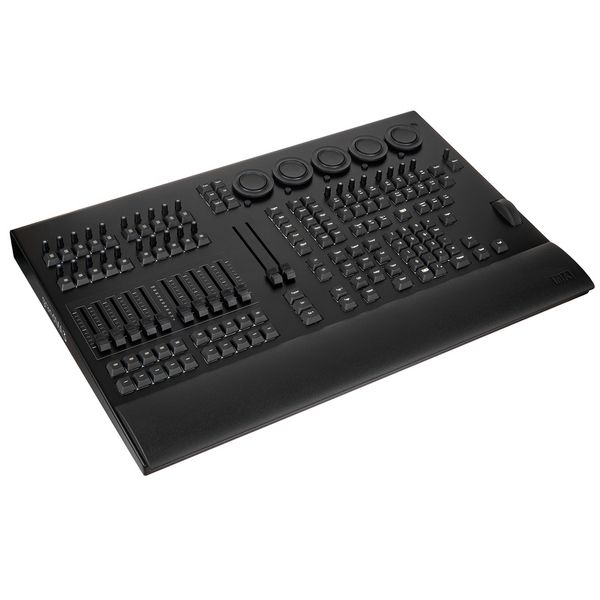

MA Lighting grandMA3 onPC Com Wing XT Demo

Demo Unit

Slight signs of use, full warranty

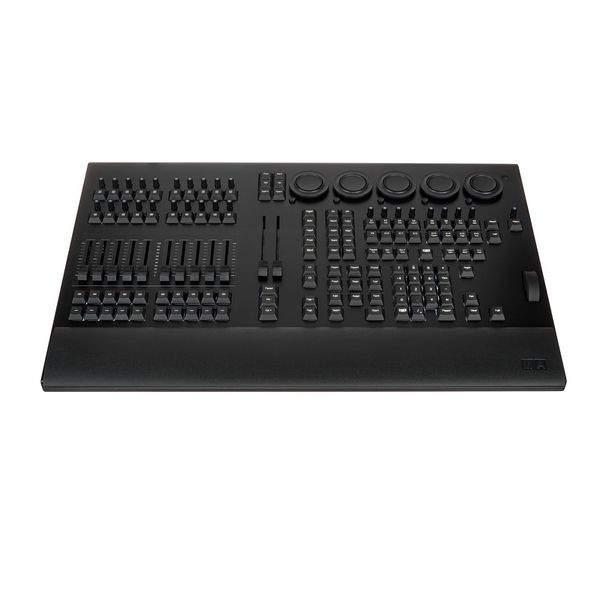

Lighting Console

• Real-time monitoring of up to 4,096 parameters
• MA Motherboard with pre-installed grandMA3 onPC software
• All you need to operate it is a touchscreen (not included).
• Layout of the command section identical to grandMA3 onPC Command Wing
• 29 rotatable RGB backlit encoders

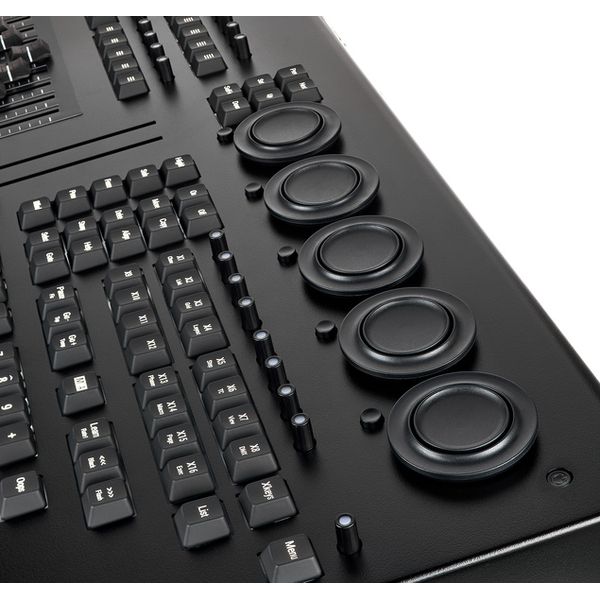

• 5 Dual encoders

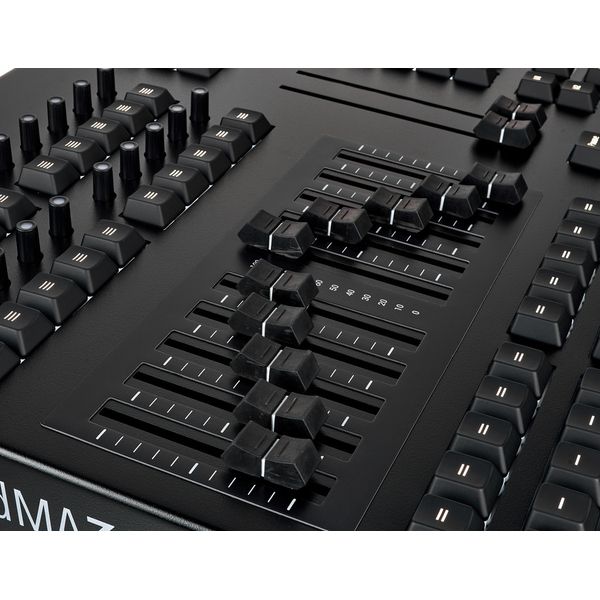

• 10 motorised 60 mm faders
• 40 independent playbacks
• 16 assignable x buttons
• 2 Backlit and motorised A/B 100mm faders
• 1 Level wheel

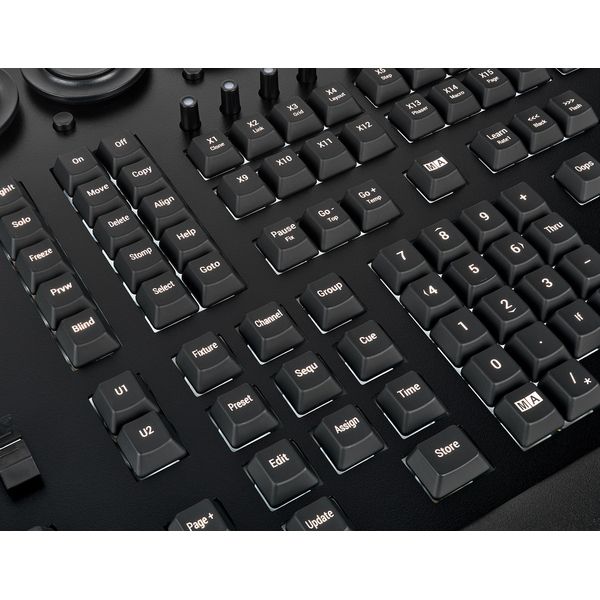

• Individually backlit, dimmable and silent (clickless) buttons
• Power supply: 100 - 240 V ~ 50/60 Hz
• Power: max. 100 VA
• Weight: 12 kg
• Dimensions: 620 x 427 x 112 mm

Note: A grandMA3 onPC system supports a total of up to 4096 parameters

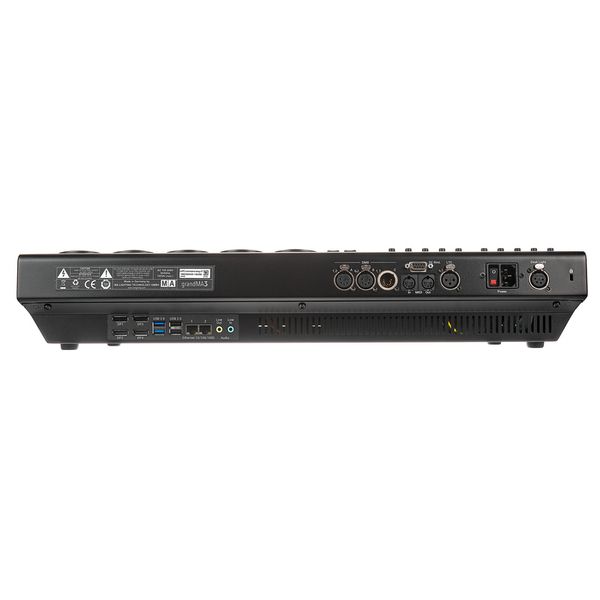

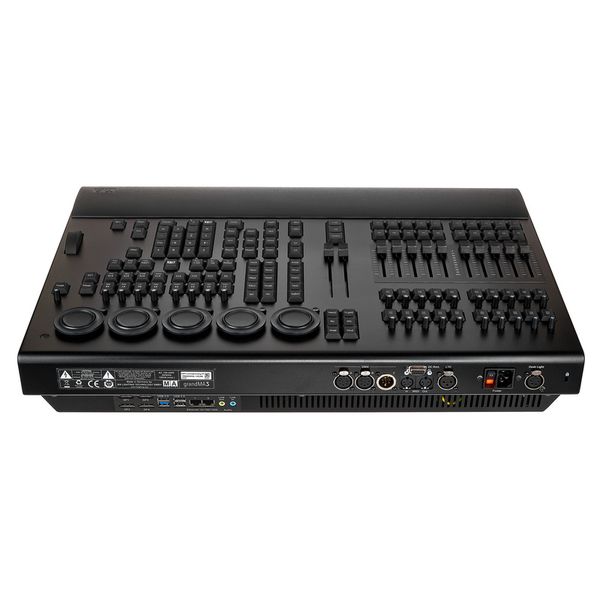

Connections:

• 2x RJ45
• 2x DMX512-A Out (5-pin XLR female)
• 1x DMX512-A In (5-pin XLR male)
• 1x MIDI In (5-pin DIN female)
• 1x MIDI Out (5-pin DIN female)
• 1x Linear Timecode In (3-pin XLR female)
• 1x Audio In (mini-jack 3.5 mm)
• 1x Audio Out (mini-jack 3.5 mm)
• 1x GPI General Purpose Interface (D-SUB DE9 female) for remote control
• 4x DisplayPort 1.2 for external screens
• 2x USB 2.0 (Type A)
• 2x USB 3.0 (Type A)
• 1x LED desk lamp (4-pin XLR female)
• Power input: IEC
