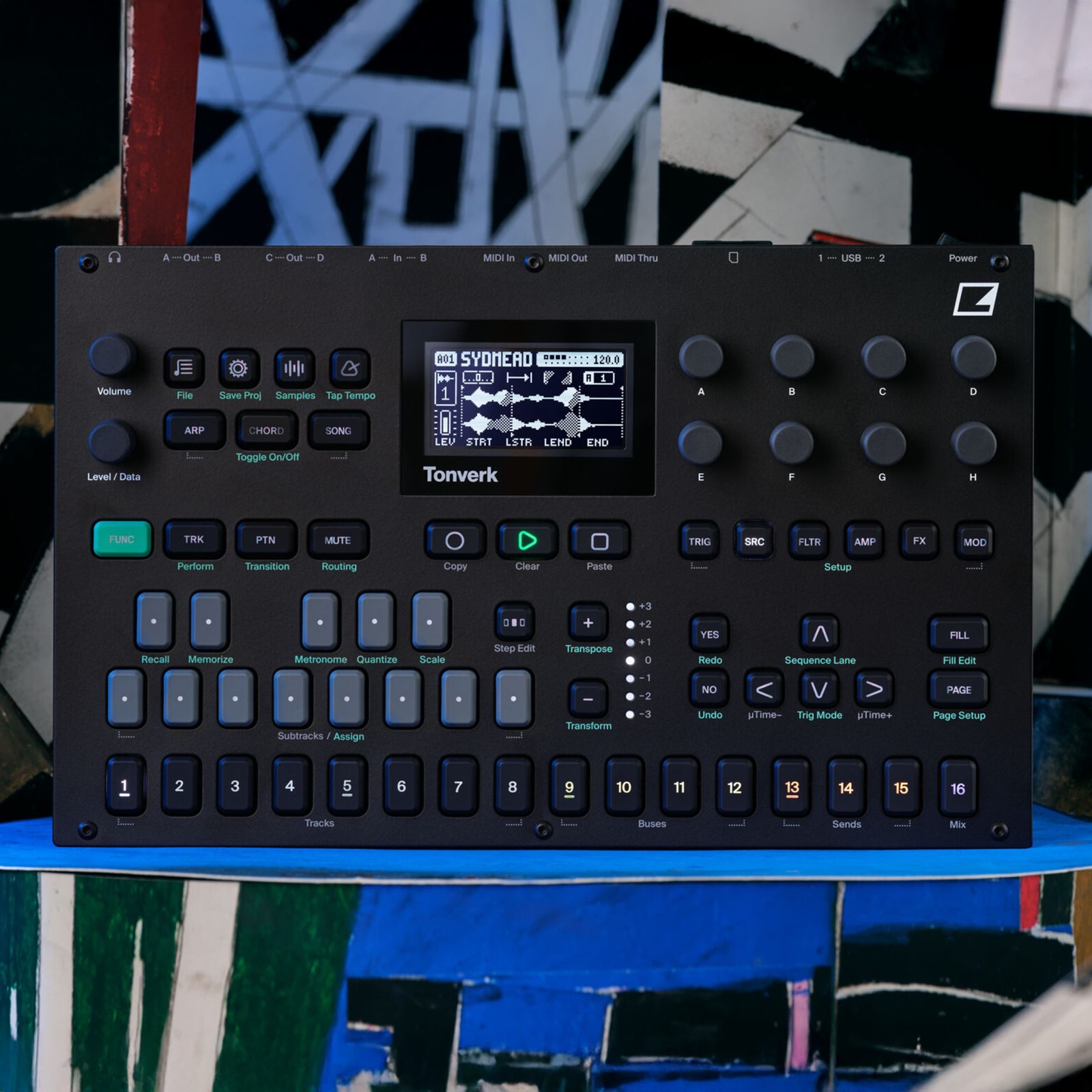

Elektron Tonverk

Polyphonic Performance Sampler

• 8 stereo audio tracks
• All 8 tracks can be used either as audio or MIDI tracks
• 4 bus tracks
• 3 send effect tracks and 1 mix track
• 4 selectable machines per audio track: single player, multi-player sub-tracks or MIDI (also selectable on bus tracks)
• Single Player: polyphonic playback of individual WAV files (mono or stereo)
• Multi Player: Loading and polyphonic playback of multisamples (multiple velocity layers per note)

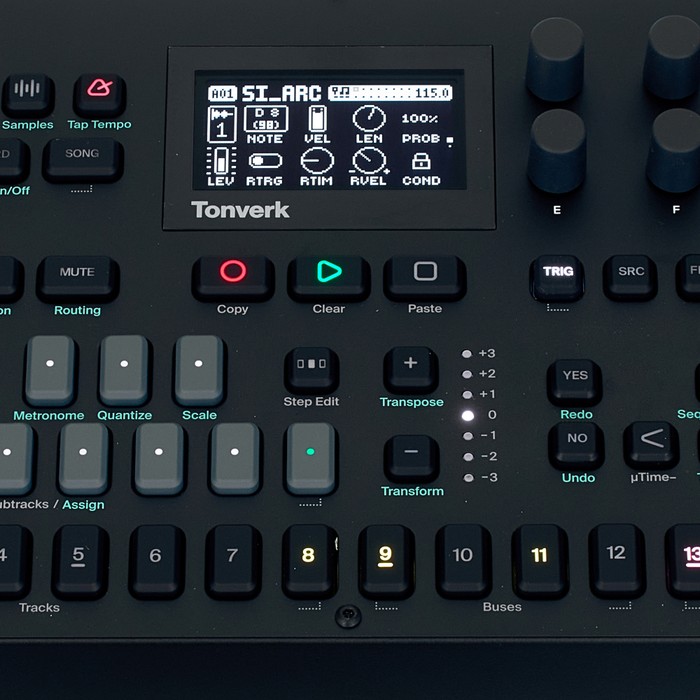

• Subtracks: adds 8 monophonic, multitimbral subtracks to a track – each subtrack with its own sample, sequencer and individual parameter controls
• MIDI: converts the selected track into a MIDI track
• Recorder: for easy audio sampling
• Auto Sampler: automatically creates multisamples from hardware instruments connected via MIDI
• 1 x base width filter per track and sub-track
• 2 assignable LFOs, 2 assignable FX LFOs and assignable modulation envelope per audio track
• 2 assignable LFOs for each bus, send effect and mix track
• Extensive metering options
• MIDI track: 16-voice polyphony per step
• 16 assignable CC controllers and 2 assignable LFOs per track
• 2 different Trig Modes, Keyboard, Chord and Song Mode
• Polyphonic sequencer: up to 256 steps per pattern and track, individual pattern length per track, adjustable clock divider per track, parameter locks, trigger conditions and retrig, micro timing and arpeggiator per track
• Various effects (depending on the track type)
• 128 x 64 pixel OLED display
• 5 GB internal sampling memory
• Includes 64 GB SD card, PSU-5 power supply unit and USB-C cable
• Dimensions (W x D x H): 286 x 176 x 63 mm
• Weight: 1.85 kg

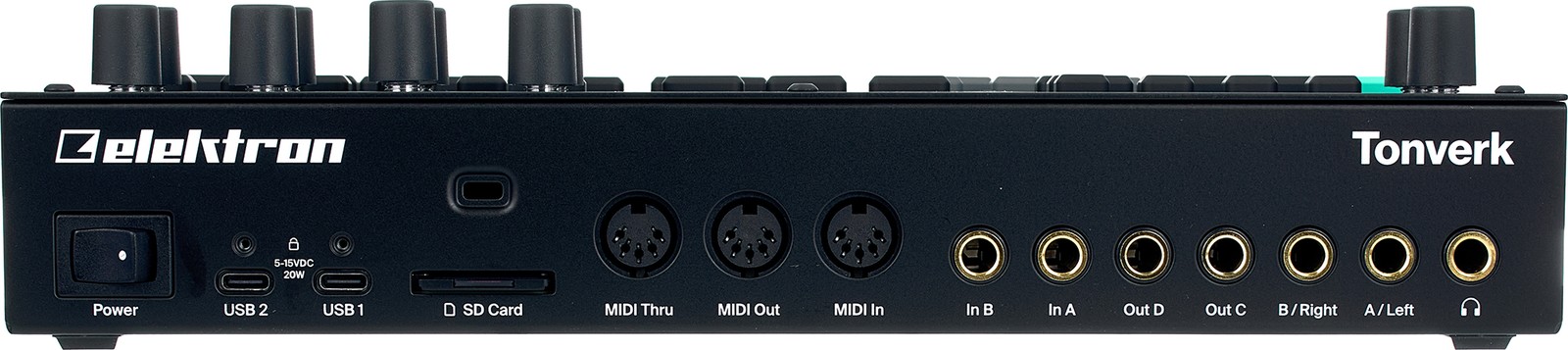

Connections:

• MIDI In/Out/Thru
• 2 x 6.3 mm jack input
• 2 x 6.3 mm jack output
• 6.3 mm headphone output
• 2 x USB-C port
• SD card slot
