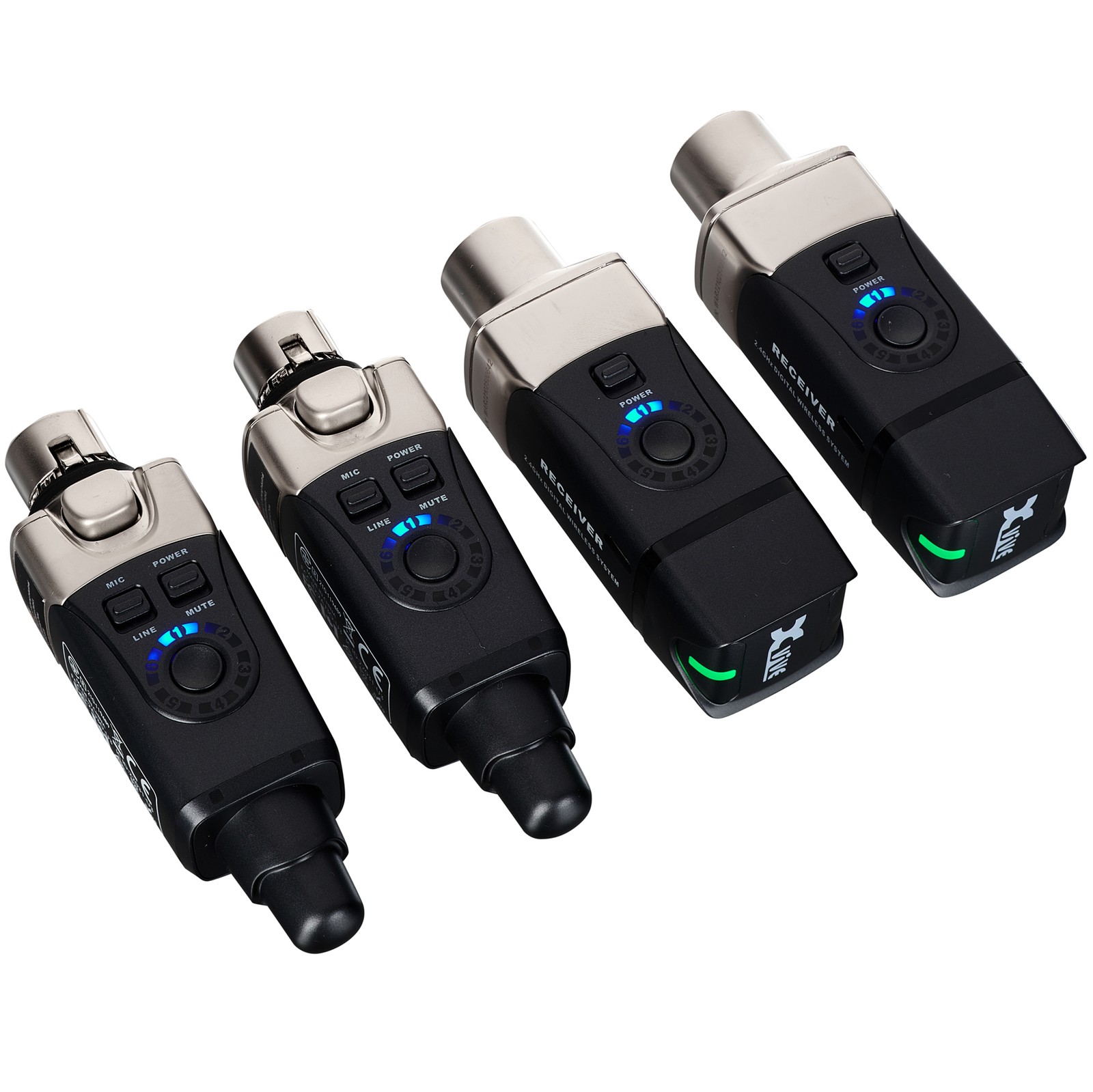

XVive U3D Dual Wireless for PA/DJ

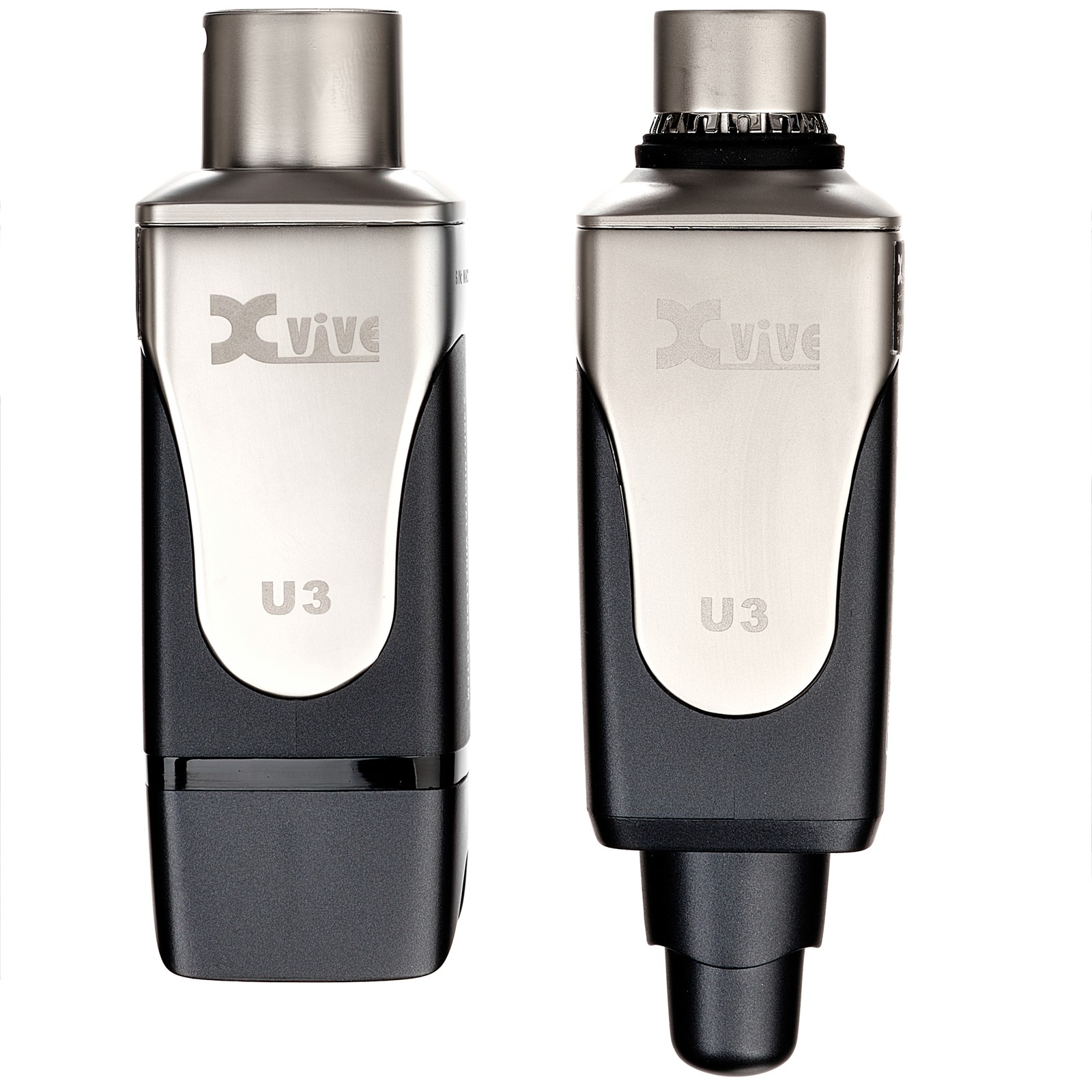

Digitale draadloze PA/DJ en microfoon-transceiver set
- Set met 2 zenders en 2 ontvangers
- Te gebruiken met mengpanelen/actieve luidsprekers en dynamische microfoons
- Stereo / Dual Mono / 1 zender / 2 ontvangers biedt de mogelijkheid om de set voor verschillende toepassingen te gebruiken
- Werkt zonder batterij of netvoeding
- Geïntegreerde oplaadbare lithiumbatterij
- Bereik tot en met 27m (zonder obstakels)
- Frequentiebandbreedte 20 - 20.000 Hz
- Latency < 5 ms
- 6 Schakelbare kanalen
- 24 Bit / 48 kHz A/D converter
- 2,4 GHz ISM-frequentieband die wereldwijd kan gebruikt worden
- 110 dB dynamische bandbreedte
- Signal to Noise Ratio: 110 dB
- Tot en met 5uur batterijduur per lading
- Robuuste ABS behuizing
- ON-knop op de zender
- Power-schakelaar op de ontvanger
- Mic/Line-knop op de zender: hiermee kan de zender worden gebruikt voor het verzenden van Line-signalen voor DJ- en PA-toepassingen en voor het verzenden van microfoonsignalen
- Channel selectieknop
- Micro B USB-oplaadaansluiting
- Gewicht per eenheid: ca. 95 g
- Kleur: Zwart
- Incl. USB type A naar Y-USB Micro B oplaadkabel
Opmerking: Registreer uw product op www.w-distribution.de/Warranty en verleng de garantie tot 4 jaar.
-
Leverbaar sinds Maart 2023
-
artikelnummer 557289
-
verkoopseenheid 1 stuk
-
Frequency Band 2,4 GHz
-
Diversity No
-
Switchable Frequencies Yes
-
Removeable Antenna No
-
Transmitter powerd with Akku
-
Transmitting Technology digital
-
Channels Mono
-
Type Transmitter/Receiver
-
Transmission type 2,4 GHz
-
Transmitter battery powered Yes
-
Frequency from 2400 MHz
-
Frequency to 2400 MHz
-
Receiver Weight (kg) 0,095 kg
-
Receiver with Accu Yes
-
Battery Monitor No
-
Transmitter Input XLR
-
Receiver Output XLR
-
Charging System incl.
-
Compact PA wireless system
The XVive U3D Dual Wireless System is a digital wireless solution for PA and DJ systems that offers six freely selectable radio channels and operates at radio frequencies within the open 2.4GHz ISM band, which can be used without registration and free of charge worldwide. Thanks to 24-bit/48kHz conversion, a dynamic range of 110dB, and a total harmonic distortion of 0.2%, the XVive U3D Dual Wireless System ensures a high-quality sound for every situation. Each U3 transmitter and receiver unit in this ultra-compact dual wireless system weighs in at around 90g, and the transmitters measuring just 10cm in length require very little space on the mixing console.
)
Low-latency transmission
The U3 transmitters and receivers that make up the XVive U3D Dual Wireless System feature XLR connections that allow them to be directly connected to mixing consoles or active speakers with an extremely low latency of 5ms, which can be ignored in practical applications. The rechargeable lithium-ion batteries contained in the U3 transmitters and receivers provide a wireless system operating time of up to five hours and can be fully charged within 2.5 hours, even during operation, using a 5V USB power source from a computer, adapter, or power bank.
)
Set up in next to no time
The XVive U3D Dual Wireless System offers users a digital wireless audio solution for PA and DJ systems that can be set up in next to no time: All they have to do is plug it in, select a channel, and play. Its signal range of up to 27m makes the U3D system the ideal choice for all DJs, bands, and musicians who want to perform in small to medium-sized venues and minimise the risk of tripping over loudspeaker cables on stage. The scope of delivery also includes a carrying pouch and a USB charging cable for each transmitter and receiver pair as well as an XLR extension adapter for mixing consoles that provide only a small amount of space between XLR outputs.
)
About Xvive Audio
Xvive Audio officially entered the market in 2012 with its compact U2 wireless guitar system. Since then, the company has also been involved in the development of wireless microphone technology. Its catalogue also includes effects pedals, such as the Signature Series, which were developed in partnership with guitarist Thomas Blug. The products are designed by an American team, based in Pasadena, California, which is composed of musicians and engineers and draws on decades of professional experience. Its lead designer, Howard Davies, was previously employed at Electro Harmonix and Pigtronix, among others. Xvive Audio's goal is to create products that deliver exceptional sound and build quality, while remaining affordable for any musician.
Stereo and dual mono applications
The XVive U3D Dual Wireless System allows DJs, bands, and solo musicians to transmit their audio signals to a stereo PA system without the constraints of cables simply by connecting the U3 transmitters to the XLR outputs of a mixing console, plugging the U3 receivers into the XLR inputs of two active speakers, and selecting a separate radio channel for each transmission path. Alternatively, users can also create a dual mono setup by connecting one U3 transmitter to the mixing console's XLR output, plugging the U3 receivers into the XLR inputs of two active speakers, and selecting the same radio channel for all three units.
Opmerkingen in betrek op de ondersteunde frequentiebereiken
Hier vindt u informatie welk frequenties door dit draadloos systeem ondersteund worden en in welke landen ook in de toekomst voor draadloos gebruik toegestaan zijn.
