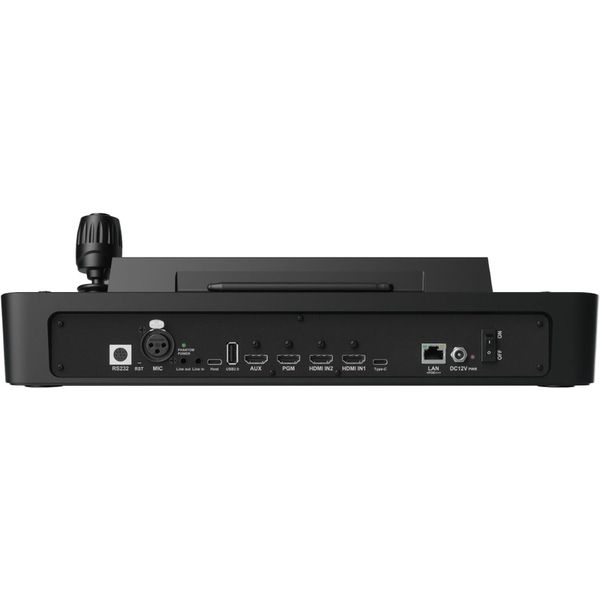

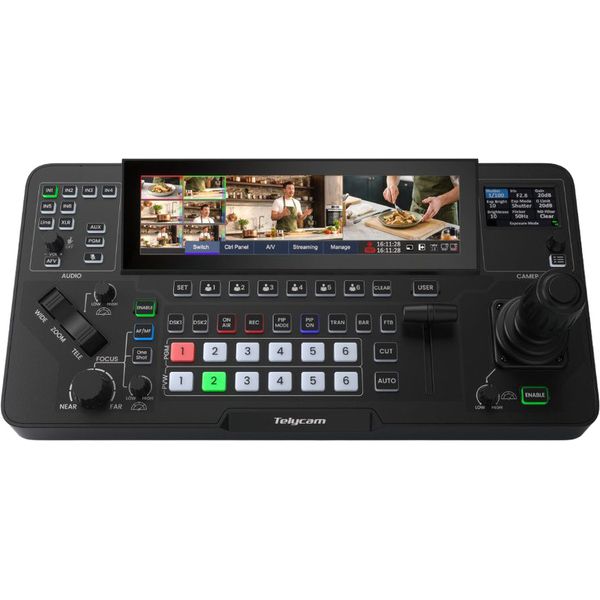

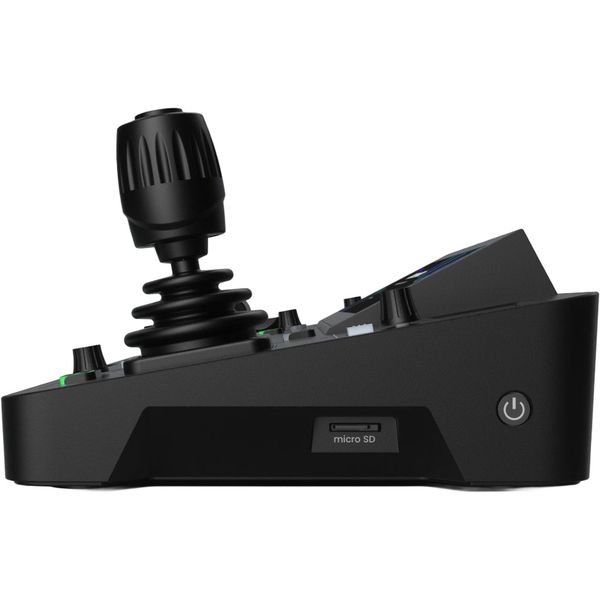

Telycam Mix One

All-in-One PTZ Controller and 4K Video Mixer

• Professional switching, graphics, recording, streaming and PTZ control in a single device
• Hall-effect joystick and toggle switch for precise camera movements
• Storage of up to six presets per camera
• Supports up to six simultaneous video sources via HDMI (up to 4K60), USB-C and IP streams (NDI HX3, SRT, RTMP, RTSP)
• 4K output: Output via professional HDMI Programme and Aux outputs (up to 4K60) as well as IP output
• 8.8" touchscreen for centralised control of video switching
• Audio mixing and system settings
• Direct recording to external USB drives and SD cards at up to 4K resolution
• XLR input with 48V phantom power and line in/out
• Live streaming to YouTube, Twitch, Facebook and other RTMP/SRT platforms
• PoE++ (power over ethernet) support: Power and data over a single network cable
• Graphics tools: Built-in features for titles, lower thirds and subtitles
• Includes power supply (12V DC, 5A)

Video:

• Total video inputs: Six simultaneously
• HDMI inputs: 2x HDMI IN (4K60/50/30/25, 1080P60/50/30/25, 1080i60/50, 720P60/50/30/25)
• USB video input: 1x USB device (UVC/DP)
• Up to 1080p at 60fps
• IP video input protocols: NDI®HX3, SRT, RTMP, RTSP
• HDMI outputs: 2x HDMI OUT (PGM up to 4K60, AUX up to 1080p60 with Multiview/PVW)
• USB/DP outputs: UVC (MJPEG, up to 1080p60), DP (up to 1080p60)
• IP video output protocols: NDI®HX3, SRT, RTSP, RTMP
• IP video output resolution: Up to 4K60
• Supported NDI protocol: NDI®HX3
• Format conversion: Supported on all inputs

Audio:

• 1x XLR input (48V phantom power)
• 1x Line-in (stereo)
• 6x audio input (followed by video)
• 1x Line Out (stereo)

Network:

• Network interfaces: 2x 1GbE (1x PoE++ 72W)
• Streaming protocols: NDI®HX3, SRT, RTMP, RTSP
• PTZ control protocols: RS232/RS485 (Visca), IP (NDI PTZ, Visca over IP, UDP/TCP)
• Power supply: 12V DC, 5A
• Dimensions: 390.9 x 189.5 x 124 mm
