Stairville LED Matrix Blinder 5x5 RGB WW

Start 360°

Audience Effect Blinder met LED matrix

Door de 5 x 5 opstelling van de 25 lenzen kunnen talloze Matrix-effecten, letters en cijfers worden gecreëerd. Elk van de 25 LED's van 10W kan afzonderlijk worden aangestuurd via DMX-512. Verder zijn er grote interne automatische programma's, die ook beschikbaar zijn in Master/Slave mode (1 x 1, 1 x 2, of 2 x 2 units). Alle effecten kunnen ook worden geactiveerd door Sound-to-Light.

De lenzen met een diameter van 6,3 cm maken het effect zeer kwalitatief. Cinematografen zullen genieten van het sterren of schitteringseffect dat door deze lensgrootte wordt gecreëerd. De LED Matrix Blinder is eenvoudig te bevestigen en te positioneren met de beugel. Dankzij de M6 binnenschroefdraad die in het frame is geïntegreerd, kunnen meerdere apparaten zeer gemakkelijk worden aangesloten met de meegeleverde beugel.

Technische gegevens:

Lichtbron: 25x 10 W RGBWW LED's
Lensgrootte Ø: 6,3 cm
Besturing: DMX-512 (1, 4, 26 en 28 kanalen), Master/Slave, muziekbesturing
LED Display voor het instellen van functies
Dimmer: 0-100%, lineair
Power Twist In/Out
Stroomvoorziening: AC-100-240V 50/60Hz
Max. stroomverbruik: 250 W
Afmetingen (B x H x D): 450 x 450 x 115 mm
Gewicht: 10,2 kg

30 dagen Money-back garantie

Drie jaar Thomann garantie

Leverbaar sinds Januari 2023
artikelnummer 494410
verkoopseenheid 1 stuk
Construction Type Matrix
including bulb(s) Yes
Bulbs LED
Colour / Colour temperature [K] RGB WW
Number of lamps 25
Power per bulb [W] 3 W
DMX control Yes
Numbers of LED´s 25
single LED power 10 W
Colour mixing RGB WW
LED Type COB
No fan Yes
Remote not supported
Housing Colour Black
Beam angle min. 38 °
Beam angle max. 38 °

Productvariaties

Stairville LED Matrix Blinder 5x5 RGB WW

Stairville LED Matrix Blinder 5x5 RGB WW Audience Effect Blinder met LED matrix Door de 5 x 5 opstelling van de 25 len...

€ 399

naar het product

Stairville LED Matrix Blinder 5x5 MK II

Stairville LED Matrix Blinder 5x5 MK II Audience effect blinder met LED matrix Door de 5 x 5 opstelling van de 25 lenzen...

€ 299

naar het product

B-Stock vanaf € 333 beschikbaar

€ 399

Alle prijzen incl. btw

Best seller rang

in blinder

Bundels & aanbiedingen

Stairville LED Matrix Blinder 5x5 B-Stock
Kan lichte gebruikssporen bevatten

€ 333

Superior matrix effects

The Stairville LED Matrix Blinder 5x5 RGB WW boasts an array of professional effects in a single panel, offering RGB colour mixing in addition to the warm white also featured on the Stairville LED Matrix Blinder 5x5 MK II model, as well as individual LED control. The light is emitted through extremely large lenses, opening up a multitude of design options for event professionals and videographers alike. Users will find the menu buttons remarkably easy to access, regardless of whether the Stairville LED Matrix Blinder 5x5 RGB WW is suspended from its housing or placed on the floor. In addition to enabling the display of numbers, letters, and symbols, the ArtNet-enabled module also features numerous automated programmes for launching large shows.

XL lenses for a dazzling performance

The Stairville LED Matrix Blinder 5x5 RGB WW can be operated using the menu keys, or with particular ease from above when the 10.2kg blinder, complete with its 25 LEDs each measuring in 6.3cm in diameter, is inclined backwards to function as an uplighter. DMX operation with four, nine, or 100 channels is provided courtesy of the three-pin XLR inputs and outputs, which are located at the rear of the blinder alongside the power twist and ArtNet in and out ports. The blinder comes complete with 27 automatic shows of variable running speed, 39 colour macros, strobe effects, and sound control, and includes a choice of dimmer curves for fine tuning with subsequent activation of the key lock.

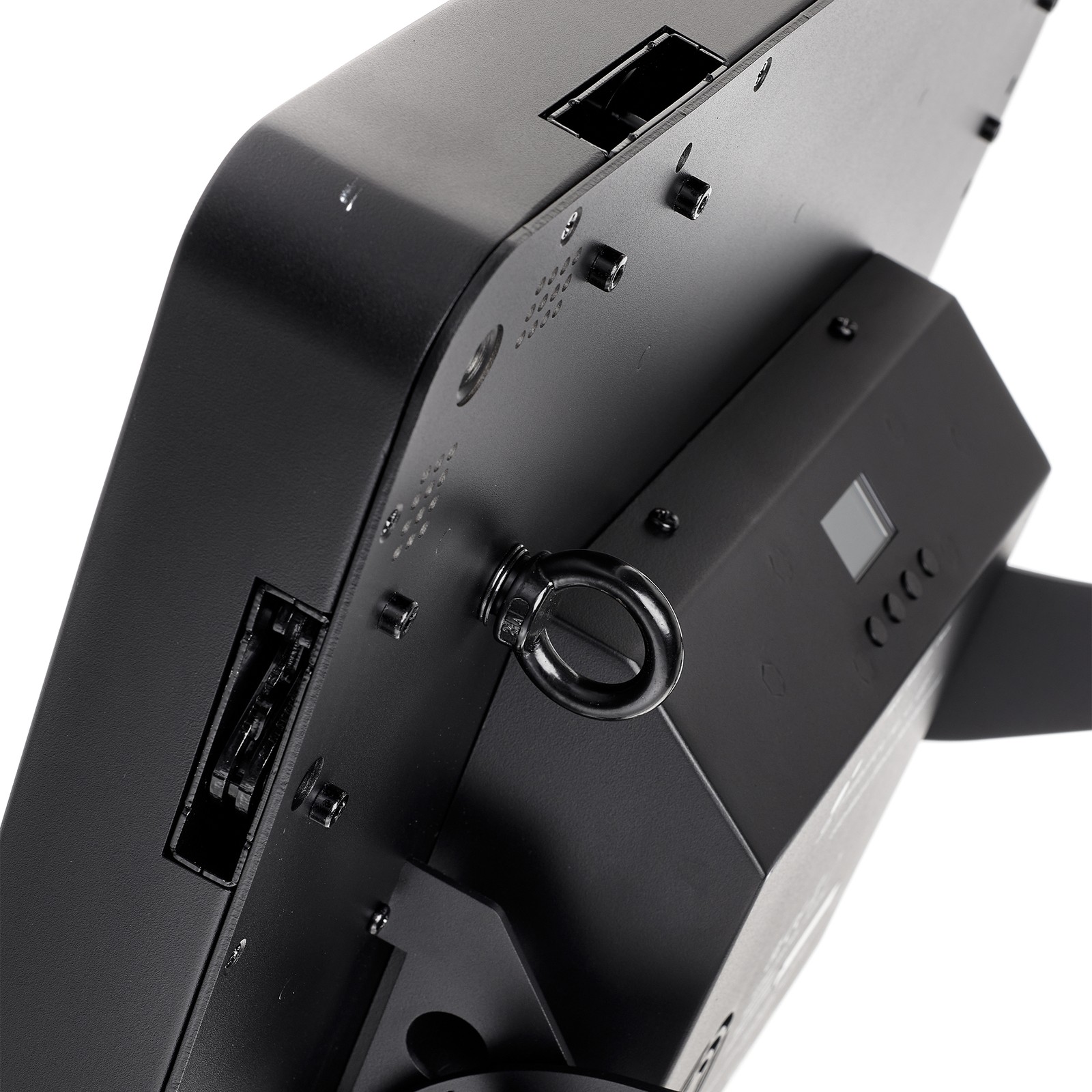

Detailed view of the Stairville LED Matrix Blinder 5x5 RGB WW

The matrix show

While party hosts can choose from the various automatic programmes offered by the blinder, the sound control function provides disco owners and DJs with effects to match the music. Show lighting directors can incorporate the panel into their network and programme coloured blinder effects that appear as sparkling stars in videos courtesy of the extra-large lenses. The blinder can also be used by gala organisers to create individual light sequences, while the blinder's key lock and power twist sockets located in the robust metal housing ensure reliable operation in general public use. The Stairville LED Matrix Blinder 5x5 RGB WW can be used to display the current score in interactive gameshows and offers a variety of ways for club operators, concert organisers, and bands to alternate between an illuminated band name and LED effects.

Stairville LED Matrix Blinder 5x5 RGB WW – Audience-Effect Blinder with LED Matrix

About Stairville

Since it was introduced in 1994, Thomann’s in-house brand Stairville has been a permanent fixture in the store’s product range. The brand primarily focuses on the field of stage lighting in general, and its products include spotlights, moving lights, and theatre lighting as well as smoke machines, electronic control systems, and every other accessory you can think of. Thomann constantly has around 1,600 Stairville products on offer, and the figures speak for themselves: Statistically, one in every fifteen Thomann customers owns at least one Stairville product. Incidentally, the name “Stairville” is also a catchy English translation of “Treppendorf”, the town that Thomann calls home.

For starry skies with the "wow" effect

The Stairville LED Matrix Blinder 5x5 RGB WW can be used to create a wall of LED panels as a backdrop accompanied by additional blinders on the floor, which can be joined at multiple points courtesy of the extendable hooks on each panel that allow precise connection of the housings. The short three-pin, 1m-long Stairville PDC3CC DMX cable, which is also available in other lengths, can be used to transmit the DMX control signal from one spotlight to the next, while the XLR three-pin Stairville DMX terminator can be used to set a terminating resistance for the last light in the DMX chain.
