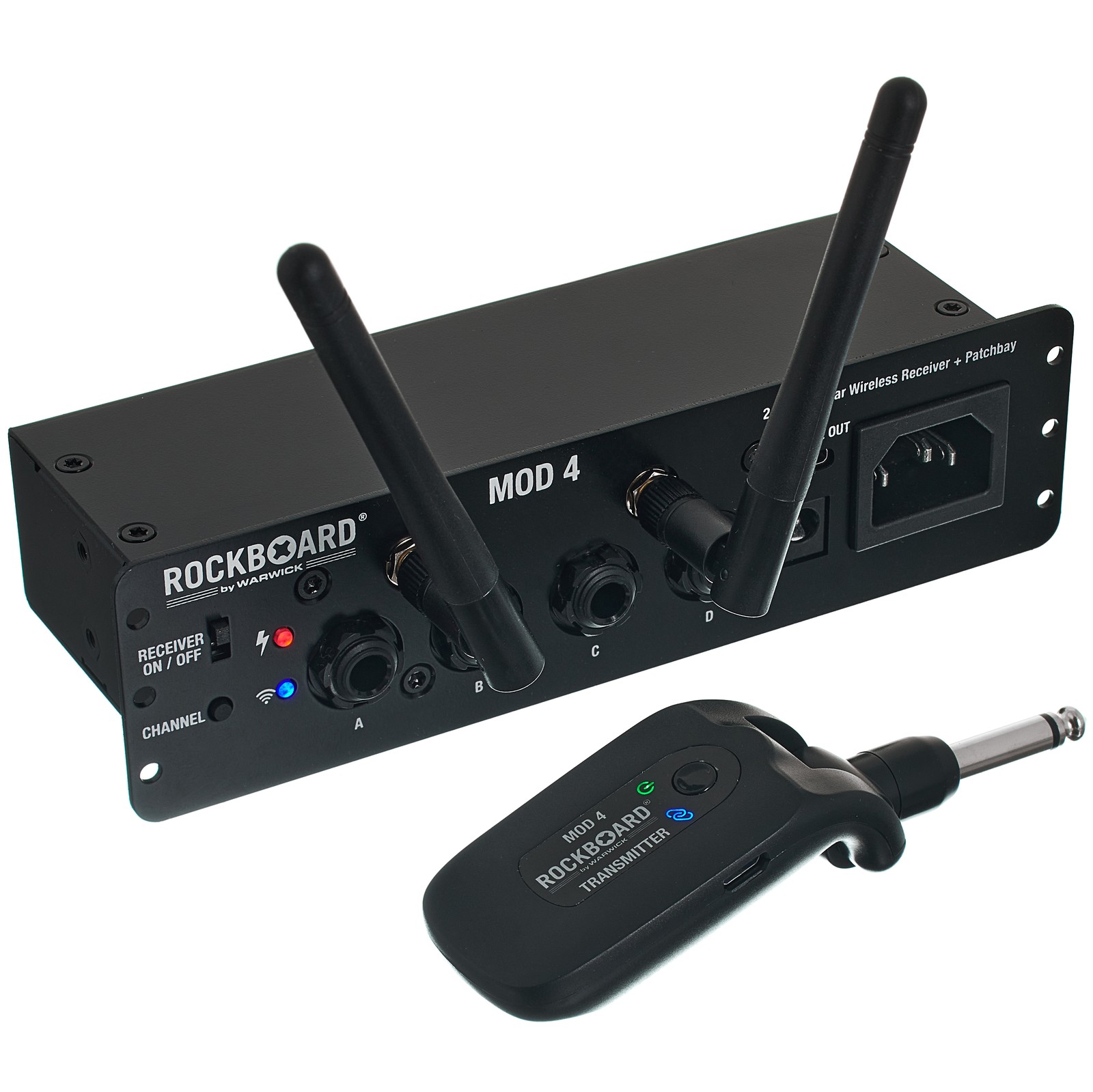

Rockboard MOD 4 & U2 Transmitter

Start 360°

Wireless receiver en patchbay voor pedalboards incl. zender

Compatibel met het XVive U2 Guitar Wireless System
2,4 GHz ISM-band voor wereldwijd gebruik
30 m Gemiddeld bereik (zonder obstakels)
24 Bit / 48 kHz ongecomprimeerde digitale signaaltransmissie
20 Hz - 20 kHz frequentiebereik
Latency: 5 ms
> 103 dB Dynamisch bereik
- 85 dBm RF-gevoeligheid
0,2% Vervorming (THD)
4 Selecteerbare kanalen
Geschikt voor MOD slots in RockBoard pedalboards
Compatibel met een groot aantal andere pedalboards
Functioneert als een centraal toegangspunt voor uw effecten setup
Verwijderbaar frontpaneel voor het monteren op of onder pedalboards
Stroomvoorziening via optionele 9 V DC-voeding (2,1 x 5,5 mm holle connector, polariteit (-) binnen)
Stroomverbruik 500 mA
Passieve werking mogelijk (alleen patchbay zonder draadloos systeem)
Afmetingen met frontpaneel (B x D x H): 175 x 85 x 47 mm
Afmetingen zonder frontpaneel (B x D x H): 160 x 85 x 33 mm
Gewicht: 500 g
Incl. XVive U2 Wireless Transmitter, 2 antennes, 1 USB kabel, montageschroeven en moeren

Aansluitingen:

4 x 6,3 mm Stereo jack thru (TRS)
1 x 6,3 mm Mono jack ontvanger audio-uitgang (TS)
1 x DC 2.1 x 5.5 mm holle connector Thru
1 x AC IEC Thru
1 x USB Type C oplaaduitgang

Opmerking: Gebruik op batterijen wordt niet ondersteund.

Opmerking: Registreer uw product op www.w-distribution.de/Warranty en verleng de garantie tot 4 jaar.

Let op! Registreer uw aankoop op shop.warwick.de/en/warranty-registration voor een verlengde garantie van 4 jaar.

30 dagen Money-back garantie

Leverbaar sinds Augustus 2020

artikelnummer 495161

verkoopseenheid 1 stuk

€ 141

Alle prijzen incl. btw

Best seller rang

in accessoires voor rockbag

Patchbay with wireless receiver

The RockBoard MOD 4 is a proven practical solution for discerning guitarists and bassists alike, combining an ISM wireless receiver and a TRS, DC, and AC IEC patchbay in a single device. The built-in wireless technology can be used worldwide without restriction and not only delivers in terms of audio quality but also ensures a reliable wireless connection between instrument and effects. The patchbay section consolidates all the necessary connections of a pedalboard in one central access point, shortening cable paths and providing users with a better overview of their entire effects setup.

Flexible routing

All TRS connections (A-D) on the MOD 4 are wired as through connections from the front to the rear of the module courtesy of the pass-through design, enabling flexible routing of the effects pedals. This allows users to create a setup using the four-cable method, for example, which enables an amplifier's effects loop to be used and the preamp and modulation, delay, and reverb effects to be positioned at the correct point in the signal chain. The module also comes with a through-type DC and AC IEC mains connection for the multi-power supply under the board. The wireless receiver in turn is powered via an additional 9V DC socket on the back of the module.

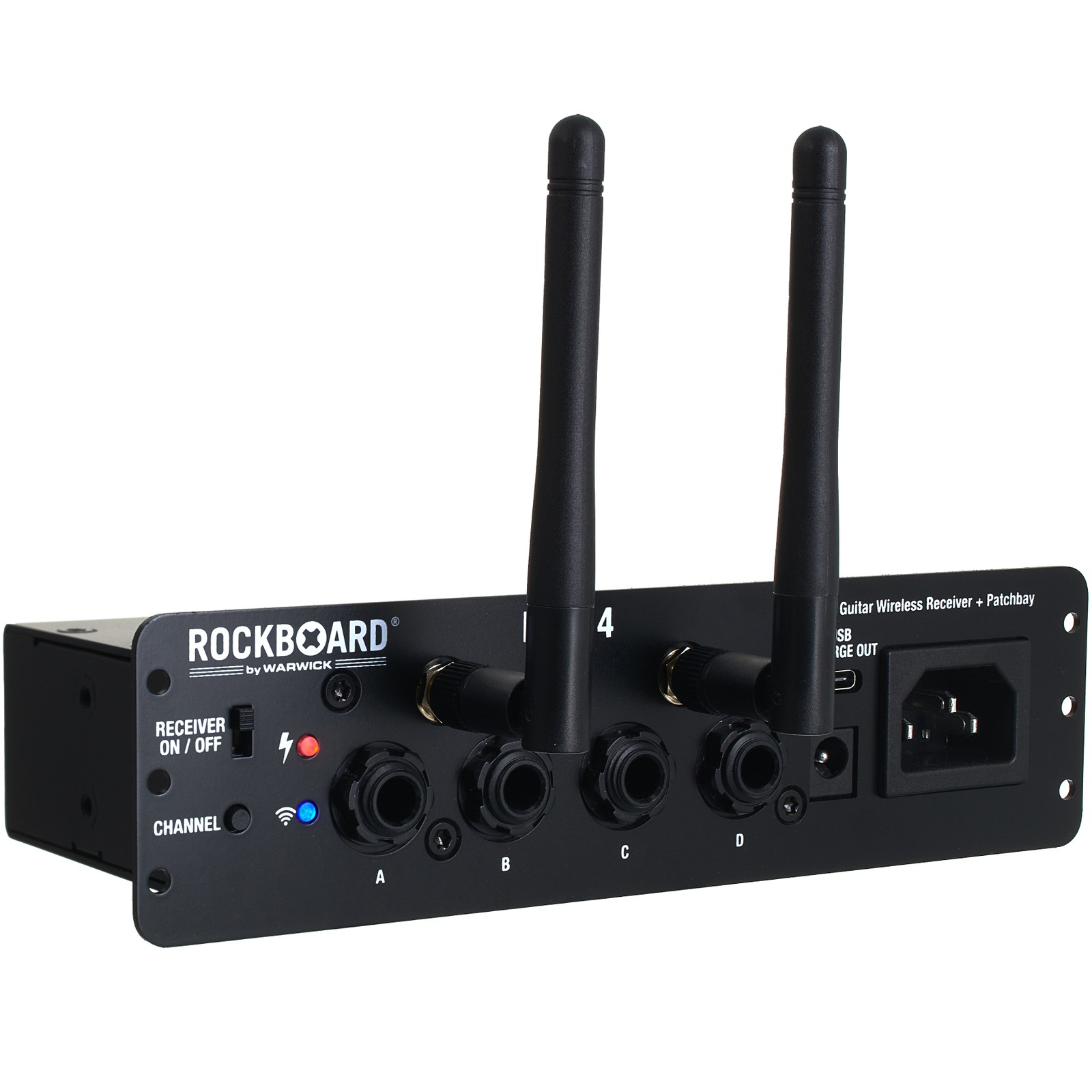

Detailed view of the RockBoard MOD 4 & U2 transmitter

Wireless freedom

The practical RockBoard MOD 4 module ensures that guitarists and bassists are optimally prepared for virtually every situation and makes the perfect accompaniment to any pedalboard, whether as a flexible patchbay for organising all connections and providing clear and neat cable routes to the exterior of the pedalboard, or as a wireless receiver for a cable-free performance. The patchbay and wireless sections can also be used independently of each other. Users can mount the MOD 4 in the MOD slot of almost all RockBoard pedalboards (excluding the DUO series) or remove the front panel and mount the module on or underneath the pedalboard.

Wireless receiver and patchbay for pedalboards, including transmitter

About RockBoard

RockBoard is a brand belonging to Warwick Music Distribution GmbH, which is based in Markneukirchen in Germany's Vogtland region. RockBoard's range focuses on pedalboards, which are available in numerous different designs to suit any application and budget, and are complemented by an extensive range of pedalboard accessories, from slick patchbays for expanding the boards and high-quality patch cables for loss-free connection through to high-performance power adapters and the "QuickMount system" for rapid effect changes. In short, RockBoard offers virtually everything that players need to easily set up their own individual pedalboard.

High-quality wireless system

The system's true diversity reception means that the integrated wireless receiver still ensures a high degree of signal stability even under adverse conditions. The receiver operates in the globally cost and licence-free 2.4GHz ISM band and is compatible with the U2 Guitar Wireless System. The digital wireless system boasts a range of 30m (without obstacles) and a usable frequency range of 20Hz to 20kHz, while the latency value of just 5ms has virtually no influence in practice, and the uncompressed 24bit/48kHz signal transmission delivers high-quality sound every time.

Opmerkingen in betrek op de ondersteunde frequentiebereiken

Hier vindt u informatie welk frequenties door dit draadloos systeem ondersteund worden en in welke landen ook in de toekomst voor draadloos gebruik toegestaan zijn.

De juistheid van de gegevens kan niet worden gewaarborgt.!

Dit is wat klanten die dit product bekeken hebben gekocht hebben

Nux C-5RC Wireless System

€ 145

kochten

the t.bone GigA Pro Pedal Set

€ 239

kochten

AKG WMS 40 Mini Instrument ISM1

€ 109

kochten

Harley Benton AirBorne 2.4Ghz Instrument

€ 69

11 Klantenbeoordelingen

5 7 Klanten 4 1 Klant 3 2 Klanten 2 0 Klanten 1 1 Klant

4.2 / 5

afwerking

Review richtlijnen

10 Recensies

Vertaling tonen

Origineel tonen

Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.

Excellent

AJ Decay 05.09.2023

Fitted perfectly into my rockboard without having to adjust any holes (not sure what the other reviews are referring to).

Patching works seamlessly and the wireless connection is solid (60ft through 4 concrete walls at the practice studio and it still wasn’t breaking up). You may get some interference if the electrics in the building are sub-par (which is most places), so you might want to add a noise gate to your setup.

Would 100% buy again.

Evaluatie melden

Bent u van mening dat deze evaluatie om een of andere reden onjuist of onacceptabel is? Geef ons s.v.p. de reden voor uw bewering in de volgende tekstbox en – indien mogelijk – uw E-mailadres voor verdere vragen.

Vertaling tonen

Origineel tonen

Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.

Made for people who don't move on stage

nerolyk7 07.06.2022

I'd say it works relatively good if you dont move at all, but if you have pedals(wah for example) that you will use while playing or even if you want to move while playing then this wireless system is not made for you. If there is no clear line of sight between transmitter and receiver, signal will struggle a lot to go through and you'll hear it. In short, buy it ONLY if you don't plan on moving in any way while playing.

Evaluatie melden

Vertaling tonen

Origineel tonen

Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.

i discovered this thing does not seat well in the guitar and shorts out all the time, American Standard stratocaster by fender..

rokin randy 14.09.2021

I discovered this thing does not seat well in the guitar at all. It shorts out all the time, playing with my American Standard stratocaster by fender..It pops out all the time i can't use it. seems noisy but my pedals maybe part of that. maybe there is a fix

Evaluatie melden

Vertaling tonen

Origineel tonen

Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.

Great wireless!

Pålis 28.12.2023

Great wireless integration for pedalboard! Only issue is the antennas. The plasticshielding/joint got worn out pretty fast. But it still works without the plastic. I am pretty rough with gear and its used a lot. Recommend!

Evaluatie melden
