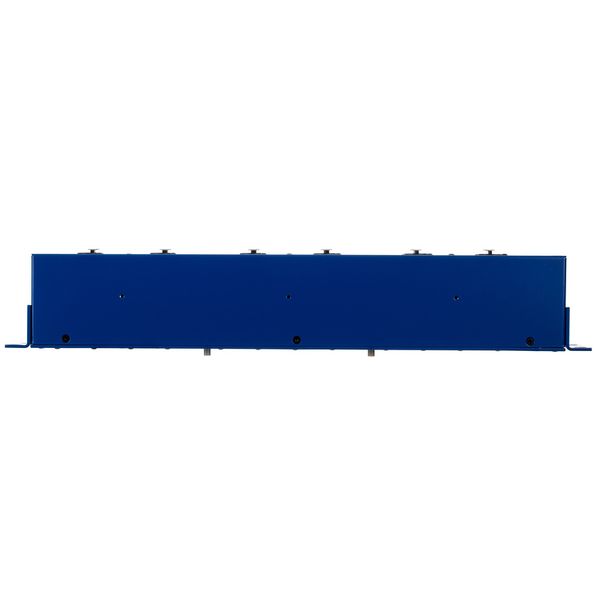

Radial Engineering Catapult RX
Start 360°
12-Channel Audio Distributor
- Transmits up to 12 balanced audio or AES signals via 3x Cat5/6 cables
- RX version with male XLR sockets for connection to a mixer or audio interface
- Passive design, no digital conversion
- Compatible with other Radial Catapult products
- Three input groups (A/B/C), each with four XLR connectors
- Each group requires a shielded Cat5/6 cable for transmission
- 2 x RJ45 output and through
- Ground lift can be switched on or off for each group
- Signal transmission works in both directions
- If necessary, the RX version can also function as a transmitter (XLR female-to-female adapter required)
- Rack brackets can be mounted on both sides
- Depending on the application, the XLR or RJ45 sockets may therefore be located on the front panel

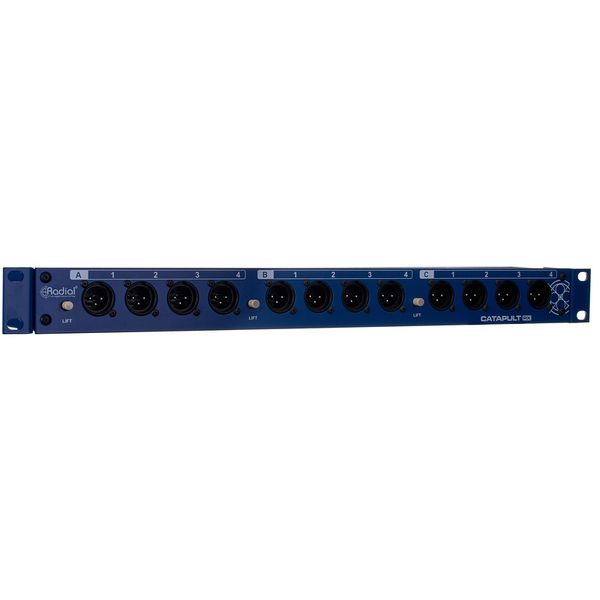

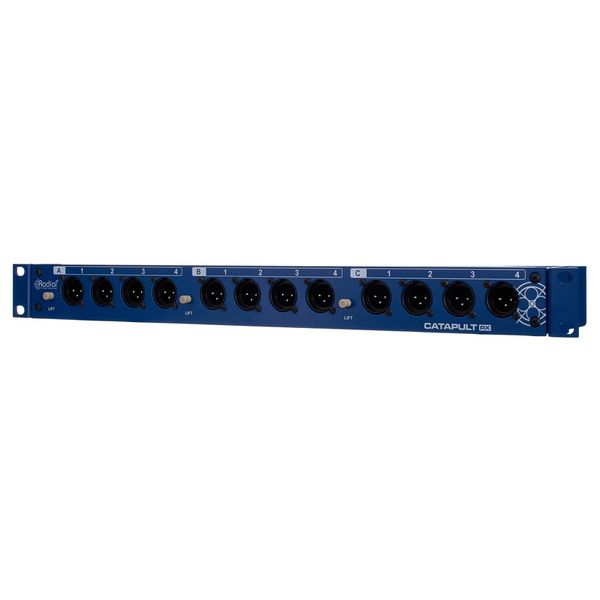

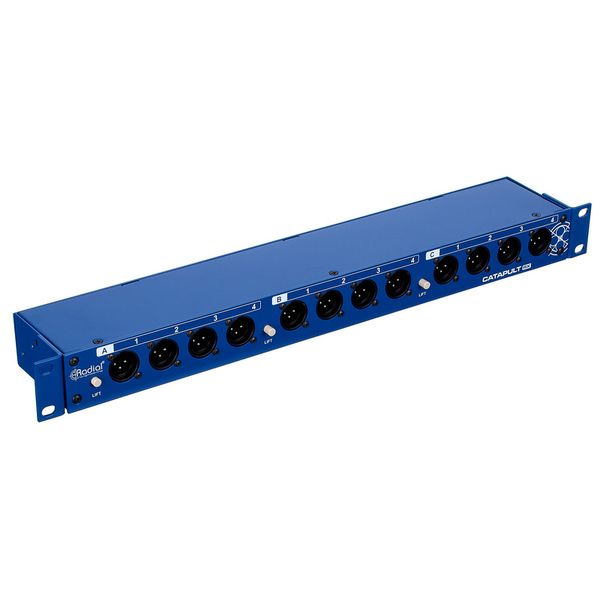

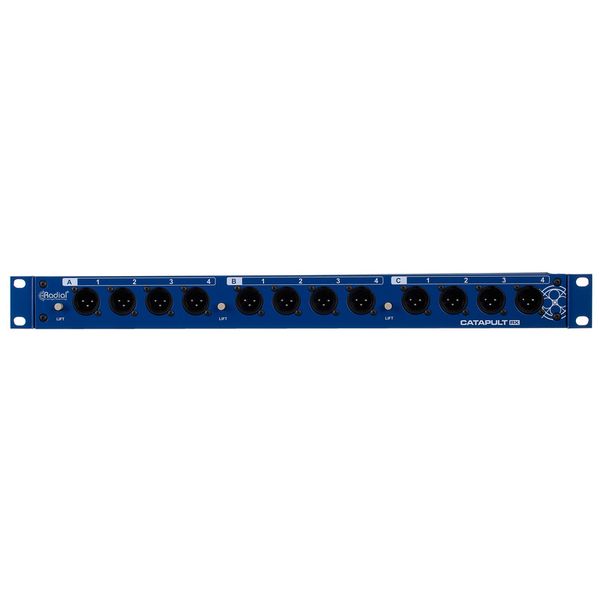

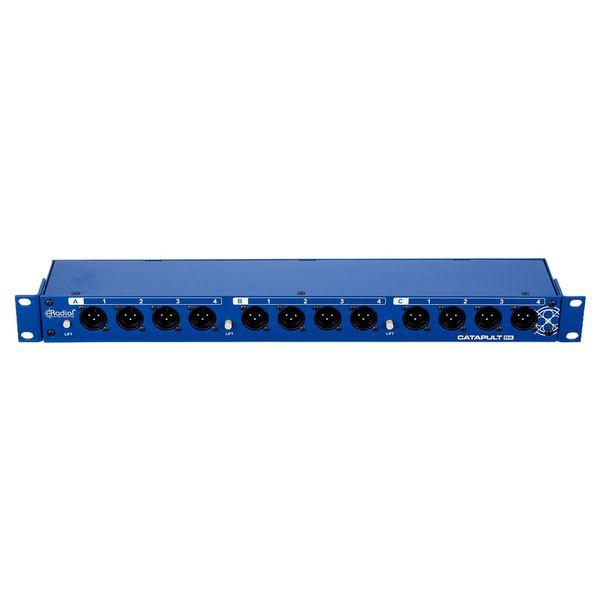

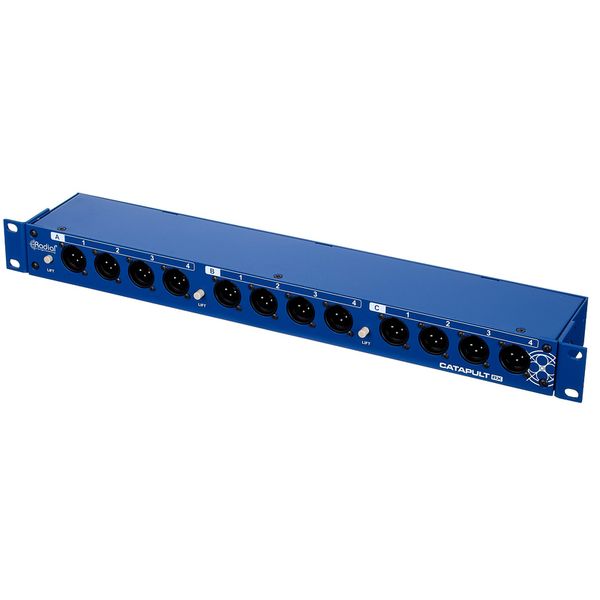

- Front-panel connections: 12 x XLR (male)

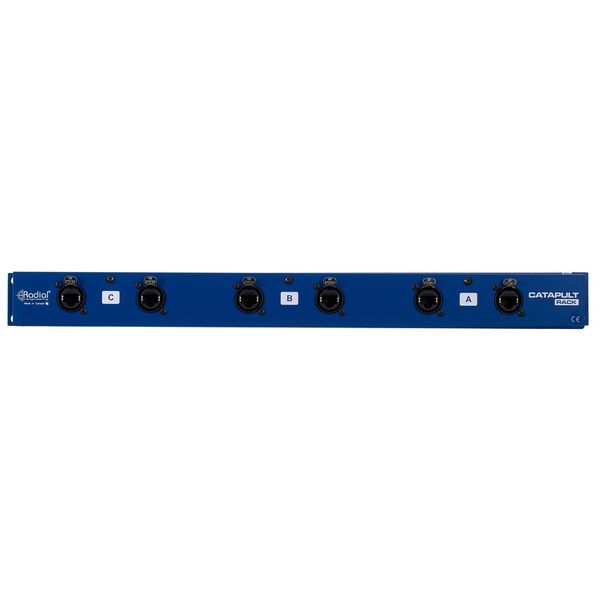

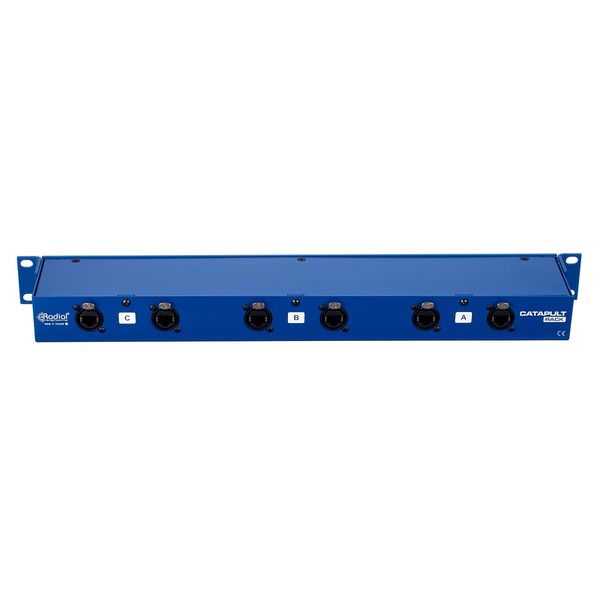

- Connections on the rear panel: 6 x RJ45 (etherCON)
- Format: 19" / 1 U
- Dimensions (W x D x H): 48.3 x 8.3 x 4.4 cm
- Weight: 1.39 kg
-
Leverbaar sinds Maart 2026
-
artikelnummer 640111
-
verkoopseenheid 1 stuk
-
Design 19 "case
-
Distribution Type 1in12
-
RJ45 connection female
-
Number of RJ45 connections 6
-
Signal Connection 3-pin XLR male
-
Number of Signal Connectors 12
-
Connector in RJ45 female
-
Connection out XLR 3-pin male
