Thunderbolt 3 audio-interface

  • 192 Sampling rate
  • 24-Bits resolutie
  • 8 Microfoonversterkers met tot 60dB gain
  • 2 Combo-ingangen (microfoon/instrument) en 6x microfoon/lijningangen
  • 8x 6,35 mm TRS lijnuitgang, galvanisch gekoppeld
  • 2x 6,5 mm TRS jack stekkerbus voor de hoofduitgangen
  • 2 ADAT Optical en S/PDIF-, MIDI- en BNC-Wordclock-I/Os
  • Insert voor kanaal 1 en 2
  • 2 Koptelefoonuitgangen
  • Uitbreidbaar tot 26 in- en uitgangen via twee aansluitingen in formaat ADAT Optical
  • Zeer lage latenties
  • Afmetingen: 19"/ 1U
  • Gewicht: 2,72 kg
  • incl. Studio One Artist en Studio Magic Plug-In Suite
  • Leverbaar sinds Maart 2020
  • artikelnummer 482756
  • verkoopseenheid 1 stuk
  • Recording / Playback Channels 26x26
  • Number of Mic Inputs 8
  • Number of Line Inputs 6
  • Number of Instrument Inputs 2
  • Number of Line Outputs 10
  • Headphone Outs 2
  • Phantom Power Yes
  • Number of S/PDIF Connectors 1
  • Number of ADAT Connectors 2
  • AES/EBU Connectors 0
  • Number of MADI Connectors 0
  • Ethernet 0
  • Other Connectors No
  • MIDI Connectors Yes
  • Word Clock 1xIn, 1xOut
  • Max. Samplerate 192 kHz
  • Max. Resolution in Bit 24 bit
  • Bus-Powered No
  • Incl. Power Supply Yes
  • Windows Thunderbolt driver Yes
  • Thunderbolt Version 3
  • Width in mm 482,6 mm
  • Depth in mm 177 mm
  • Height in mm 44,45 mm
€ 421
-26% 30-Dagen-Beste-Prijs: € 569
info
Alle prijzen incl. btw
In ongeveer een week beschikbaar
1

The nexus of the studio

The PreSonus Quantum 2626 is a high-speed Thunderbolt 3 audio interface, combining exceptionally low latency with extensive connectivity for professional and semi-professional environments. Supporting 26 inputs and 22 outputs at 192kHz, or 32 inputs and 24 outputs at 44.1/48kHz, it delivers pristine audio conversion across multi-track recording, mixing, and post-production applications. Thunderbolt's ultra-fast bandwidth achieves latency below one millisecond, allowing real-time performance monitoring without the need for onboard DSP. Housed in a 1U rackmount chassis, the Quantum 2626 features eight Class A XMAX microphone preamps, eight balanced line outputs, and two amplified headphone outputs for monitoring. The first two channels include dedicated insert points, with independent inputs and outputs, precluding the use of a Y-cable. Studio One Artist, PreSonus' own DAW environment, is included, along with a suite of professional plugins from Lexicon, Arturia, and SPL, creating an expansive toolkit for recording and production.

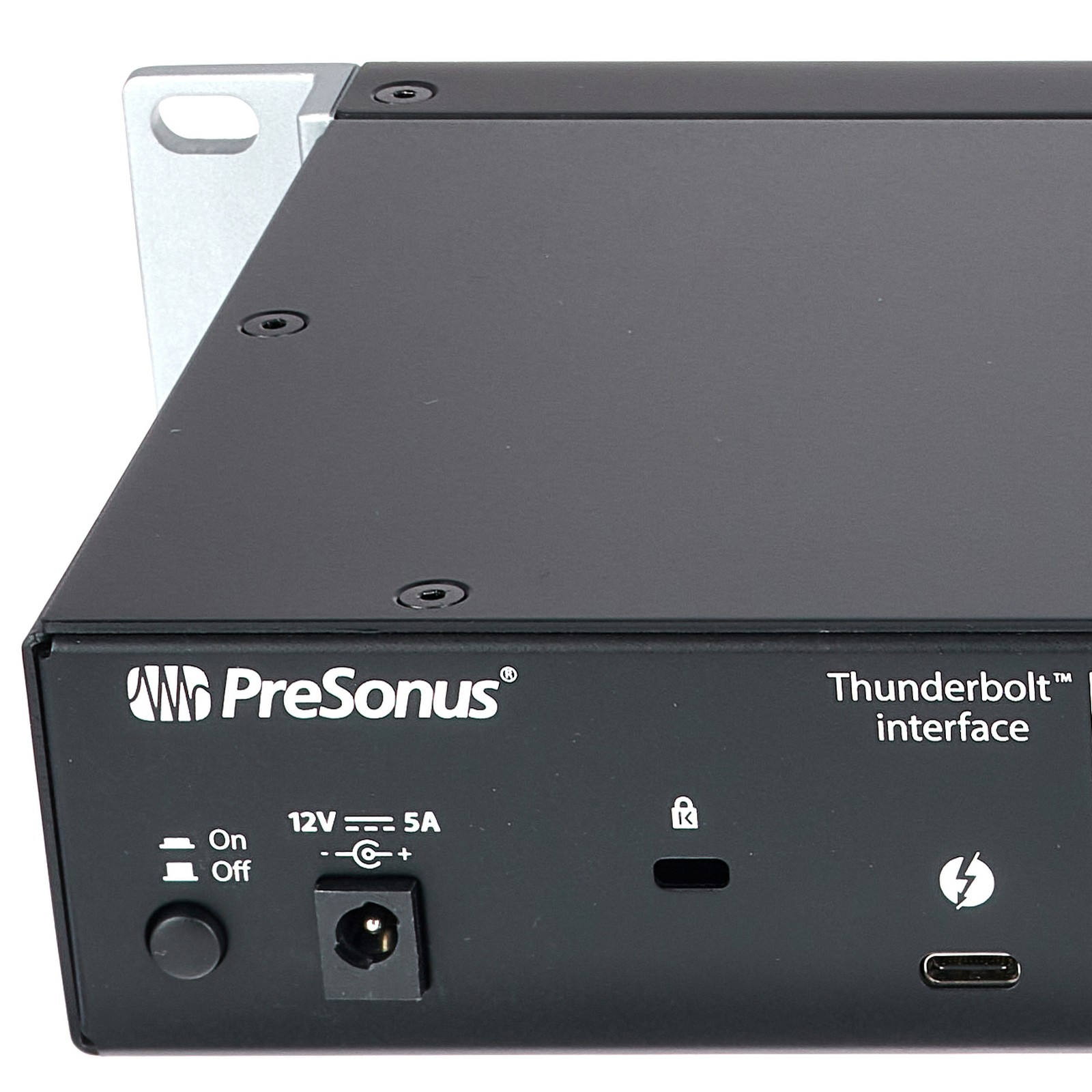

Presonus Quantum 2626, Thunderbolt 3 Audio Interface

The Quantum – bridging the gap

The Quantum 2626 is positioned between affordable two-channel interfaces and higher-end DSP-based systems, prioritising high conversion speeds over onboard processing – the DAW's internal engine, powered by the system CPU, is at the heart of the setup. Direct monitoring occurs via the DAW environment, ensuring tailored headphone mixes, flexible monitor routing, and instant session recalls. The UC Surface software allows remote operation via a computer or a tablet (iOS 10 and Android 5+), streamlining the workflow. Featuring eight high-quality mic/line inputs, including two with Hi-Z instrument support, the Quantum 2626 also features dual ADAT and S/PDIF inputs and outputs for further expansion. A word clock I/O ensures precise synchronisation with external digital equipment, while a dedicated pair of monitor outputs and two front-panel headphone jacks can accommodate separate submixes.

Presonus Quantum 2626, Thunderbolt 3 Audio Interface, dials

A streamlined studio solution

Designed for high-channel-count recording setups, the Quantum 2626 integrates extensive connectivity into a single-rack unit design. A dedicated MIDI I/O supports direct connection to hardware synths, drum machines, and controllers, a feature becoming increasingly rare in modern interfaces. The clean analogue signal path ensures transparent audio capture, while the DSP-free design maximises direct-to-DAW efficiency, allowing real-time monitoring with ultra-low latency. For users who rely on their DAW's internal processing, this approach delivers a responsive and streamlined workflow, free from additional software layers or onboard routing constraints.

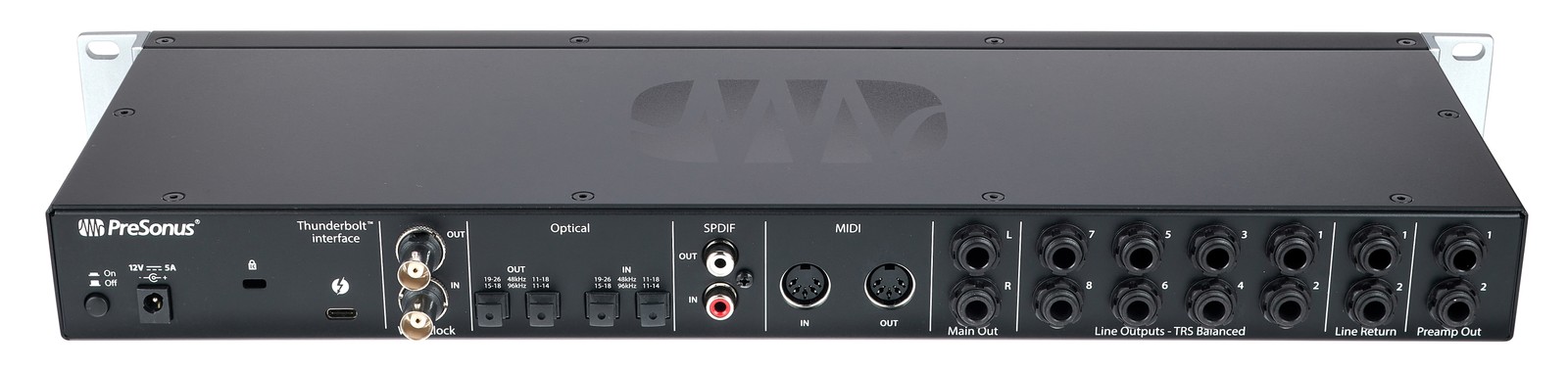

Presonus Quantum 2626, Thunderbolt 3 Audio Interface

About Presonus

Presonus is a US company founded in 1995 by Jim Odom and Brian Smith in Baton Rouge, Louisiana. The firm designs hardware and software at both professional and more affordable levels for musicians and producers. Presonus first made a splash in the mid-1990s with the DCP8, an eight-channel analogue compressor/limiter/gate with fader and mute automation that could be digitally controlled by MIDI. In the early 2000s followed a series of microphone amplifiers and the first audio interfaces for the then-emerging home studio scene. Today, the company's product range includes audio interfaces, microphone preamps, digital mixing consoles, and studio monitors as well as the established DAW software Studio One.

Designed to be versatile

Engineered for modern studio and live recording applications, the Presonus Quantum 2626 serves as a versatile hub for producers, solo musicians, and electronic artists. Wireless tablet control enables hands-free operation in self-recording setups, while DC-coupled I/O supports direct CV/Gate sequencing for modular synthesizers and analogue hardware. The rugged construction and low-latency performance make it equally suited for live tracking, pre-mixing on stage, and multitrack recording of rehearsals or performances. With expansive connectivity, premium XMAX preamps, and uncompromised Thunderbolt speed, the Quantum 2626 delivers a powerful direct-to-DAW workflow tailored for modern music production and performance.

51 Klantenbeoordelingen

4.3 / 5

bediening

features

geluid

afwerking

35 Recensies

V
zeer goede prijs-kwaliteit
Vladib 19.10.2020
Ik gebruik deze interface in mijn home studio, ik heb jarenlang gewerkt met een usb-interface met 2 in- en 2-uitgangen, en het voortdurend versteken van kabels werd wat vermoeiend.
De installatie van de interface gaat vanzelf (op Mac wel opletten: je moet echt lezen wat je aanvinkt tijdens de installatie, en niet gewoon zonder op te letten de door ja Mac aanbevolen optie selecteren: werkt de Quantum zoals hij hoort te werken. Met deze interface ben ik er in geslaagd mijn computer ook als looper te gebruiken -omdat er zo weinig latency is-, iets wat met de usb-interface nooit gelukt is.
De prijs is in vergelijking met andere thunderbolt-interfaces echt laag. ik kan natuurlijk niet vergelijken, maar voor mij is de kwaliteit van de Presonus goed genoeg,
Het software-pakket dat je er bij krijgt is mooi meegenomen, maar vereist wel dat je je bij alle fabrikanten van de plugin's registreert, wat best wel wat tijd vergt. Voorlopig heb ik deze extra software nog niet echt gebruikt, omdat ik al redelijk lang met een vast pakket van plugin's werk, en eigenlijk geen nood heb aan de extra's.
Het enige minpunt dat ik zie is het ontbreken van een thunderbolt-kabel, maar dat blijkt bij andere thunderbolt-interfaces ook het geval te zijn...
bediening
features
geluid
afwerking
1
0
Evaluatie melden

Evaluatie melden

P
Kwaliteits interface
Playerlive 05.11.2022
Fijne interface geen overbodige features maar gewoon goede materialen goede converters enorm makkelijke installatie ( op Mac mini) in logic
Wel even iets ruimte in je rack geven mocht hij daar gemonteerd worden heeft wel iets koeling nodig.
Wat wel handig is om te weten je kunt alleen aangesloten apparaten en plug ins gebruiken als je je daw aan hebt staan op zich geen probleem voor mij maar wel even wennen, hierdoor krijg je er wel ongelooflijk veel kwaliteits geluid voor terug geen latency geen ruis en erg ( stereo) gedefinieerd geluid
1 ster minder voor de bijgeleverde software dit zijn probeer pakketten voor twee weken geldig zonde van je tijd om ze te installeren of je moet het allemaal willen proberen dat is een keus
De prijs is pittig voor deze interface maar geeft bij mij hetzelfde kwaliteits beeld als menige duurdere interfaces ik kon het vergelijken met b v een motu van 1100 euro
Wordt aangesloten met Thunderbolt usb 3 kabel zit er niet bij dus gelijk mee bestellen
Mijn mening is dan ook overall serieus geld maar zeker ook een serieuze interface
als je beginnend bent op dit gebied denk ik dat deze net even teveel kost maar in vergelijking met de prijzen van rond de 300 maak je wel een enorme stap in kwaliteit vooruit
Keep on playing
bediening
features
geluid
afwerking
1
0
Evaluatie melden

Evaluatie melden

D
Topper
Demadde 30.09.2022
Fijn apparaat voor bij je nieuwe mac m1 computer!
bediening
features
geluid
afwerking
1
0
Evaluatie melden

Evaluatie melden

google translate gb
Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.
W
Good sound, but not well designed for a rack form factor
WouterBee 27.12.2021
My intention getting the Persons Quantum 2626 was to replace an (excellent) USB desktop device with a Thunderbolt rack-mounted device, for neatness and good sound quality.

The good:
- Awesome sound, sample rates and (audio) latency specs are through the roof.
- Good quality device, connectors and knobs have a reliable feel to them and look neat.
- Split Phantom power for simultaneous use of condensers and ribbons, pre-amp controls, 2 head set jacks, enough inputs, etc ... all great!
- Universal Control software gives nice insights in what you're recording and looks awesome.

The bad:
- The gripe several reviewers are having is real: it doesn't automatically route the inputs to the outputs and the UC software doesn't let you. Just playing something to your mic for fun without the intention to record won't produce any sound, you NEED to enable your DAW and create appropriate tracks. Quickly worked around with a Logic template and you get used to it, but the first days i had to fiddle and refiddle and refiddle (and i don't mean with the violin).
- It's a rack mounted device, but it has some pretty annoying design choices. The on/off button is on the back, so very hard to reach.
- Also, there are no jack inputs on the back. So, when mounted together with my synth, i can't use some short patch cables to make neat mess-free audio connections. Instead i have cables going from the back of my rack around to the front to reach the jack inputs on the Quantum. Hmmm.
- For some reason, the MIDI ports are just bad. Laggy, irregular events, dropped events, note-on without note-off, etc ... Felt entirely unusable to me. It COULD be a setting somewhere, but the UC software has as good as no settings, and i couldn't find anything in Logic (also, why would a thunderbolt device need to make compromises on transfer speeds?). My Quantum replaced a Fortrite device which worked perfectly MIDI-wise with my exact same setup. I ended up buying a rack mounted dedicated MIDI device and that again works perfectly, same cables, settings, same everything.

So, in conclusion: i bought this device so i could put sample rates and buffer sizes on MAX without worry, get the cable mess off my desktop, and finally use that cool T3 port on my iMac, and it delivers. It looks nice and i'll keep it for sure. But ... it's clumsy to rack-mount, and the MIDI connectors are somehow useless.
