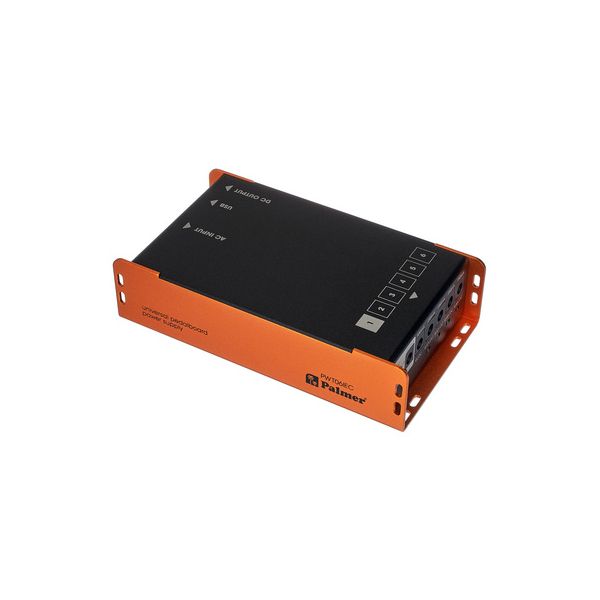

Palmer PWT 06 IEC B-Stock
Effect Pedal Power Supply Unit with USB
- 1 Output with adjustable voltage from 6 - 18 V
- 6 Individually isolated 9V DC hollow pin outputs with centre negative
- Non-isolated 9V DC hollow pin output with 2000mA
- Short-circuit and overload protection for each individual output
- Max. output power: 36 W
- Max. power consumption 54 W
- Controls: Power switch, output voltage selector and switch
- Includes mains cable, 9 x DC cable (30 / 60 cm) and 4 x rubber feet
- Dimensions (W x D x H): 168 x 93 x 42 mm
Connections
- Output 1 - 6: 18 V (250 mA max)
- Output 2: 9 V (500 mA max)
- Output 3 - 4: 9 - 12 V (250 mA max)
- Output 5 - 6: 9 - 18 V (250 mA max)
- Non-isolated DC output 9 V (2000 mA max)
- USB-C and USB-A outputs with a charging power of up to 18 W
- Note: Ambient temperature (in operation) 0 - 40 °C, relative humidity < 80 % (non-condensing)
-
Leverbaar sinds September 2023
-
artikelnummer 626576
-
verkoopseenheid 1 stuk
