Multi-effectpedaal voor elektrische gitaar en basgitaar

  • Krachtige en compacte pedaal met Superior Modeling Technology
  • 7" Multi-touch display
  • 4 Combo voetschakelaars / draaiknoppen
  • Stroomverbruik: 1200 mA
  • Stroomvoorziening met een 12V DC netadapter (inbegrepen bij de levering)
  • Afmetingen (B x D x H): 228 x 118 x 65 mm
  • Gewicht: 1,5 kg
  • Incl. netadapter

Opmerking: Werkt niet op batterijen.

Aansluitingen:

  • Ingang 1: 6,3 mm jack
  • Ingang 2 / capture ingang: 6,3 mm jack / XLR combo
  • Send 1 / 2: 6,3 mm stereo jack
  • Return 1 / 2: 6,3 mm stereo jack
  • Uitgangen 1 / L en 2 / R: 2x XLR
  • Uitgangen 3 / L en 4 / R: 6,3 mm jack
  • MIDI In en Out/Thru: 2x 3,5 mm stereo jack
  • Hoofdtelefoonaansluiting: 3,5 mm stereo jack
  • Capture uitgang: 6,3 mm jack
  • Netadapter aansluiting: Holle connector 5,5 x 2,1 mm, minpool binnen
  • USB C
  • Leverbaar sinds Januari 2026
  • artikelnummer 634079
  • verkoopseenheid 1 stuk
  • Design Floorboard
  • Tube(s) No
  • Amp Modeling Yes
  • Effects Yes
  • Headphone Output Yes
  • Direct Out Yes
  • MIDI Interface Yes
  • Integrated Expression Pedal No
  • Connections for Pedals or Switches Yes
  • Aux-Input Yes
  • Integrated Tuner Yes
  • USB-Port Yes
  • Drum-Computer No
  • Incl. Tuner Yes
  • Integrated Effects Yes
  • MIDI Connector(s) Yes
  • Line Out Yes
  • PSU included Yes
  • Aux Input Yes
  • USB Connection Yes
€ 1.319
Alle prijzen incl. btw
In 6-8 weken beschikbaar
1

Top performance, compact package

The Neural DSP Quad Cortex Mini packs modelling, effects, and capture technology into a single compact multi-effects unit for guitar and bass. Despite its tiny footprint, the Quad Cortex Mini still feaures a 7" touchscreen and four multi-functional footswitches that also double as rotary controls. This user interface allows the player to edit their presets, signal chains, and parameters directly on the device without the need for external editing software. Neural DSP's established modelling platform handles signal processing, which covers amps, cabs, and effects; the overall combination of touchscreen operation, footswitch encoders, and flexible signal routing makes this the ideal multi-effects solution for pedalboards as well as for studio and recording applications.

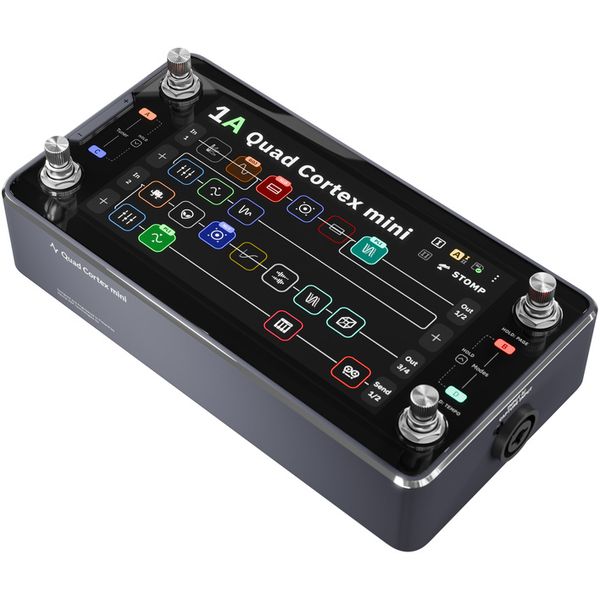

Neural DSP Quad Cortex Mini multi-effects pedal

As direct as it gets

The Neural DSP Quad Cortex Mini is operated primarily via its large touchscreen, where the user can freely arrange their signal blocks into whatever sequence they desire. The parameters of individual effects or amp models can be adjusted either directly via touch or by using the four combination footswitches, which function as preset switches, scene selectors, or encoders depending on which mode is active. In addition to classic effect blocks, high‑quality amp and cab simulations are also on board, allowing flexible integration into mono or stereo setups, and guitarists can even incorporate external effects gear via the send and return connections if they want to put together a hybrid setup. And as if that weren't enough, the capture function even makes it possible to integrate external amplifiers or pedals through dedicated input and output pathways, then record their tonal characteristics and recall them later directly from the device.

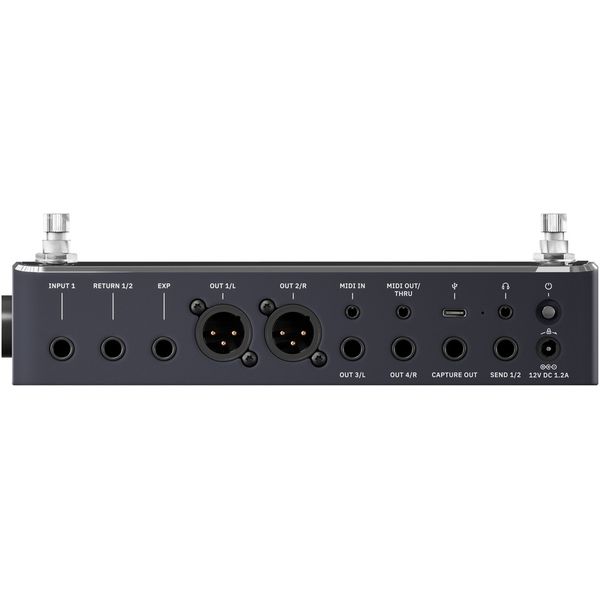

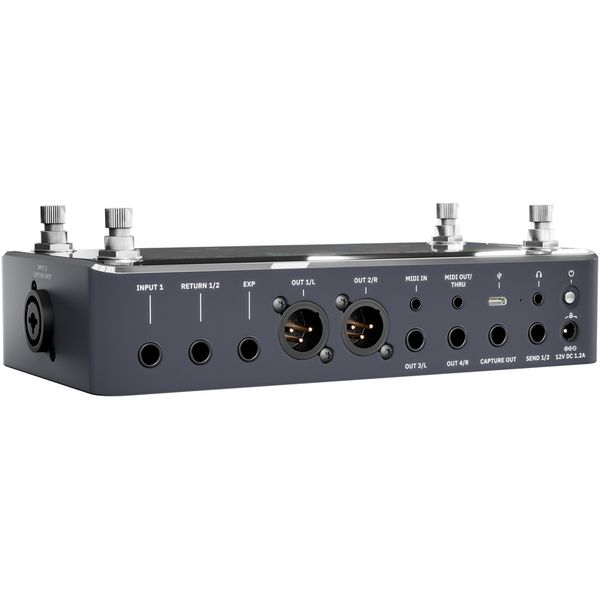

Connections on the rear of the Neural DSP Quad Cortex Mini

Routing and integration

In terms of connectivity, the Neural DSP Quad Cortex Mini features balanced outputs in both XLR and jack formats, allowing the device to be connected directly to PA systems, audio interfaces, or guitar power amps; these are accompanied by two inputs, one of them a capture input in XLR/jack combo format that also provides phantom power for microphones. The Quad Cortex Mini is also equipped with two send and two return channels for external effects as well as a separate capture output, while the MIDI in and MIDI out/thru (each in 3.5mm TRS format) allow the device to be incorporated into more complex control setups. And of course the obligatory headphone output - for monitoring or simply practising in peace - has not been forgotten either. Finally, the Neural DSP Quad Cortex Mini's USB-C port also provides a connection to a computer, so users can integrate it into their recording setup as well as update the firmware with no hassle.

Footswitches on the Neural DSP Quad Cortex Mini

By the pros, for the pros

Guitarists and bassists on the hunt for a compact yet high-performance modelling system that doesn't skimp on connectivity need look no further than the Neural DSP Quad Cortex Mini; its combination of touchscreen operation and hands-on controls makes it equally ideal for in-depth sound programming in the studio and for direct preset editing in a live environment. Players looking to integrate their favourite effects or "capture" the sound of their own amps also have the corresponding options at their fingertips. With the wealth of functions it provides, users will need a little while to get to grips with the Quad Cortex Mini, so it is perhaps best suited to musicians with an active interest in signal routing and sound design; those who are simply looking for plug-and-play presets will of course have plenty to keep them busy, but perhaps not be able to unleash the modeller's full potential.

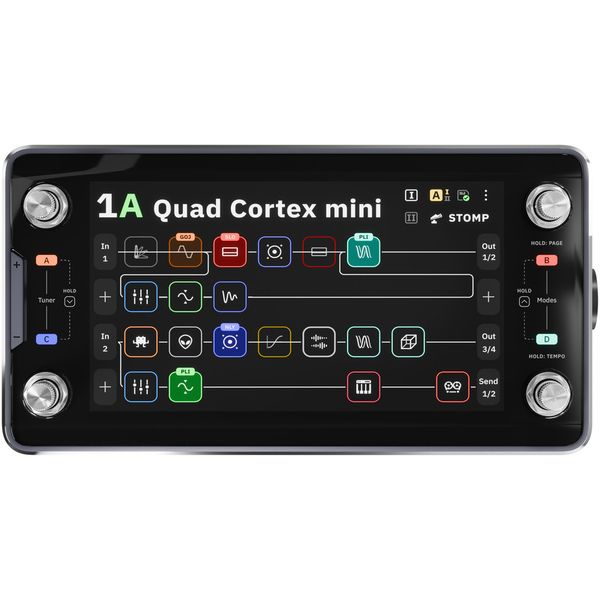

Housing and touchscreen on the Neural DSP Quad Cortex Mini

About Neural DSP

Founded in Finland in 2017, Neural DSP regards itself as a developer and provider of computer-based solutions for the music industry. Inspired by innovative technologies such as advanced algorithms and machine learning, Neural DSP Technologies initially developed software plug-ins. New products have been released at regular intervals, most of which faithfully reproduce legendary amps or, in collaboration with popular guitarists such as Plini and Tosin Abasi, exactly reproduce their characteristic sounds. The Quad Cortex, the first hardware product from the still-young company, was released in 2021 and, true to the company's credo, is intended to bring artists a new level of creative inspiration through technological innovations.

Access all areas

The Neural DSP Quad Cortex Mini is versatile enough for all manner of uses: Home studio users can employ it as the central sound source for direct recordings - including amp simulations, effects, and even re-amping via external gear - while live musicians can run it straight into the PA and simultaneously feed the signal to their on-stage monitors or power amps using the jack outputs. The send and return connections mean that players can keep their favourite pedals in the setup without having to bypass the Quad Cortex Mini's internal effects section, and since it packs a variety of classic pedalboard and amp combinations into its compact footprint, it will even serve as a compact fly rig for rehearsals, sessions, or touring. And this compact modeller is not just for guitarists - bassists too can create their own custom signal chains with whatever amp models and whatever dynamic and modulation effects they choose, without the need for any outboard equipment.

In the spotlight

11 Klantenbeoordelingen

5 / 5

bediening

features

geluid

afwerking

10 Recensies

google translate gb
Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.
B
Bakman 24.01.2026
Amazing Unit for my Desktop , and Backup for Stage .
bediening
features
geluid
afwerking
8
3
Evaluatie melden

Evaluatie melden

google translate gb
Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.
Af
Quad Cortex Mini: First Impressions
Alex from Brussels 24.01.2026
My journey into amp modelers began recently, driven by a desire to explore a wider range of tones especially with my American Stratocaster equipped with single coils. My home setup consists of an Engl Fireball 25 (KT77) paired with a Victory 2x12 closed-back cabinet, which is a perfect match for my primary use case: playing metal. I run only a reverb pedal.
However, a high-gain amp like the Fireball isn’t well suited for SRV-style Strat playing unless supplemented with multiple pedals and effects. I play at home at moderate volume through a real cabinet and have never considered headphones or studio monitors - the feel of a real amp and cab is irreplaceable to me. At the same time, I wasn’t interested in investing in additional amps or a large pedalboard just to gain tonal versatility and that’s why I went trough modelers journey.
Starting with Nano Cortex, which was an absolute failure and is not really suited for this use case (only captures and not models, which translates into low end boomy sound (despite global CAB/IR bypass) when played via amp return and cab), followed by Hotone Ampero II Stage (very nice unit, but sound wise all models sound quite the same, DSP is extremely underpowered, and no customer support available at all) and now it is Neural Quad Cortex mini. Placed an order I think within first 5 minutes when it popped up on Thomann. Price could have been another 100 EUR lower, but still look at the demand.

First impressions – wow!

What a variety of tones, routing capabilities, DSP power (you can blend in four amps and it still handles) and the sense of real tube amp (same dynamic response and openness). User interface could have been better (the of one of Hotone is definitely), but it looks like its main purpose to be controlled by foot, so a lot of stuff makes sense – like dual footswitch operation, still getting used to. Reverbs are simply mid blowing. I also tried 4 cable method and that's incredible by having a possibility to switch back and forth between tube amplifier's preamp and models.

Despite power brick is mentioned as not included it comes in a box.

P.S. I had some issues with gain staging (boomy sound), but with the help of Neural community and feedback from Thomann it was sorted out.
bediening
features
geluid
afwerking
7
1
Evaluatie melden

Evaluatie melden

google translate de
Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.
S
Langer Zweifler, jetzt überzeugt
Stefan3429 01.02.2026
Fazit vorweg: das Teil ist der Hammer und sein Geld Wert. Selten so viel Spaß gehabt beim Spielen!

Ich habe alles an Modellern durch von günstig bis teuer (Boss, Line6 (das Stadium nicht), Fractal, Kemper, Sonicake, Hotone und co., nur Headrush nicht) und keins der anderen Geräte kommt an die Bedienung vom QC ran. Der Kemper Player war mein Favorit bislang und wird auch bleiben weil Form und Sound super sind, aber für schnelle Änderungen an Effekten und der Signal Chain ist es auch mit der mobile App schwierig (instabile Verbindung und mangelnde Dokumentation der WiFi Modi im Handbuch). Das Morphing vom Kemper ist hingegen dem „Pendant“ des QC aufgrund der Einfachheit überlegen. Mit allem an Effekten ist man hier halt auch bei 1000€.

Nun aber zum QCMini - es passt perfekt auf den Schreibtisch, ist ein solider, massiver Block der nur an dem Hochglanzmetall am Rand empfindlich ist und hat einfach alles an I/Os die man braucht.

Was für mich das Gerät aber zum Standard macht, ist die Standalone-Nutzung. Kein pc, keine App, nix! Und dann sogar noch ein brauchbares Metronom und einen klasse Looper mit dabei. Da brauche ich auch kein Bluetooth oder so für backing tracks.

Der Sound löst bekanntlich nichts an Wünschen übrig, das sollte aber mittlerweile jeder wissen.

Also: auch wenn es viel Geld ist, verkauft altes Gear und den Opel Corsa und holt es euch!
bediening
features
geluid
afwerking
11
0
Evaluatie melden

Evaluatie melden

google translate de
Helaas is er een fout opgetreden, probeert u het a.u.b. later nogmaals.
A
Ein Traum
Andy22 24.01.2026
Genau was ich gesucht habe.
Kleine als der große Bruder, aber ohne Einschränkungen.
Der Stromverbrauch ist ebenfalls geringer, was die mobile Powerversorgung erleichtern sollte aber immer noch kompliziert gestaltet.Hier sollte N DSP was eigenes auf den Markt bringen, das wäre mein einziger Wunsch für die Zukunft, der Rest läuft scheinbar alleine.
Hatte Glück am Release Date Abend im Netz zu sein und hab ein ergattert
Gebe es nicht mehr her :-)
bediening
features
geluid
afwerking
11
1
Evaluatie melden

Evaluatie melden
