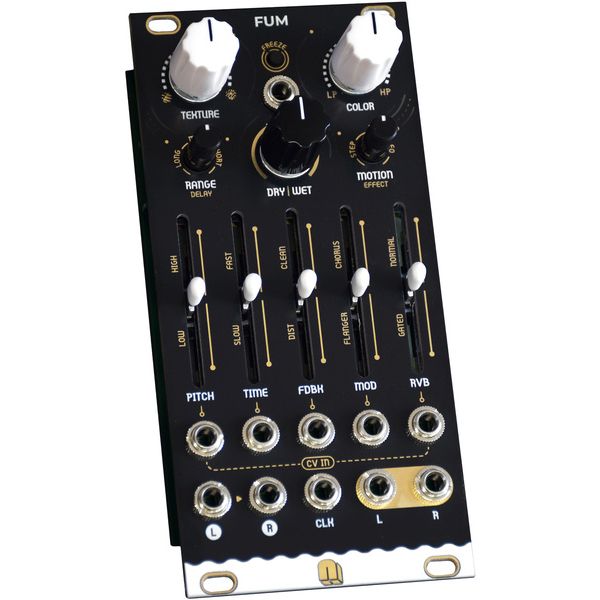

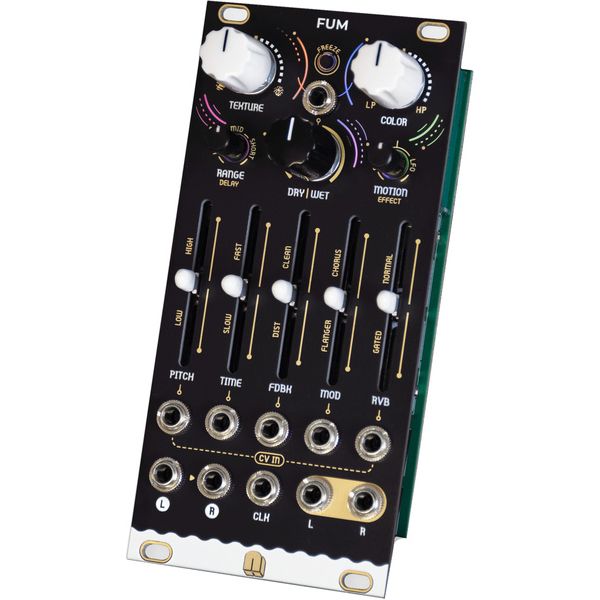

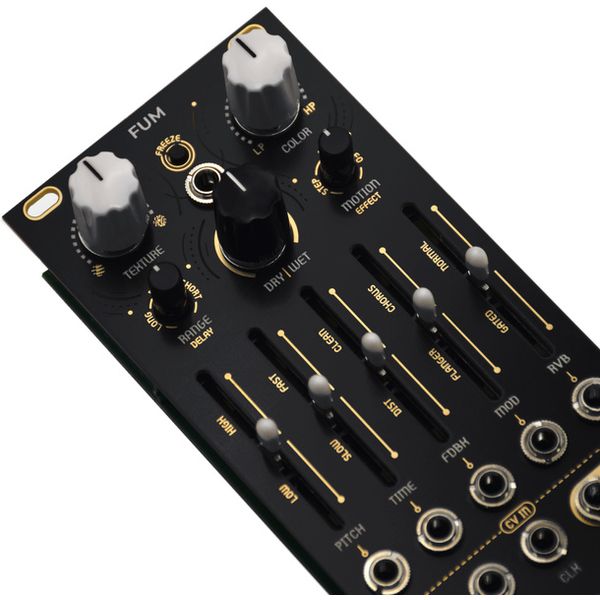

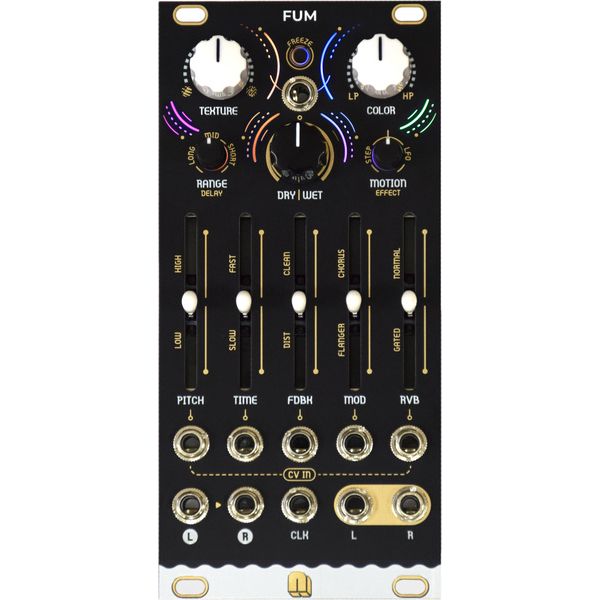

NANO Modules FUM

Start 360°

Eurorack Module

Stereo Multi-Effects Processor with six Internal Effects Blocks
Stereo ping-pong delay with three selectable time ranges: Short, Mid, Long
Time fader
Clock input with automatic synchronisation
Feedback control with two tone characteristics (clean / distorted) and a freeze button
Reverb with adjustable reverb time and 2 algorithms: Reverb / Gated
Pitch shifter with feedback loop for shimmer effects – range: +/- 1 octave
Flanger / Chorus effect
Synchronised to the delay time
Texture-Generator: Granular-Rumble / White Noise
DJ filter: Low-pass / high-pass
Dry/Wet control with CV input
Internal modulator (switchable between Sample & Hold and Triangle LFO) for modulating the mix, delay time, pitch, flanger/chorus and texture
Alternative modes can be selected for the Texture, Colour and Wet/Dry parameters
CV inputs for pitch, time, feedback, modulation and reverb
Click CV input
Stereo inputs and outputs
Power requirement: 150 mA (+12 V) / 7 mA (-12 V)
Width: 12 HP
Depth: 25 mm
