Multi-effectapparaat voor elektrische gitaar

  • 8 effecten in één kast: Boost, Overdrive, Distortion, Tremolo, Phaser, Chorus / Flanger, Delay, Reverb
  • Geen menu's, maar besturingselementen voor elke parameter
  • Geïntegreerde tuner
  • Verschillende routing-opties
  • Geïntegreerde luidsprekersimulatie
  • Afzonderlijke voetschakelaars voor Drive, Dist, Mod, Delay, Reverb en Tap / Tuner
  • Live- en preset-modus
  • Pure Boost Section Controls voor Boost, Bass en Treble
  • Aan / Uit-tuimelschakelaar om de Pure Boost in of uit te schakelen
  • Drive Section Controls voor Level, Rate and Depth
  • Distortion Section Controls voor Treble Mid Bass, Level en Gain
  • Mid Boost-tuimelschakelaar voor extra centerboost
  • Mod Section Controls voor niveau, snelheid en diepte
  • Modulatie Tap Tempo Division Knob om de Tap Tempo-onderverdeling aan te passen (hele, halve noten, kwart, achtste, triolen, zestiende noten, willekeurig)
  • Tuimelschakelaar om het modulatie-effect te selecteren (tremolo, phaser, chorus / flanger)
  • Delay sectie-instellingen voor Level, Time en Feedback
  • Delay Tap Tempo Division Knob om de Tap Tempo-onderverdeling aan te passen (1/4, 1/8, 1/16, 1/4 T, 1 / 4D, 1 / 8T, 1 / 8D)
  • Tuimelschakelaar om de delaymodus te selecteren (Analog, Echo, Digital)
  • Reverb Section Controls voor Level, Decay, Tone, Shimmer, Mod Depth en Mod Rate
  • Status-LED's
  • LED-display voor tuner / preset-modus
  • 6.3mm mono jack-ingang
  • 2x 6.3mm mono (L / R) uitgangen
  • 1/4 "mono send (send / return) effecten loop
  • 6.3mm stereo jack koptelefoon / luidspreker simulatie-uitgang
  • Voeding via optionele 9 V DC voeding met 2,1 x 5,5 mm vatconnector en polariteit (-) aan de binnenkant (Mooer PDNW-9V2A-MP - niet inbegrepen)
  • Stroomverbruik 300 mA
  • Afmetingen (L x B x H): 370 x 96 x 51 mm
  • Gewicht: 1.200 g
  • Inclusief case

Opmerking: geen werking met batterij mogelijk.

Opmerking: Registreer uw product op www.w-distribution.com/ Garantie en verleng de garantie tot 4 jaar.

Let op! Registreer uw aankoop op shop.warwick.de/en/warranty-registration voor een verlengde garantie van 4 jaar.
Leverbaar sinds Juli 2017
artikelnummer 415594
verkoopseenheid 1 stuk
Design Floorboard
Tube(s) No
Amp Modeling Yes
Effects Yes
Headphone Output Yes
Direct Out Yes
MIDI Interface No
Integrated Expression Pedal No
Connections for Pedals or Switches No
Aux-Input No
Integrated Tuner Yes
USB-Port No
Drum-Computer No
Incl. Tuner Yes
Line Out Yes
Toon meer
€ 227
Alle prijzen incl. btw
Direct leverbaar
Direct leverbaar

Dit product is op voorraad en kan direct verzonden worden.

Informatie over de verzending
1

Outstanding simplicity and usability

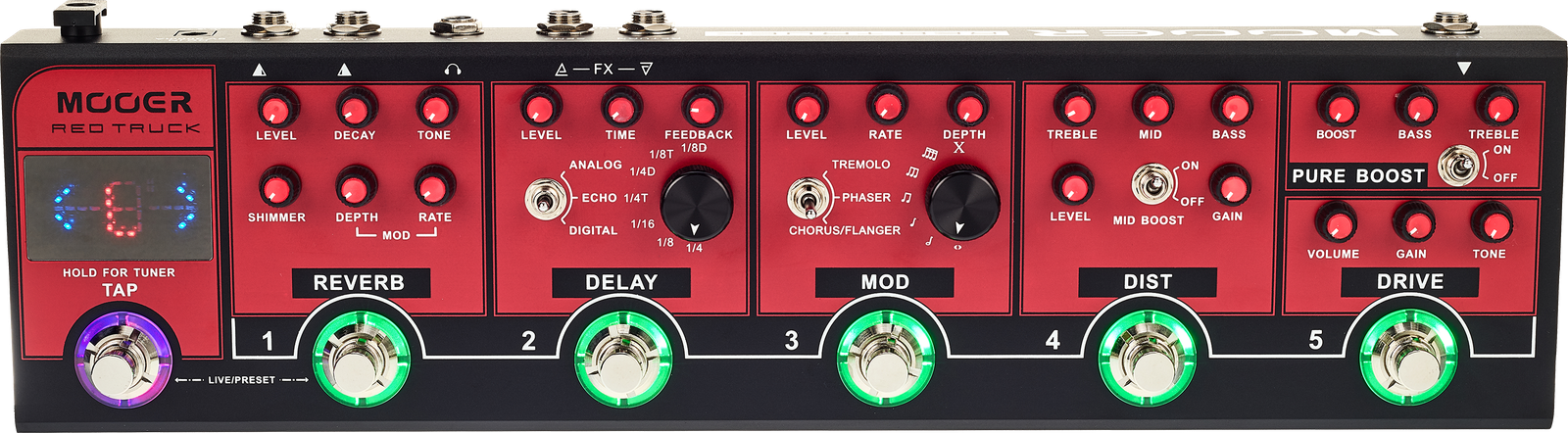

Front view of Mooer Red Truck effects pedal

With the Red Truck multi-effects pedal, Mooer presents the ideal no-frills solution for all guitarists who want to keep it simple and spare themselves the hassle of scrolling through virtually endless menus to find the desired sound settings. Its robust metal chassis with a clear and user-friendly layout is packed with six of the most important guitar effects and allows instant access to each individual parameter via designated pedal sections, including booster, distortion, overdrive, reverb, delay/echo, and various modulation effects. On its rear panel, the multi-effects pedal features an FX loop that allows additional effects to be integrated into the signal chain alongside a pair of stereo line outputs and a headphone output with integrated speaker cab simulation that delivers high-quality audio signals for direct recording. The scope of delivery of the Mooer Red Truck also includes a handy transport case.

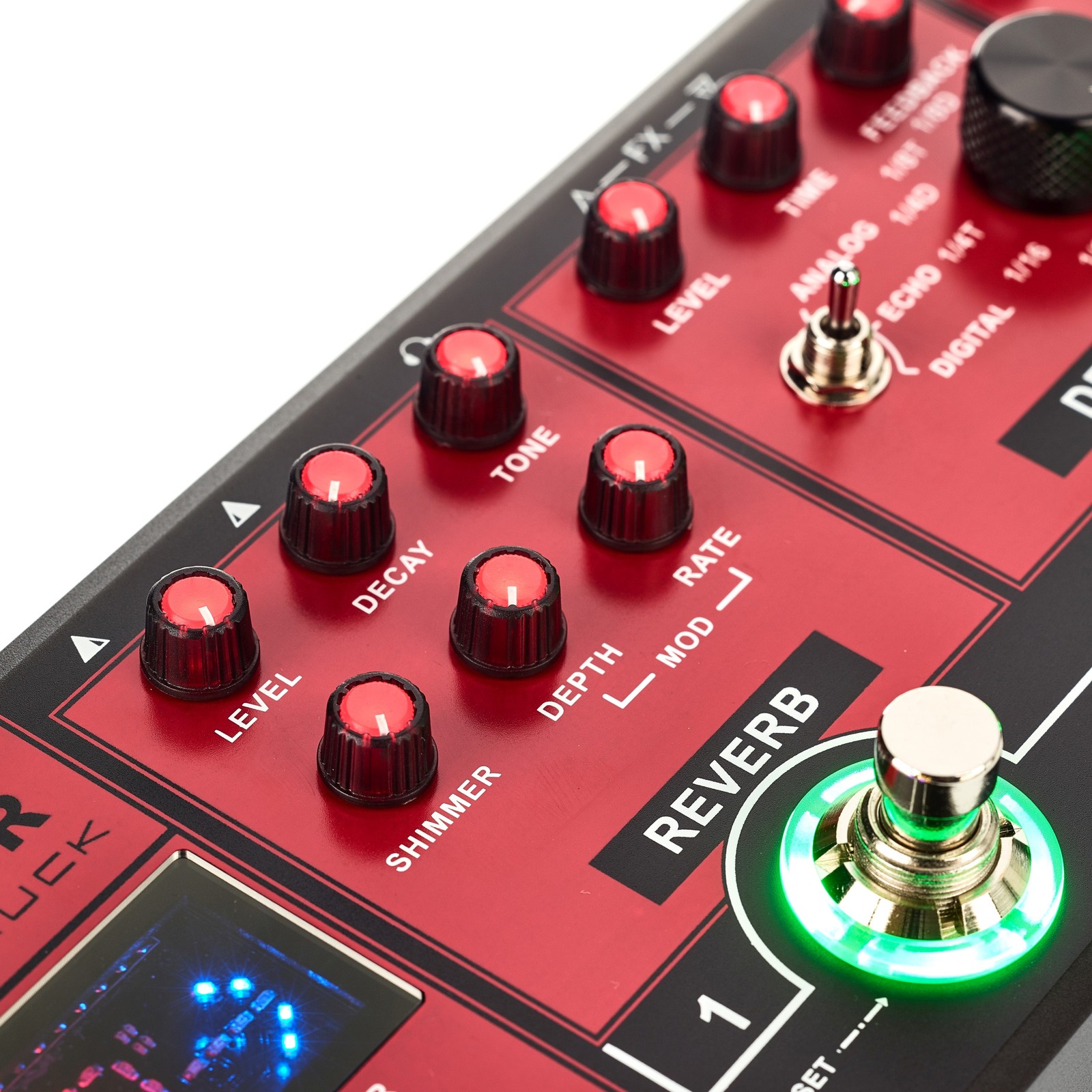

Mooer Red Truck control elements in the Reverb effects section

Signature sound in seconds

The Red Truck sound shaping sequence starts in the upper right corner of the user interface with a booster to "thicken" the guitar input signal using a two-band EQ, and continues in the Drive section, which allows a natural-sounding overdrive to be added to the tone. This is followed by a Distortion module with an iconic British-style amp sound that comprises a three-band EQ and a mid-boost, a Mod module with essential modulation effects (chorus/flanger, phaser, and tremolo) and a tempo divide function for creating rhythm pattern variations, and a Delay module with three different types of delay (analogue, echo, and digital) as well as seven sub-division functions for further adjustments. Users can also control the speed of the delay and modulation effects by foot using the Tap switch on the unit's left-hand side. Finally, the Reverb module allows shimmer and other modulations to be added to the sound in order to recreate the ambience and depth of rooms of all sizes, from a small bathroom to a spacious cathedral.

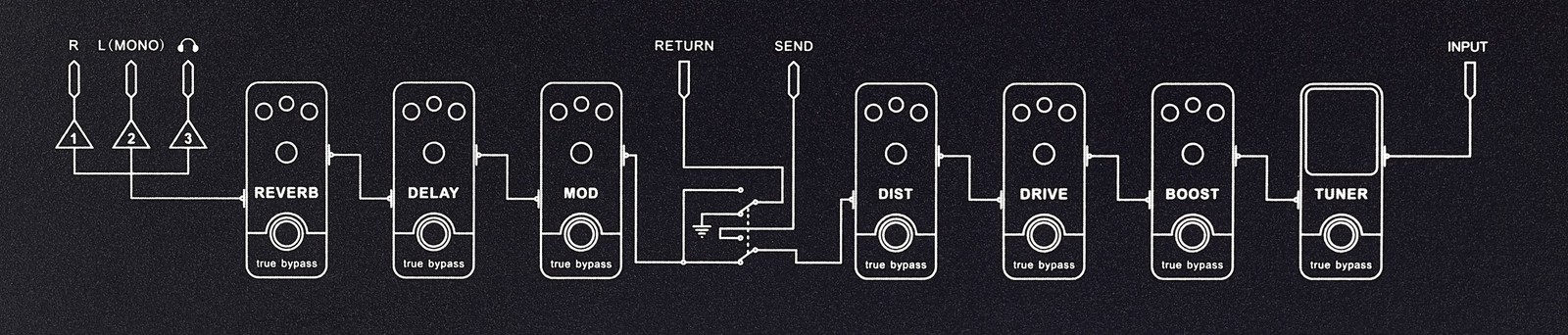

Underside of the Mooer Red Truck with information about the effects sequence
Tuner on the Mooer Red Truck

Live and Preset modes

Since no multi-effects pedal is complete without a display, the Mooer Red Truck also features a compact LCD screen that provides the most essential information about the tuning function and the pedal's current operating mode. The Red Truck offers two modes: Live mode enables the control elements to respond in real time to the settings made by the user and the effects modules to be switched on and off using the corresponding illuminated footswitches, whereas Preset mode alternatively allows the five footswitches to be used to recall previously saved presets. Users can easily switch between the two operating modes by pressing the Tap and Reverb switches simultaneously.

All essential features on board

Featuring six of the most important effects in a compact floorboard unit with a simple and intuitive layout, the Mooer Red Truck is the ideal solution for shaping and creating full-fledged sounds using an entire effects chain in next to no time. This multi-FX pedal, which is easy to stow away and transport in a gig bag or case thanks to its ultra-slim design and low weight, will make life significantly easier for guitarists by frequently sparing them the hassle of lugging around an entire arsenal of heavy equipment, such as an amp, speaker cabs, and perhaps even a pedalboard, especially for live gigs. What is more, its practical connectivity, authentically throaty British amp sound, and high-quality effects allow the Mooer Red Truck to be flexibly used for a wide variety of applications and effortlessly cover a broad sonic palette – from transparent and warm-sounding settings through to edgy and punchy tones with appealing dynamics.

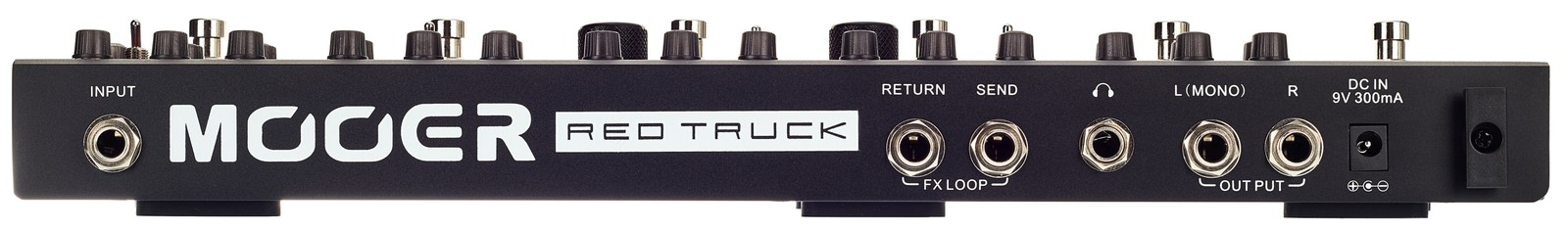

Rear panel connections of the Mooer Red Truck
Mooer logo on the rear side of the Red Truck

About Mooer

Mooer is based in the Chinese city of Shenzhen and has been making products for guitarists since 2010, which include compact single pedals through to multi-effects units and compact amplifiers. The company initially produced a range of mini pedals before making perhaps its most significant breakthrough in 2016 with the sophisticated Ocean Machine delay pedal, which was designed in collaboration with Devin Townsend. Mooer's product range now also includes solutions that feature amp modelling, IR-based speaker simulation, and matching equalisers, and the company's focus remains firmly on the use of digital technology.

A powerful package to rock the stage

The versatile Red Truck multi-FX pedal from Mooer can be connected in between the instrument and the amplifier in the conventional way or operated in the amp's FX loop using the four-cable method, but it also allows an entire rig comprising a power amp and one or more speaker cabs to be created using its stereo outputs, putting virtually unlimited sonic possibilities at the user's fingertips. No matter what setup a guitarist prefers, the compact and robust Red Truck will always make a convincing case thanks to its authentic British sound characteristics, lively dynamics, and an intuitive, easy-to-use interface that does not require users to read through lengthy operating manuals beforehand. The Mooer Red Truck can be operated using any conventional 9V adapter (available separately) for connection to a power source.
