Kramer 860

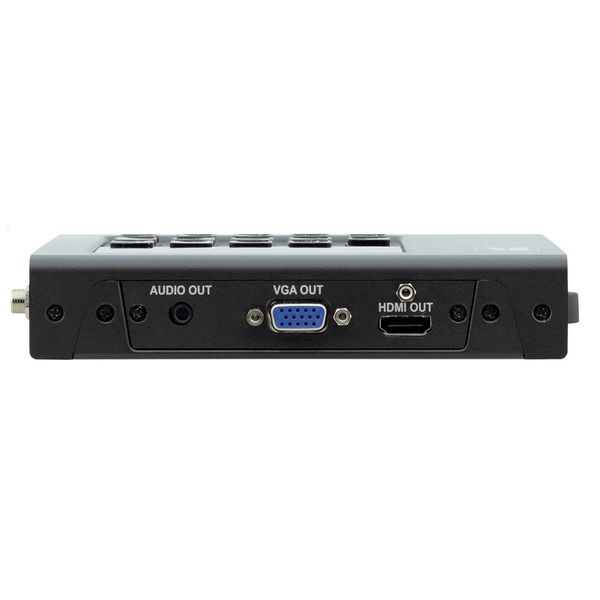

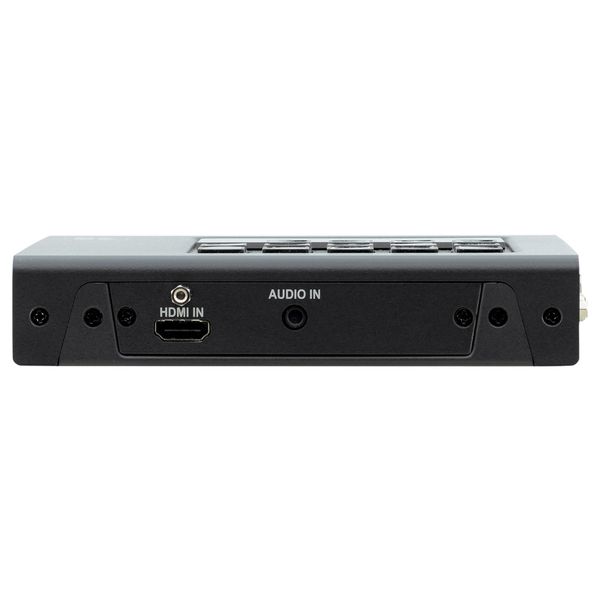

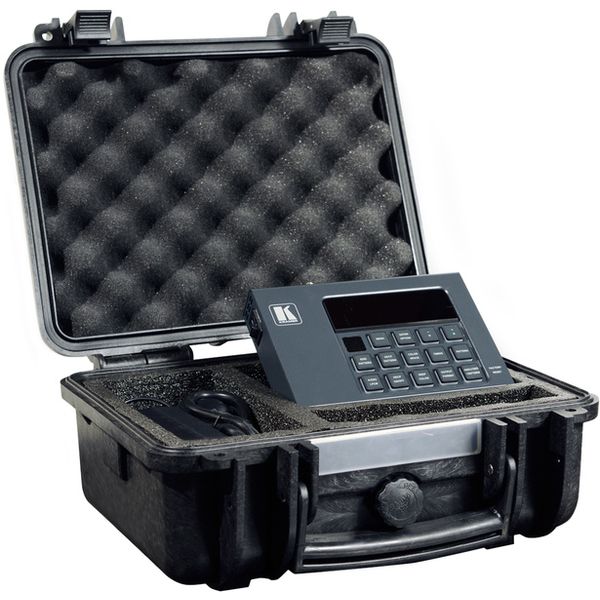

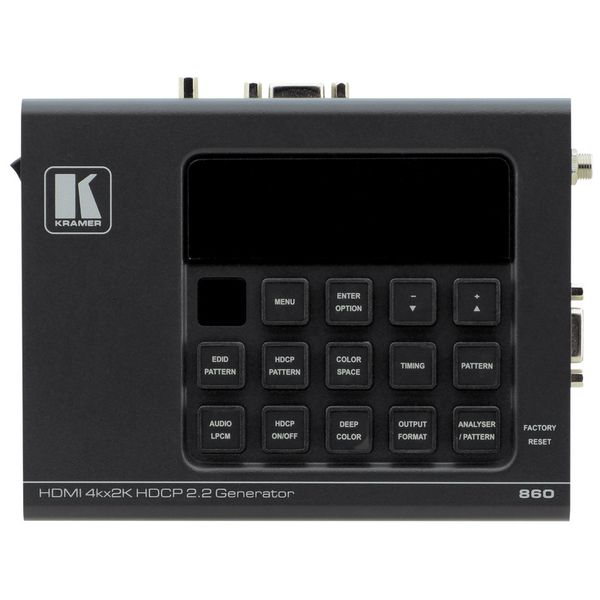

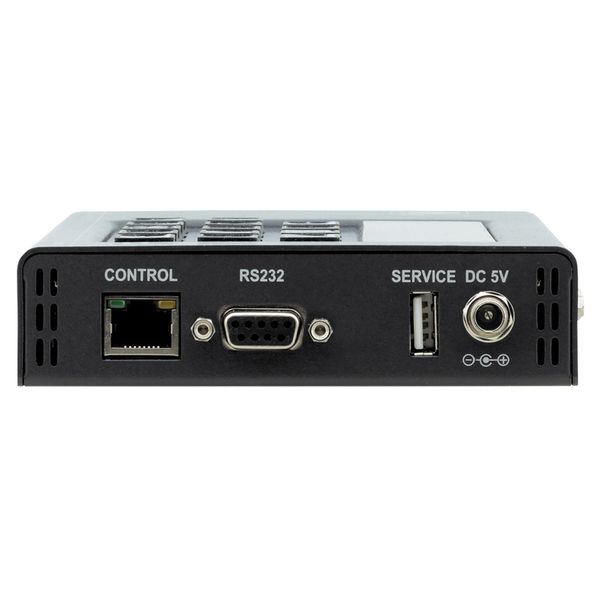

Kramer 860; HDMI 18G 4K60 Signal Generator and Analyzer; for generating, testing, and verifying signals in systems up to 4K @60 Hz (4:4:4) HDMI 2.0/HDCP 2.2; 88 resolutions, 55 test patterns; more than a dozen AV analysis functions; resolutions up to 4K @60 Hz (4:4:4); HDR10, HDMI 2.0, HDCP 2.2, and HDCP 1.4 compliant; data path analysis: source and sink of HDMI signals up to 18G (6G per graphics channel); HDMI data packet analysis; HDCP 1.4 and 2.2 analysis and monitoring; EDID data analysis and emulation, including SCDC; audio input signal analysis; HDR bypass and analysis support; HDMI Timing Generator: Up to 4096×2160 @60 Hz (4:4:4), 8-bit; LPCM sine wave audio generation; includes waterproof transport case; Technical Data: Inputs: 1x HDMI, 1x unbalanced stereo audio (2 Vrms max. 20 kO) with 3.5 mm jack, 1x RS-232 with DB9 connector, 1x Ethernet with RJ-45 connector, 1x USB; Outputs: 1x HDMI, 1x VGA with HD15 connector, 1x unbalanced stereo audio (2 Vrms max. 560 O) with 3.5 mm jack; Control: Device buttons with OLED display, OSD, RS-232, IR remote control and Ethernet; Max. data rate: 18 Gbit/s (6 Gbit/s per graphics channel); ESD protection: ±8 kV (air gap), ±4 kV (contact) according to HBM (Human Body Model); Current consumption: 1.6 A, 5 VDC; Dimensions: 16.5 x 13.2 x 3.0 cm; Weight: 0.8 kg; Included accessories: IR remote control, power adapter
