McDSP APB-16
Analoge processing box
- 16-Kanaals analoge processor met plug-in bediening
- Biedt mixer-simulatie, hybride EQ en 9 verschillende analoge dynamische processors voor mixing en mastering
- TAPE: Analoge emulatie van magneetband recorders met viertraps processing, selecteerbare bandtype en karakteristieken van de leeskop en instelbare bandcompressie
- BOB: Bass optimalisatie met gecontroleerde compressie voor de lage frequenties
- KD-1 Kinetic Drive: Analoge saturation met 3 circuitvarianten, Kinetics-regeling en frequentiespecifieke toepassing
- Royal Mu: Tweekanaals compressor/limiter met MS-modus en sidechain
- Royal Q: Hybride equalizer met 2 x 4 banden, analoge uitgangstrap en MS-modus
- MC-3: Multibandcompressor met 3 banden
- Moo X: Hybride mengpaneel met kanaal EQ, analoge compressor en saturation, evenals master-sectie met analoge stereo compressor en saturation
- C673-A: Dynamic range compressor die gericht is op het geluid van de Fairchild 670
- EL MOO: buizen-limiter met analoge saturation
- MOO Tube: Compressor met een subtiel karakter voor een breed scala aan toepassingen
- ChickenHead: Agressieve compressor met een eigen klankkarakter
- L-18: Transparante limiter voor allerlei toepassingen en surround-ondersteuning tot 7.1.2 in Avid Pro Tools Ultimate (niet voor AU, VST3)
- C-18: Universele compressor met een neutrale klank
- 32-Bits converter
- Ondersteunde sample rates: 44,1, 48, 88,2, 96, 176,4, 192 kHz
- Frequentiebereik: 10 - 20.000 Hz +/-0,005 dB
- Signaal-ruisverhouding: 113 dB A-gewogen
- THD+N: 0,02%
- Ondersteunde DAW's: Ableton Live 11 min., Avid Pro Tools 12 min., Apple Logic Pro X 10.4 min., Steinberg Cubase / Nuendo 10.x min., Universal Audio LUNA
- Afmetingen: 483 x 44 x 406 mm
- Shipping Format: Box without Data Storage
- License validity: perpetual
- Copy Protection: iLok 2 / iLok 3 (401447) / iLok Cloud
- Simultaneous Activations: 1
- Windows: not supported
- Mac OS (64 Bit): from 10.13
- CPU min.: Apple Silicon, Intel Core
- CPU compatibility: Apple Intel, Apple Silicon, Windows AMD, Windows Intel
- add. System requirements: Internet Connection for Installation and Activation, free Thunderbolt 2,3 or 4 Connector, Word-Clock Connection from Audiointerface, iLok License Manager
- AAX native 64-Bit
- AU 64-Bit
- VST3 64-Bit
-
Leverbaar sinds November 2019
-
artikelnummer 472694
-
verkoopseenheid 1 stuk
-
Compressor Yes
-
Gate Yes
-
Peak Limiter Yes
-
2-Channel Unit No
-
Attack/Release Adjustable Yes

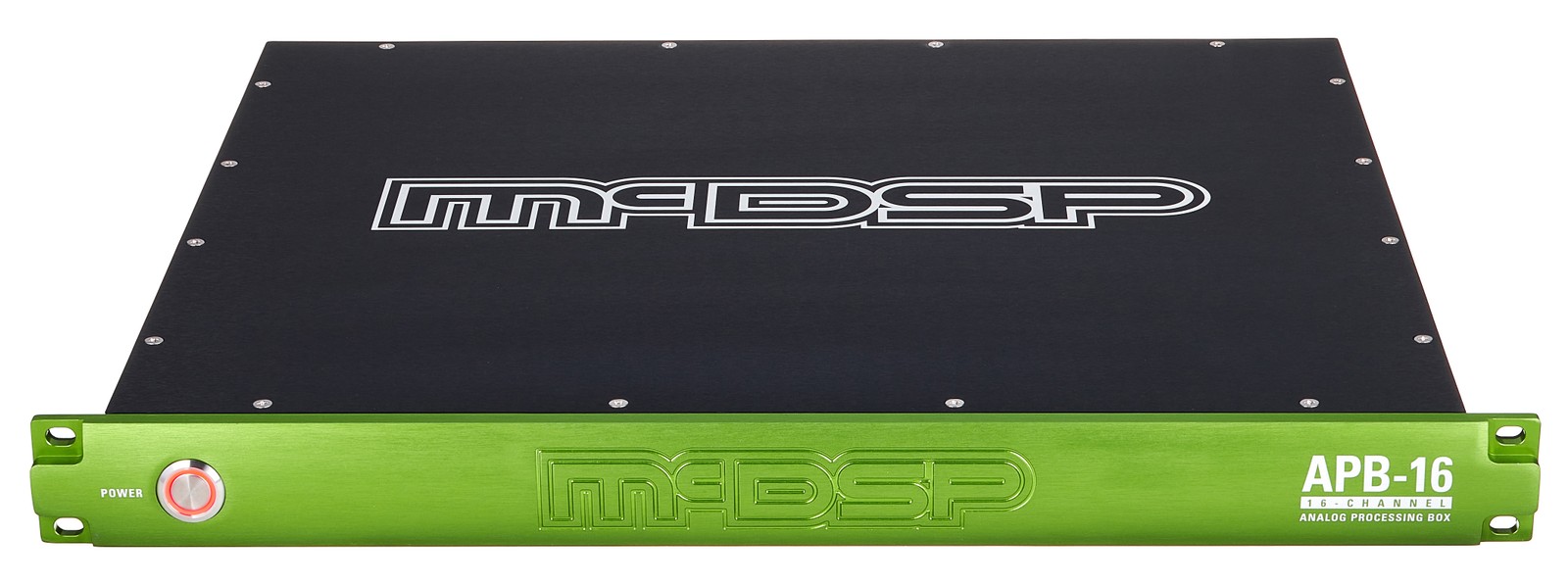

The 1U analogue outboard rack
The McDSP APB-16 blends true analogue signal processing with plug-in control across up to 16 audio channels, providing exceptional analogue sound alongside seamless DAW integration. Signals flow to and from the DAW through high-quality 32-bit converters, all routed via a single Thunderbolt connection – eliminating the complex cabling typical of traditional outboard gear. Designed to adapt to the user's workflow, the APB-16 features channel strips, dynamic processing, and saturation for up to 16 tracks, doubling the power of its smaller sibling, the APB-8. Included is a growing collection of versatile, high-impact plug-ins, many inspired by classic vintage processors, with a strong emphasis on compression and saturation.
Analogue sound, digital control
The McDSP APB-16 combines high-quality 32-bit converters with rich analogue circuitry, transformed into a suite of powerful analogue processors through plug-ins compatible with VST3, AU, and AAX. Once installed, the hardware seamlessly integrates into the rack, indeed it virtually disappears, requiring no direct interaction – it's controlled entirely through plug-ins. Users simply assign the desired functions, which appear in the DAW just like familiar DSP-based plug-ins. From a robust mixer simulation to nine distinct dynamics processors designed for both mixing and mastering, the APB-16 provides flexible, multi-instance use, covering a broad sonic palette and truly excelling in areas where digital emulations still fall short.
)
Perfect professional workhorse
McDSP has attracted an impressive roster of high-profile users – understandably so, given that the APB system is perfectly suited to busy professionals who, whether by choice or necessity, work "in-the-box" yet still crave the warmth and authenticity of true analogue sound. With the APB-16, uncompromising audio quality, streamlined workflows, and intuitive operation come together effortlessly, eliminating the usual trade-offs. While this level of sophistication comes at a cost, the APB-16 quickly proves its value when compared to the expense of the equivalent standalone gear. Designed to handle up to 16 tracks, the APB-16 is widely regarded as a powerhouse in the professional world and is often expanded into cascading systems with up to 64 tracks, delivering immense processing capabilities.
)
)
About McDSP
Founded in 1998 in Silicon Valley, California, McDSP has established itself as a leader in professional audio processing. The company, spearheaded by Colin McDowell, initially gained recognition for its range of innovative plug-ins, some of which have been integrated into popular DAWs. In 2019, McDowell broke new ground with the launch of the Analog Processing Box (APB), a fully programmable multi-channel analogue processor – the first of its kind globally. The APB system remains unparalleled and has become a staple in numerous high-profile mixing and mastering studios, particularly in the United States.
A big brother with 16 tracks
Compared to its smaller sibling, the APB-8, the 16-track APB-16 delivers twice the processing power, allowing double the number of plug-ins and audio tracks to run simultaneously – and with the option to cascade multiple units, even more performance is possible. This flexibility makes it easy to route an entire, even highly complex, mix through the APB-16, all without the usual drawbacks of traditional outboard gear – no complicated cabling, no frustrating gain staging, and total recall at the user's fingertips. The result is a crisp, modern analogue sound of the highest quality, seamlessly integrated into a computer-based setup. Aside from a Mac, an audio interface, and a compatible DAW, no additional hardware is needed to process up to 16 tracks in true analogue quality – but all "in the box".
