M-Audio AIR 192|14 B-Stock
B-Stock, M-Audio AIR 192|14; USB Audio Interface; high quality converters with 24 Bit / 192 kHz resolution; high-speed USB-C port; direct monitoring; large central volume knob; low-noise M-Audio Crystal™ preamps; +48V phantom power on channels 1-4; 4x microphone/line input (XLR/TRS Combo Jack); 2x instrument input (6,3 mm TS); 2x line input (6,3 mm TRS); 4x line output (6,3 mm TRS); 2x headphone output (6,3 mm TRS); MIDI input/output (3,5 mm TRS, DIN-adapter included); rugged metal enclosure; dimensions: 259 x 189 x 82 mm; weight: 1,8 kg; compatible with Win7 or higher, class-compliant with Mac OS X; including: PSU (12V AC), software package (download) Ableton Live Lite, Creative FX Collection, Xpand!2, Mini Grand, DB33, Strike, Hybrid 3, Touch Loops, Revalver - 2x Amps, 3x Cabs, 3x Mics, 3x Effects, MPC Beats, B-Stock with full warranty, may have slight traces of use
-
artikelnummer 480305
-
verkoopseenheid 1 stuk
-
Recording / Playback Channels 8x4
-
Number of Mic Inputs 4
-
Number of Line Inputs 6
-
Instrument Inputs 2
-
Number of Line Outs 4
-
Headphone Outs 2
-
Phantom Power Yes
-
Number of S/PDIF Connectors 0
-
Number of ADAT Connectors 0
-
Numer of AES/EBU Connectors 0
-
Number of MADI Connectors 0
-
Ethernet 0
-
Other Connectors USB
-
MIDI interface Yes
-
Word Clock No
-
Max. Sampling Rate in kHz 192 kHz
-
Max. Resolution Rate in Bits 24 bit
-
USB Bus-Powered No
-
Incl. power supply Yes
-
USB Version 2.0
-
Width 259 mm
-
Depth 189 mm
-
Height 82 mm
-
Connection Format USB port Type C
-
Included in delivery Power Supply, MIDI Adaptor 2x, Software
-
Zero latency monitoring Yes
-
Compact recording hardware
The M-Audio AIR 192|14 is an audio interface that is capable of making high-quality recordings in a resolution of up to 192kHz and 24Bit. It is equipped with eight inputs and four outputs, as well as MIDI connectivity options. The intuitive user interface allows the gain for all six channels to be adjusted comfortably. With the large central encoder, users can control the volume of the playback easily and quicky. Moreover, the M-Audio AIR 192|14 offers low-noise preamps, switchable direct monitoring, and two dedicated inputs for electric guitar or bass, as well as two headphone outputs. Thanks to its small size and its flexible connectivity options, this compact recording hardware is the ideal companion in every recording situation.
)
Flexible I/Os for every recording

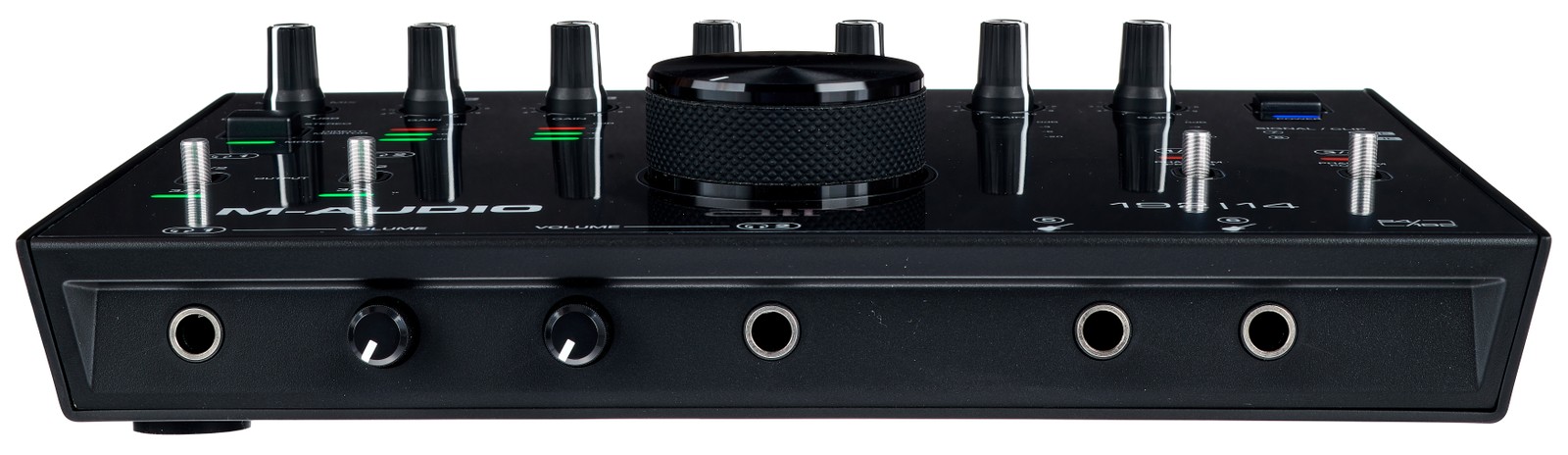

On the front panel, users can find two dedicated line inputs for sources with a high impedance like electric guitars or basses. These inputs are equipped with impedance adjustment and a special preamp, whose gain can be controlled via an encoder on the right side of the user interface. The four XLR/TRS mic/line inputs allow users to connect not only microphones, but also keyboards with 6.3mm jack cables. With the flick of a switch, inputs 1/2 and 3/4 can be supplied with 48V phantom power, in order to use connected condenser microphones. The main output in stereo is to be found on the rear side in 6.3mm jack format; the two headphone outputs use the same formatsand are to be found on the front side. Using two mini jack adapters, users can connect 5-pin MIDI cables on the rear side, which is especially useful when sending data to external analogue synthesizers.
)
For first-time users and studio experts
The M-Audio AIR 192|14 is great alternative for recording engineers' studios – despite its compact dimensions, its volume knob is hard to overlook. And thanks to its small size it's ideal for mobile applications, with its robust audio interface making it more than suitable for everyday use. Newcomers to the recording world, i.e. those who don't yet have their own DAW, will be glad to find that the package includes a special version of Pro Tools First | M-Audio, as well as Ableton Live Lite. The Pro Tools version here includes the virtual instruments Xpand!2, Mini Grand, Vacuum, BOOM, DB33, Strike, and Hybrid 3.0, with which users can play drums, synthesizers, strings, and organs. Added to that, they can also make use of 2GB of Touch Loops content for creative music productions.
)
About M-Audio
M-Audio is one of the best-known manufacturers of MIDI controllers, audio and MIDI interfaces, monitor boxes, and other studio equipment. Founded in 1988 under the name Midiman, the company quickly made a name for itself, always focusing on practical features and value for money. With the successful Oxygen series, M-Audio was instrumental in establishing the genre of MIDI controller keyboards for DAW-based studios. For a time, M-Audio was part of Digidesign / Avid. The brand is now part of the inMusic group and its success story continues to this day.
Low-latency monitoring for every session

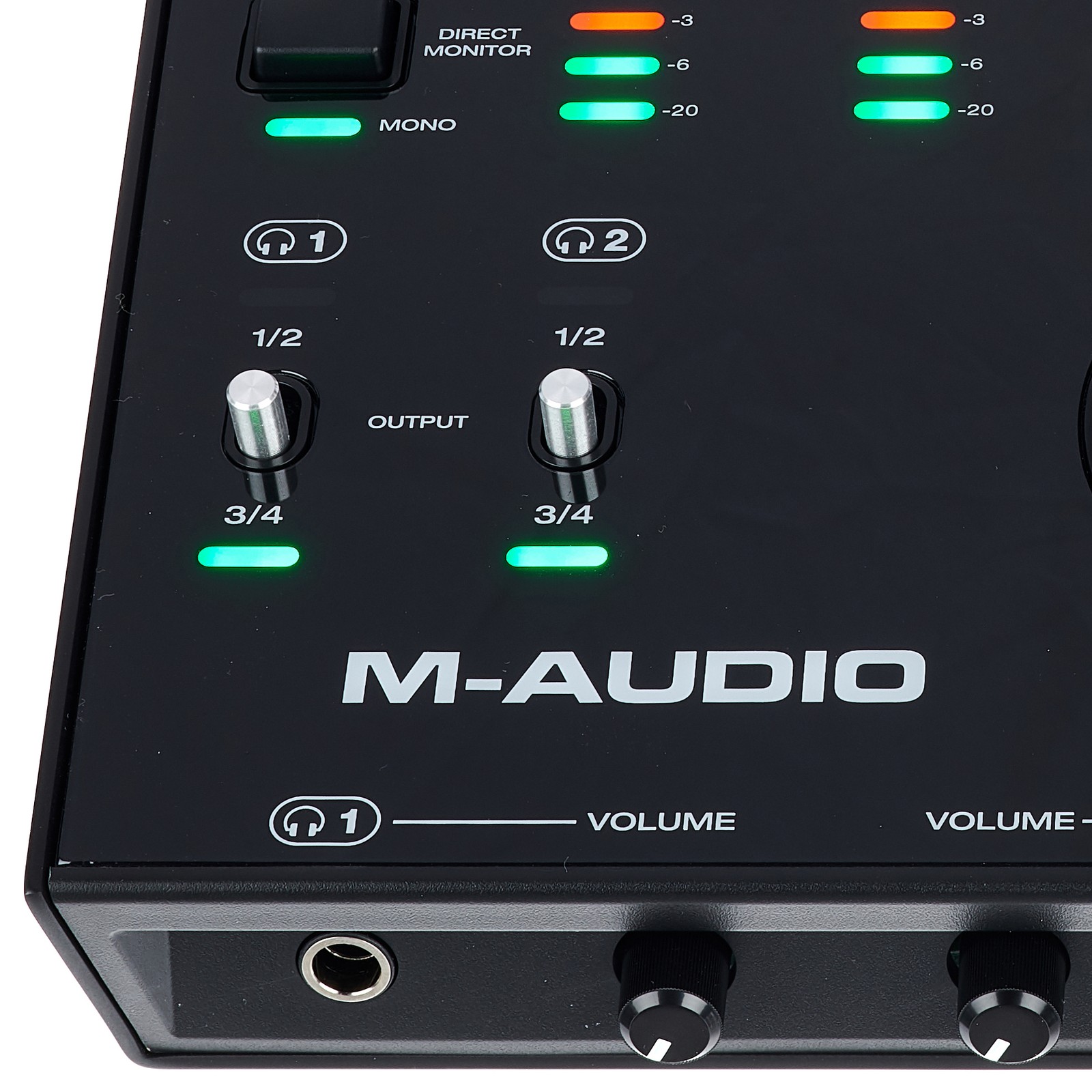

Several instruments or vocalists can be recorded at the same time thanks to the M-Audio AIR 192|14's flexible inputs and outputs, while specially developed Crystal Preamps ensure low-noise recordings. The VU LEDs offer a visual representation of the current level in a range between -20 and 0dB. The volume for both headphone outputs can be adjusted independently. Users can also switch between the monitor mix and output 3/4, with the device's low latency a real plus here. The Monitor Mix control enables users to blend between the direct signal of the M-Audio Air 192|14 and the signal from the DAW of the connected computer. The large central volume knob is rubberised to ensure a slip-resistant operation when the volume needs to be adjusted fast.
)
