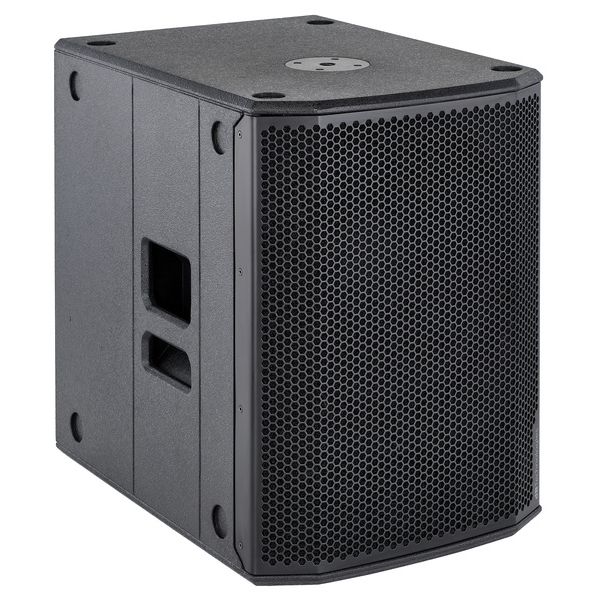

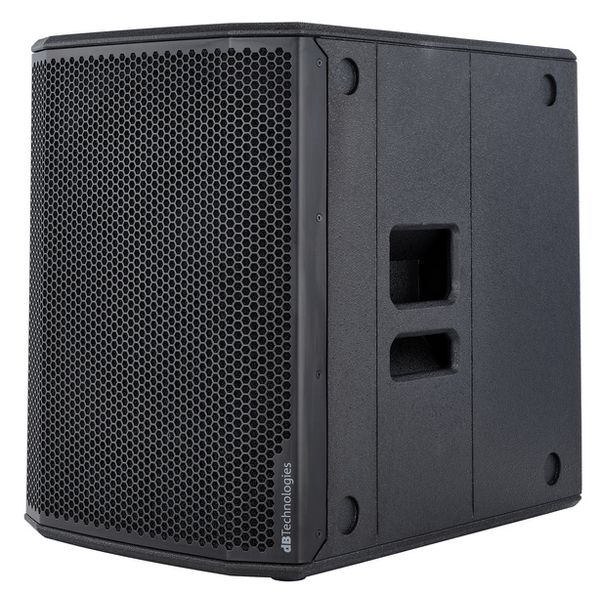

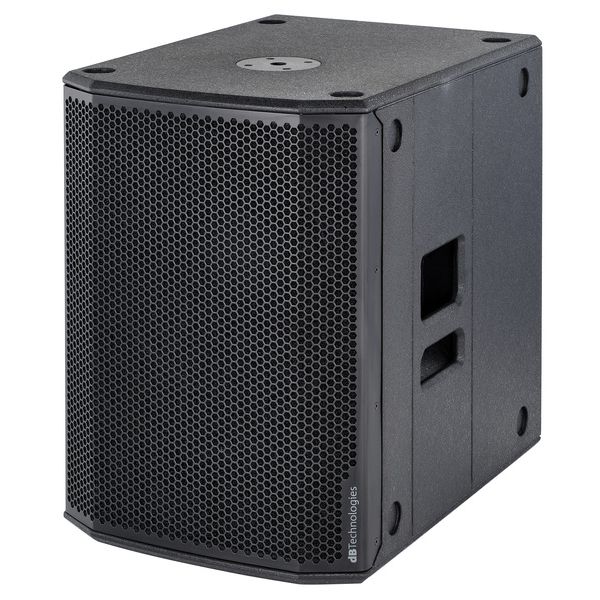

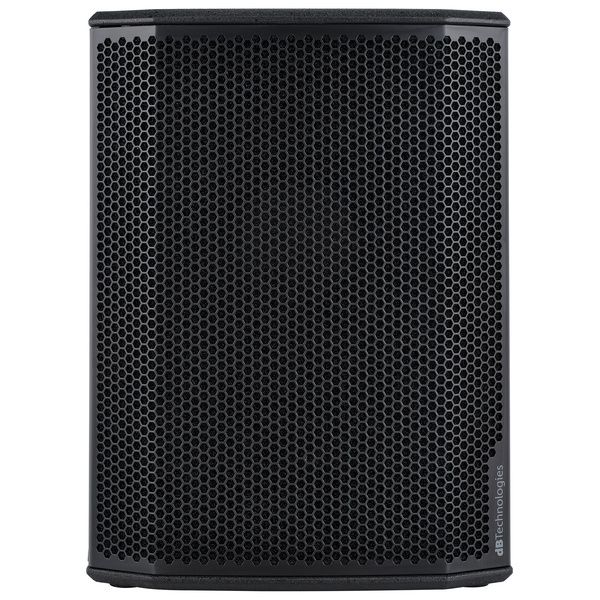

dB Technologies Sub 615

Start 360°

Actieve subwoofer

1 x 15" bass reflex subwoofer
Vermogen: 600 W RMS, 1200 W peak (class D digipack)
Frequentiebereik: 42 - 142 Hz
Maximum niveau: 131 dB
2 XLR ingangen
2 XLR uitgangen
56-bit DSP met 2 presets
Stereo crossover
Dynamische limiter

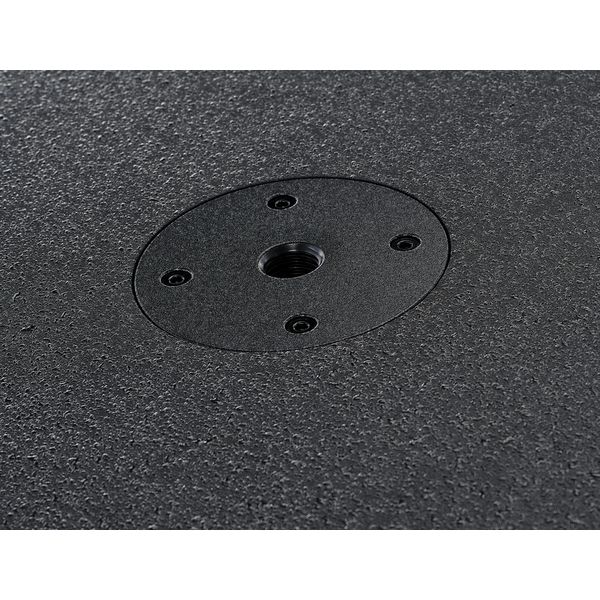

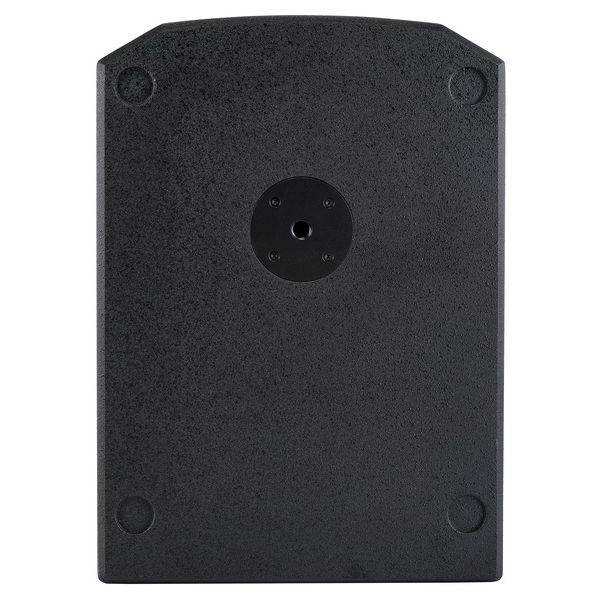

M20 statiefflens
Afmetingen: 430 x 580 x 600 mm
Gewicht: 25,5 kg
Optionele bijpassende cover: art. 427721 (niet inbegrepen)

30 dagen Money-back garantie

Drie jaar Thomann garantie

Leverbaar sinds Februari 2017
artikelnummer 408633
verkoopseenheid 1 stuk
Power (Manufacturers Specs) 600 W
Number of Bass Woofers 1
Bass Woofer in Inch 15"
Colour Black
Width 600 mm
Height 430 mm
Depth 580 mm
Weight 25,5 kg
Wheels No
Stand Flange M20
Multi Channel Power Amp No
Remote Control No
RMS Power 600 W
Sound Pressure in dB 131 dB
Housing Material Wood
Construction Bassreflex
Input Connector XLR
Output Connector XLR
X-Over Connector XLR
High Cut Adjustable
Frequency Range (-10dB) from 42 Hz
Frequency Range (-10dB) to 142 Hz

Productvariaties

dB Technologies Sub 615

dB Technologies Sub 615 Actieve subwoofer * 1 x 15" bass reflex subwoofer * Vermogen: 600 W RMS, 1200 W peak (class D di...

€ 629

naar het product

dB Technologies Sub 618

dB Technologies Sub 618 Actieve Subwoofer * 1 x 18" Bassreflex-Subwoofer * Vermogen: 600 W RMS, 1200 W peak (Class D dig...

€ 777

naar het product

102

dB Technologies SUB 612

dB Technologies SUB 612 Actieve Subwoofer * Uitgerust met: 12"-woofer en 2,5"-spreekspoel * Vermogen: 600 watt RMS / 120...

€ 455

naar het product

dB Technologies Sub 915

dB Technologies Sub 915 Actieve basreflex-subwoofer * Uitrusting: 15" luidspreker met 4" spreekspoel * Vermogen: 900 W /...

€ 1.149

naar het product

dB Technologies Sub 918

dB Technologies Sub 918 Actieve basreflex-subwoofer * Uitrusting: 18" luidspreker met 4" coil * Vermogen: 900 W/RMS, 180...

€ 1.459

naar het product

€ 629

Alle prijzen incl. btw

Best seller rang

in actieve basboxen

Bundels & aanbiedingen

dB Technologies B-Hype 10 Bundle I

€ 1.098

dB Technologies B-Hype 12 Bundle I

€ 1.198

dB Technologies B-Hype 10 Bundle II

€ 1.725

dB Technologies B-Hype 12 Bundle II

€ 1.815

Italo-bass

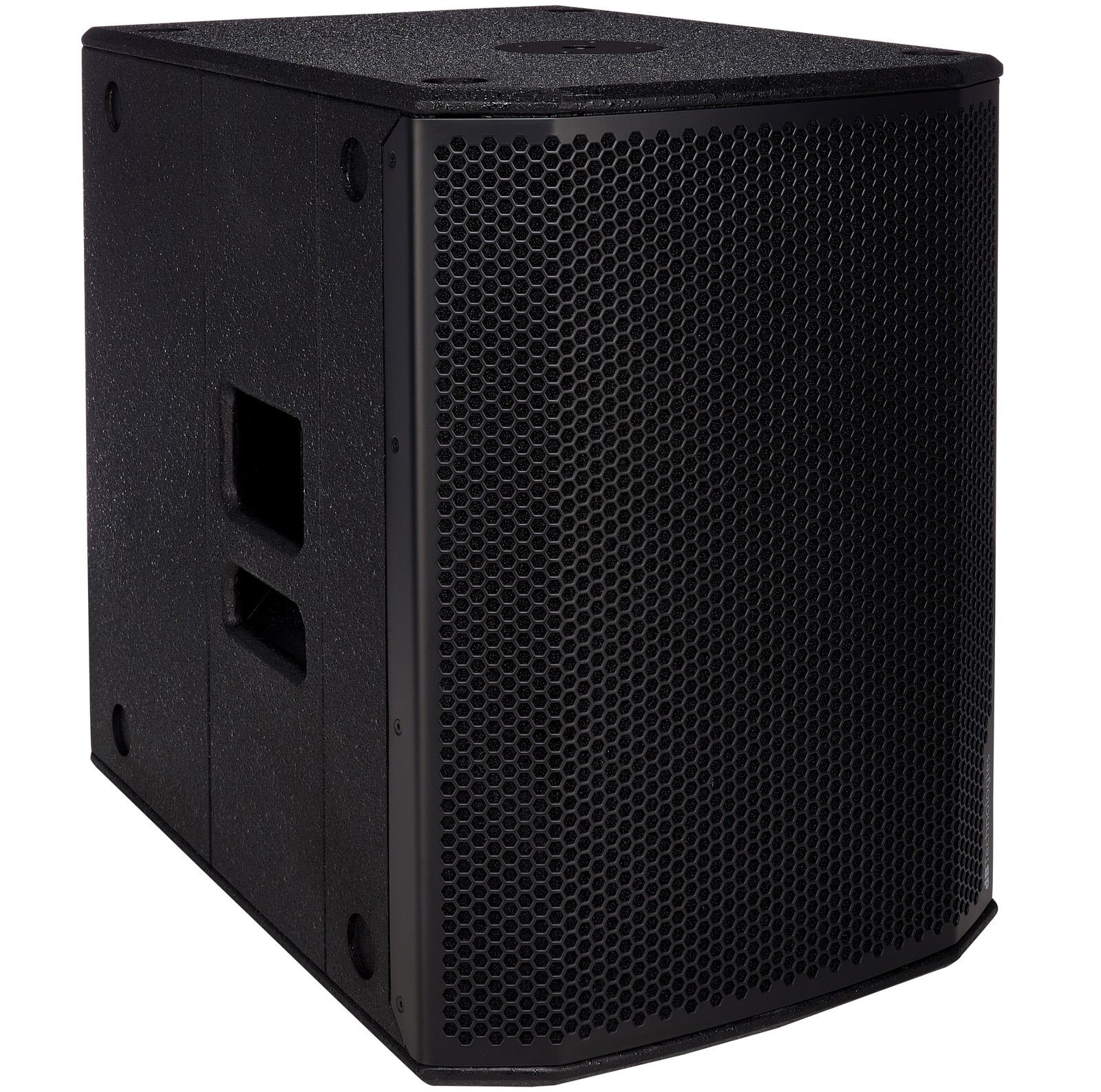

The dB Technologies Sub 612 is a traditional bass reflex subwoofer, with a 15" driver powered by an active module that is equipped with a Class D power amplifier. With a peak power output of 1,200W (600W RMS), the Sub 615 will really make the ground shake while still retaining an incredibly clean low end - even when it's turned right up, thanks to a 56-bit DSP that manages the subwoofer's frequencies, and the RMS, peak, and thermal limiters. For all its power, the Sub 615 is unusually light for an active subwoofer, weighing only 25.5kg (a touch over 56lbs). The integrated active module has two inputs, making the Sub 615 an ideal basis for a 2.1 stereo setup (i.e. one mono bass and two top units in stereo mode). The enclosure is made of high-quality composite wood with a black textured finish and also has an M20 spacer rod mount.

The right stuff

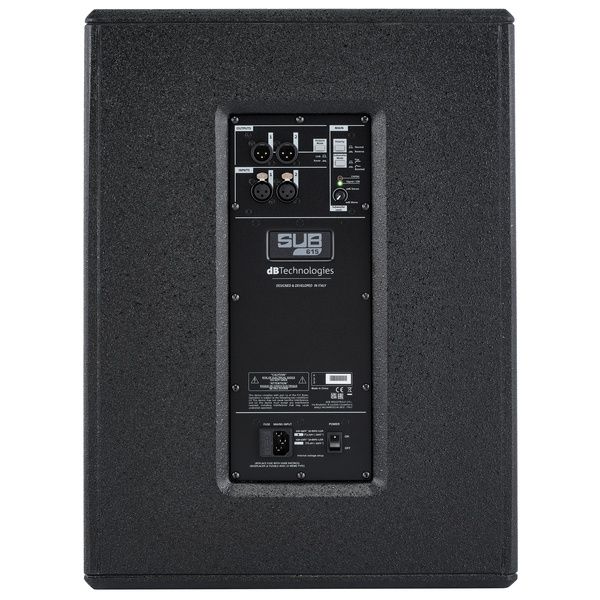

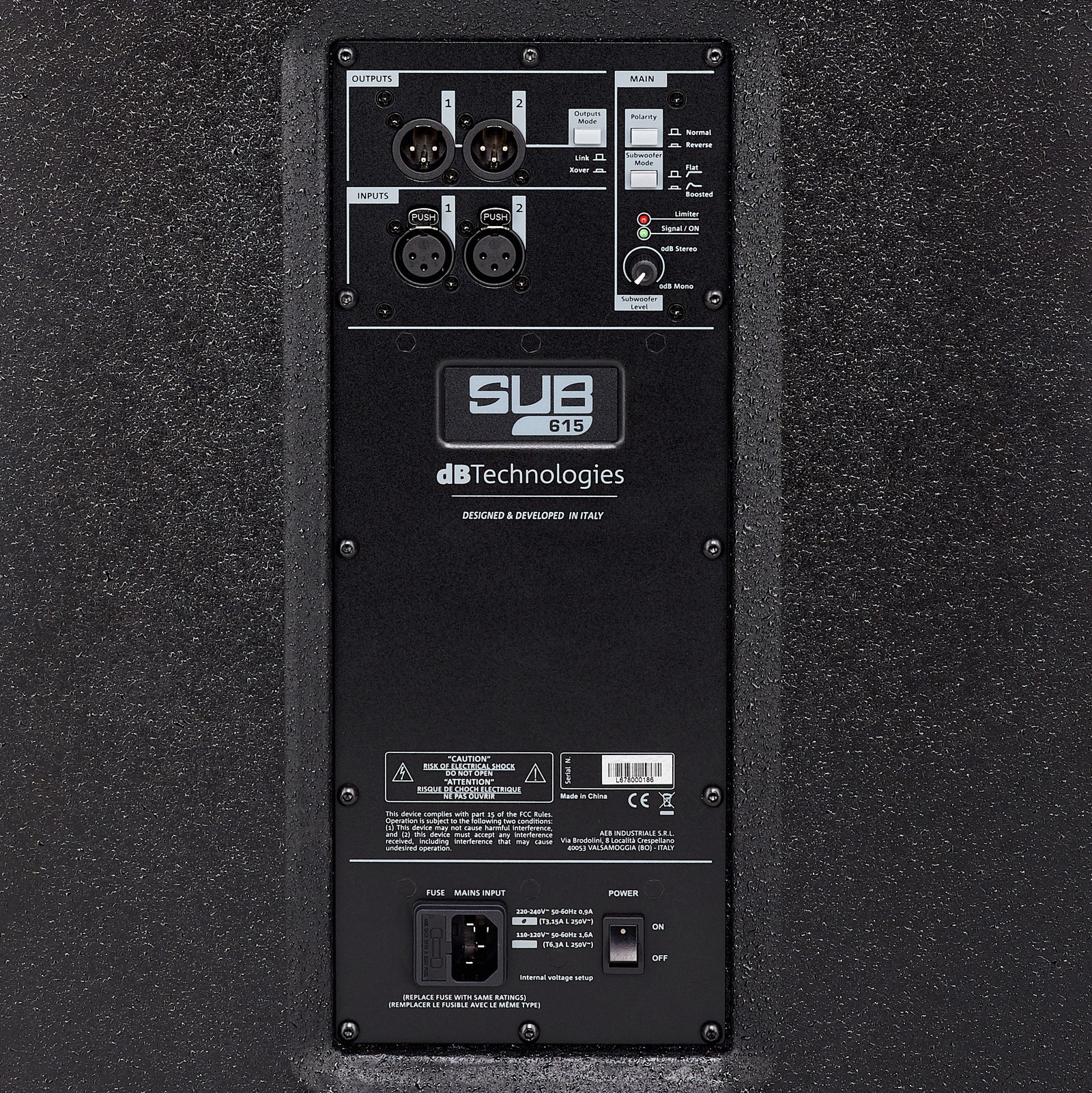

Thanks to its active module, the dB Technologies Sub 615 is immensely flexible, and can easily and effortlessly be used with tops from other manufacturers. Key here is the Sub 615's built-in crossover, which can pass on the input signal either unprocessed or with an activated lowcut filter if desired. The active module is also capable of reversing the polarity, should the device's positioning negatively affect the sound quality in any way. In addition, there is a bass boost that can be activated at the touch of a button if the occasion calls for some extra low end. A pair of LEDs – "Signal" and "Limiter" – indicate when a signal is present (green LED) and when the level limit has been reached (red LED). As is usual at this price point, a standard IEC socket provides the mains supply.

Compact and versatile

This compact all-rounder is easy to transport, thanks both to its dimensions (430 x 580 x 600mm) and its modest weight. With its flexible connection options, the dB Technologies Sub 615 can be combined with a top (for a mono stack) or two satellites (stereo). For smaller setups or the more restrained music genres, one Sub 615 will provide more than enough bass. For gigs with a full band or DJ events, on the other hand, we'd be quick to recommend two Sub 615s. The unit's controls are accessible and pretty streamlined: A control knob for gain and three pushbuttons will have even less experienced users achieving their desired results quickly. With its operating frequency range of 41–124Hz, the dB Technologies Sub 615 is suitable for many styles of music. Practically, the device offers two fundamentally different bass sound settings, allowing users to switch between "flat" and "bass boost" at the flick of a switch.

About dB Technologies

In the mid-90s, dBTechnologies was established as a wholly owned subsidiary of A.E.B. Industriale s.r.l.. Since then, the company has established itself as one of the world's leading suppliers of professional sound systems. Today, dBTechnologies is present in more than 100 countries with its own sales offices or representing distributors. In the mid-2000s dBTechnologies switched to digital amplifier technology on its own initiative and as one of the first manufacturers in the industry, and can look back on more than 10 years of experience in the development of digital power amplifiers and their environments, including power supply and Digital Signal Processing. Their current catalogue includes active and passive loudspeakers, power amplifiers, and electronics as well as wireless systems for a wide range of applications from musicians and DJs to event technology service providers and permanent installations.

Designed for everyday use

The dB Technologies Sub 615 can be set up quickly, and its relatively small footprint means it will fit into any club or rehearsal room. It's so easy to use: To get started, the user simply connects the mixer's sum outputs to the Sub 615's XLR inputs. Active tops, such as the dB Technologies Opera 10, can be docked via the amp module's link-out XLR outputs. All that then remains is to plug in the power supply, and it's "go" time! The dB Technologies Sub 615 makes for a strong foundation on which to build a classic satellite PA (i.e. subwoofer -> distance rod -> top) or a 2.1 system (one bass and two tops). All in all, a solid basis for a super-compact PA that delivers quality results fast, not least thanks to its intuitive usability.
